Product Description

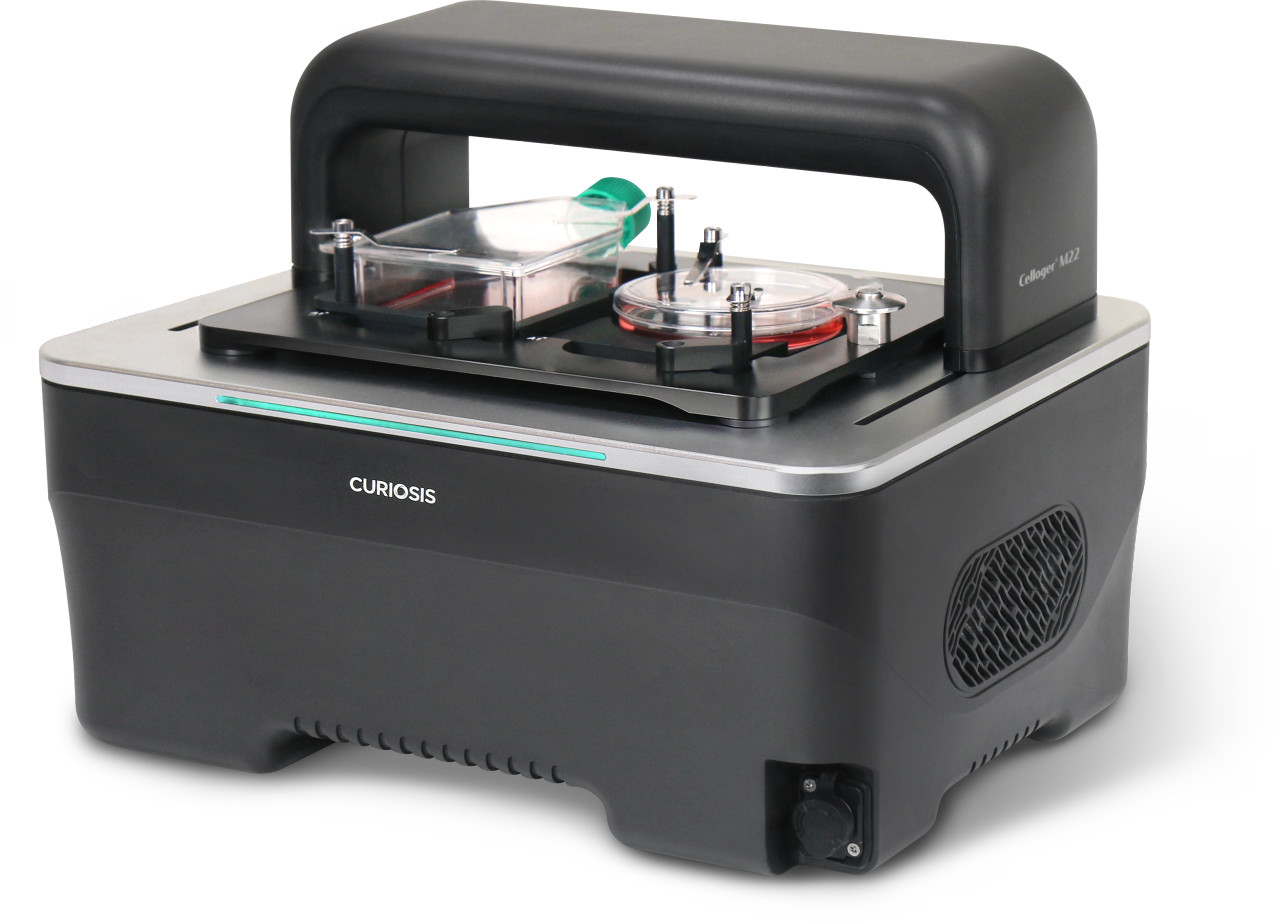

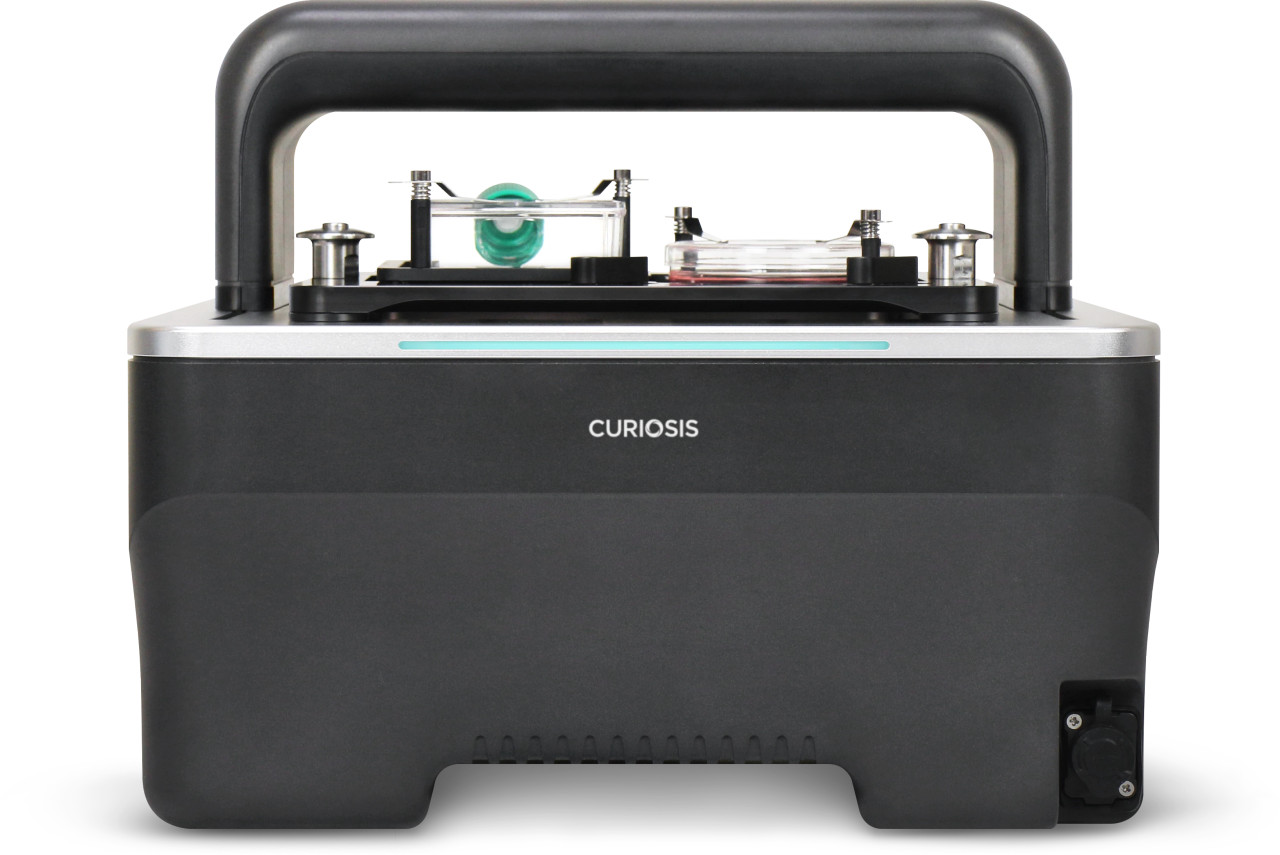

Celloger® M22
- Dual-vessel live cell imaging system
- Celloger® M22 is a dual-vessel live cell imaging system that enables simultaneous monitoring of two culture vessels inside the incubator.
- By capturing both vessels in parallel with synchronized illumination, Celloger® M22 ensures consistent imaging conditions and minimizes variability during long-term observation.
- This configuration supports a wide range of experimental workflows, including control versus treatment studies, dose comparisons, and condition optimization, within a single, integrated imaging system.
Features
Dual-vessel parallel imaging
- Synchronized illumination for consistent imaging

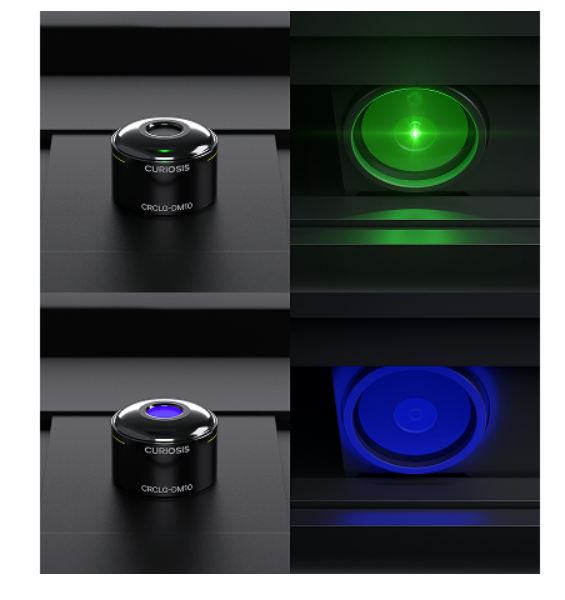

- User-interchangeable objective lens (4× / 10× / 20×)
- Temperature-stable operation
- Dual fluorescence & brightfield imaging
- Incubator-compatible design
 |
Dual-Vessel Parallel ImagingCamera and light source move together to deliver consistent brightness and resolution across every position—ideal for precise time-lapse imaging. |

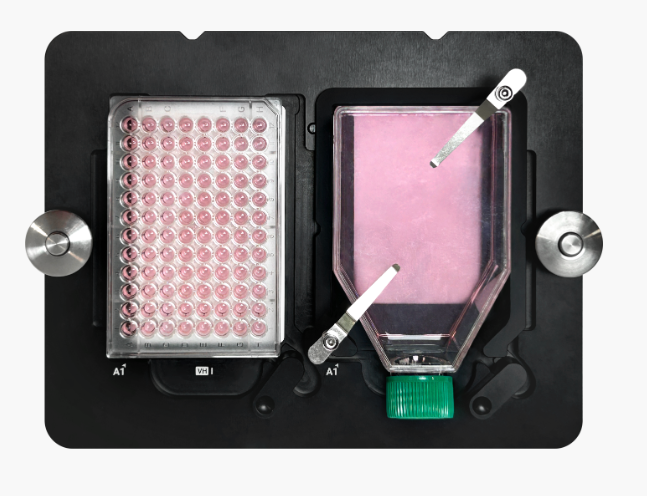

Synchronized Illumination SystemObserve two culture vessels simultaneously within a single, synchronized imaging system. Celloger® M22 enables parallel imaging of two vessels under stable incubator conditions, supporting both identical and independent experimental setups. |
|
 |

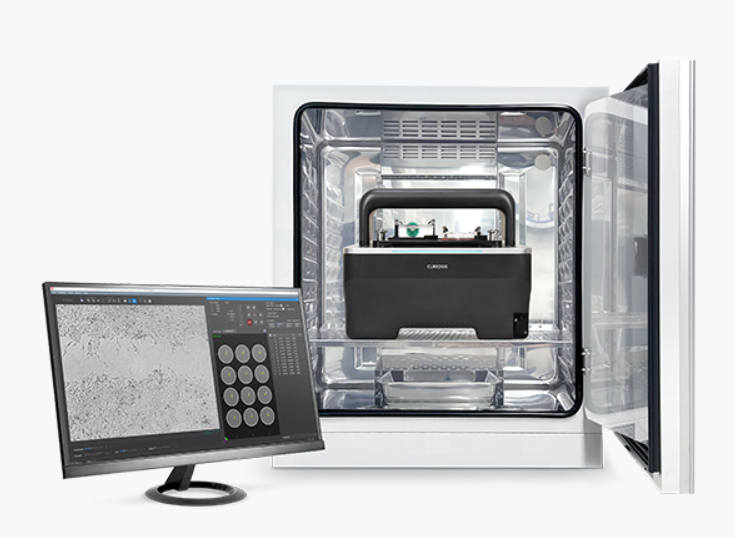

Real-Time Monitoring in IncubatorsObserve cell dynamics directly inside the incubator with single-cable connectivity, ensuring stable long-term experiments without disturbing culture conditions. |
Specification
| Imaging modes | Brightfield, 2 fluorescence channels (Green & Red) |
|---|---|
| Objectives | 4× / 10× / 20× (user-interchangeable lenses) |
| Fluorescence modes (customizable) | Green (EX : 470/40, EM: 540/50) Red (EX: 562/40, EM: 641/75) |
| Stage movement | Fully motorized XYZ (camera moving type) |
| Image sensor | High sensitivity 5.0 MP CMOS |
| Analysis methods | Single/multicolor, stitching, Z-stacking, time-lapse, real-time recording |
| Focusing | Auto focusing |
| Culture vessels | Well plate up to 96-well, flask, dish, slide |
| Software | Scan App (acquisition), Analysis App (analysis) |
| File export format | TIFF, AVI (JPEG, PNG) |
| Operating environment | 10~40℃, 20~95% humidity |
| Power supply | 100-240V, ~50/60Hz |
| PC requirements (O/S required) |
Windows 10 and above |
| Incubator specification | Above 170 L (recommended) |
| Dimensions (mm) | W:380 D:303 H:313 |
| Weight | Approx. 14.44kg (excluded vessel holder) |
