Product Description
Milenia Biotec HybriDetect (MGHD 1)
Universal Lateral Flow Development Kit
The Milenia Biotec HybriDetect (MGHD 1) is a versatile, ready-to-use universal test strip (dipstick) based on lateral flow technology using gold nanoparticles. Designed for researchers who need to develop rapid, sensitive, and cost-effective test methods, this "open platform" allows for the qualitative or semi-quantitative detection of a wide variety of analytes without the need for expensive equipment. The kit comes complete with 100 dipsticks and the necessary assay buffer, suitable for storage between 2°C and 8°C.
Versatile Detection Mechanism
The HybriDetect system relies on a universal detection principle: the interaction between Biotin and Streptavidin (capture) and the recognition of FITC/FAM labels by specific antibodies on gold particles. This dual-labeling strategy (Biotin + FITC/FAM) enables the user to adapt the dipstick for various molecular targets.
1. Genomic Product Detection (DNA/RNA)

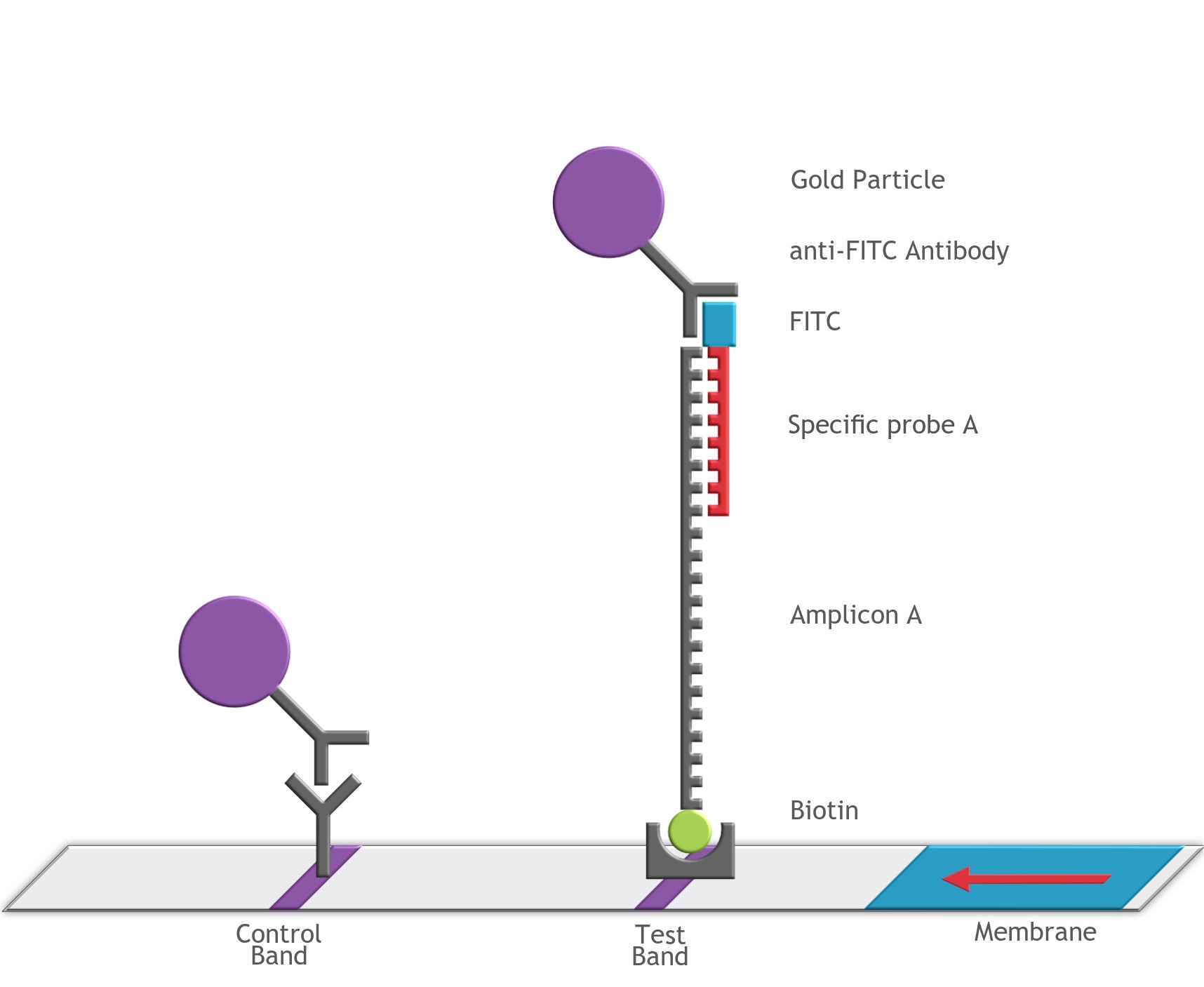

HybriDetect is widely used in molecular biology for the rapid analysis of gene amplification products (PCR, LAMP, RPA, CRISPR-Cas). As illustrated below, the specific probe (labeled with FITC) hybridizes with the Amplicon (labeled with Biotin). This complex is then captured by the gold particle via the anti-FITC antibody and immobilized at the Test Band by the Biotin-Streptavidin interaction, creating a visible signal. This method replaces time-consuming agarose gels.
2. Protein and Antibody Detection

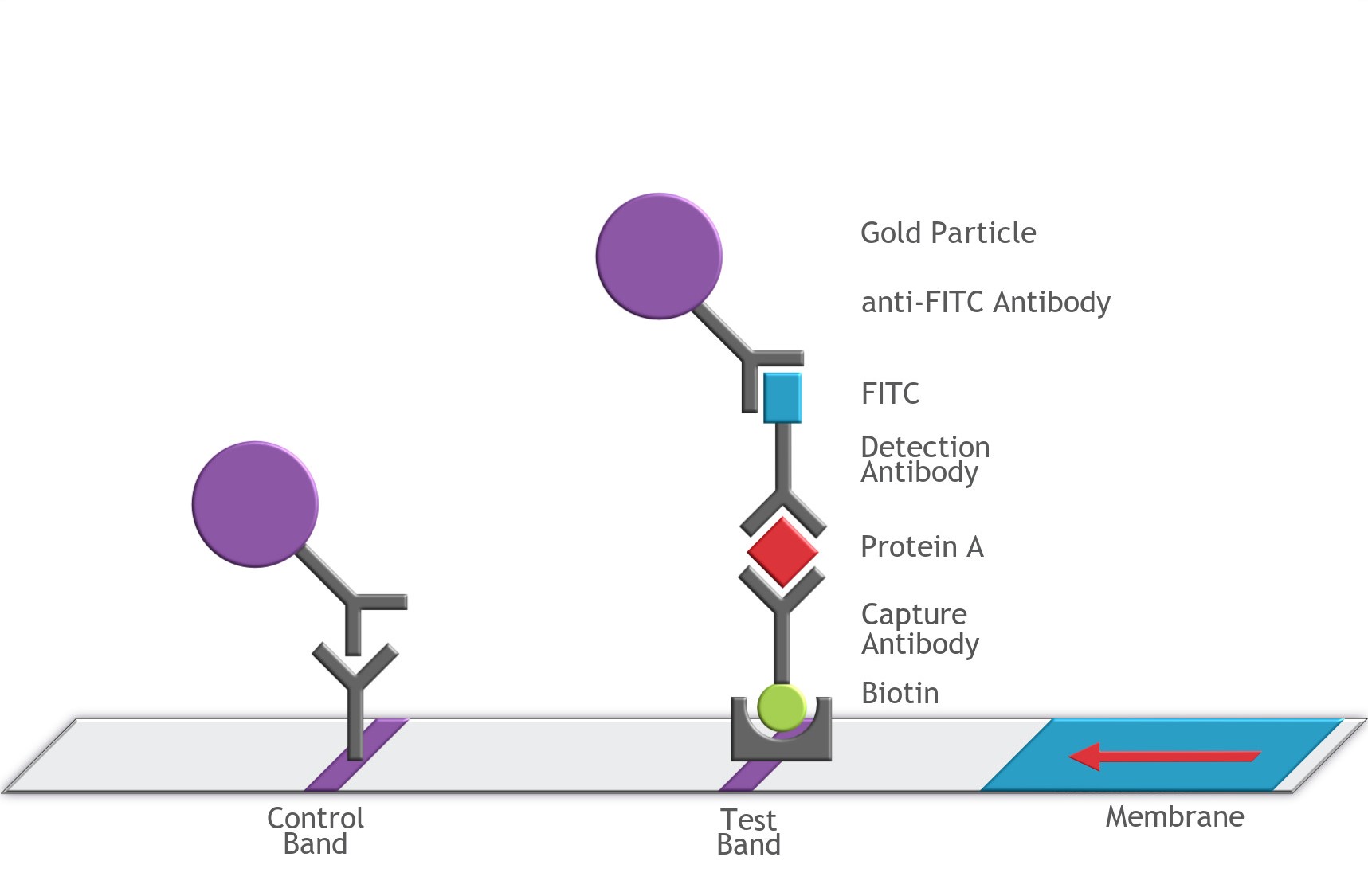

Beyond nucleic acids, the platform is ideal for developing immunoassays. For protein detection, a "sandwich" complex is formed involving a Capture Antibody (Biotinylated) and a Detection Antibody (FITC-labeled) targeting the protein of interest.

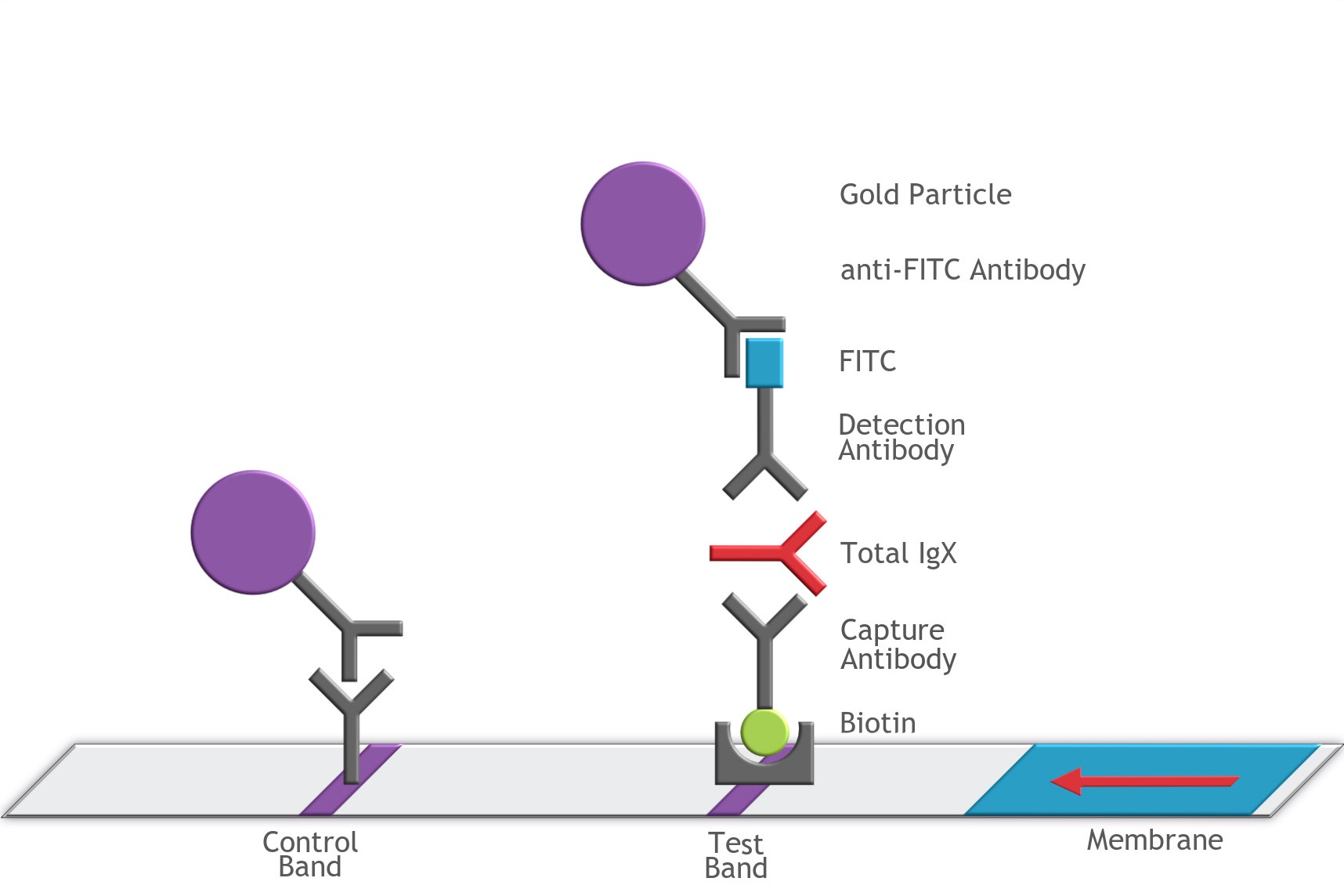

Similarly, the system can be configured to detect specific antibodies (e.g., Total IgX) within a sample, offering a flexible tool for serological assay development.
Key Features
- Universal Applicability: Compatible with PCR, RPA, LAMP, CRISPR-Cas, and Immunoassays.
- High Sensitivity: Detects small quantities of amplicon or protein (approx. 5 pg DNA).
- Rapid Results: Readout available in 5 to 30 minutes.
- Simple Operation: Dipstick format requires no heavy machinery or complex training.
- Safe Alternative: Eliminates the need for Ethidium Bromide used in gel electrophoresis.
Technical Specifications
| Parameter | Specification |
|---|---|
| Catalog Number | MGHD 1 |
| Format | Universal Lateral Flow Dipsticks (Single Test Line) |
| Pack Size | 100 Tests (2 vials of 50 strips) |
| Labels Required | Biotin and FITC (or FAM) |
| Readout Time | 5 – 30 minutes |
| Storage | 2°C to 8°C |
| Kit Contents | 100 Dipsticks, Assay Buffer |
