Product Description

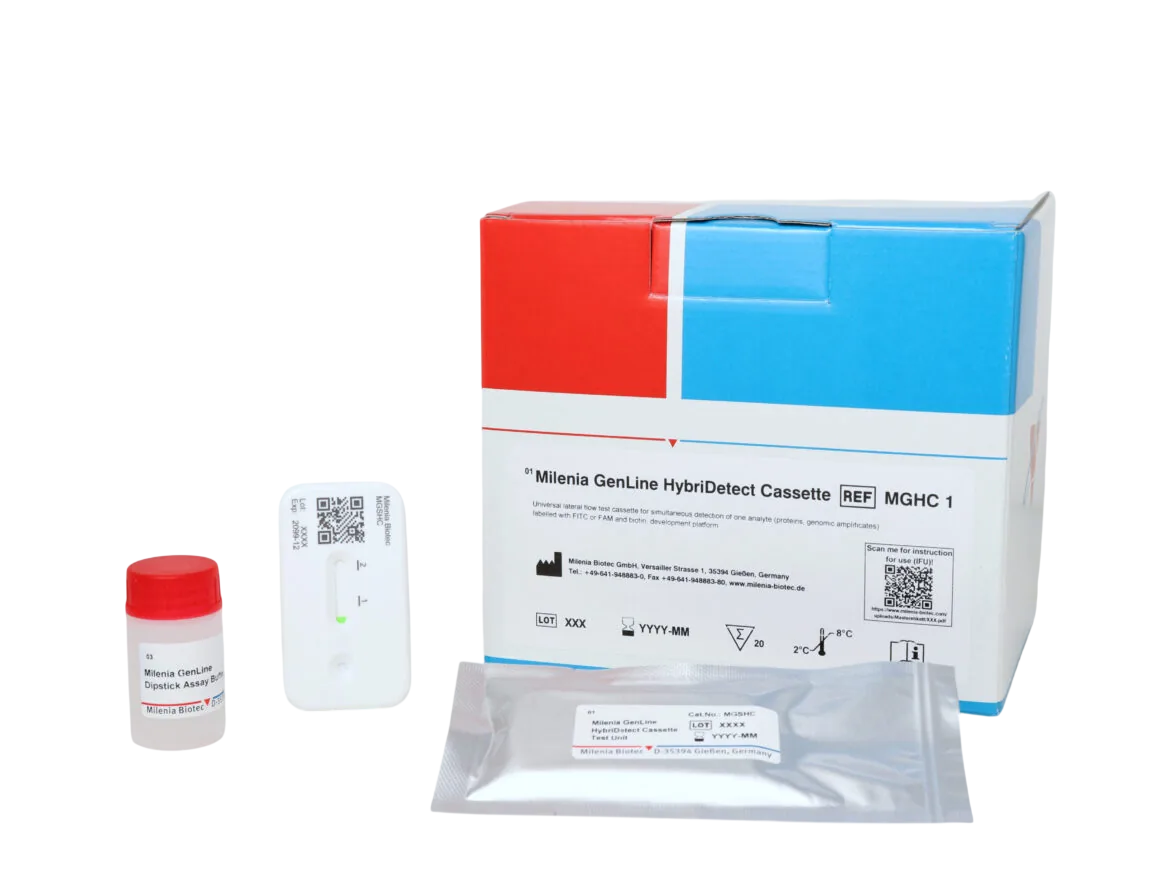

Milenia Biotec HybriDetect Cassette (MGHC 1)
Universal Lateral Flow Development Platform
The Milenia Biotec HybriDetect Cassette (MGHC 1) offers the same powerful, universal detection technology as the HybriDetect dipsticks but housed in a convenient, ready-to-use cassette format. This "open platform" is designed for the qualitative or semi-quantitative detection of any analyte (DNA, RNA, protein, antibody) labeled with FITC (or FAM) and Biotin. The plastic housing simplifies handling, standardizes sample application, and protects the membrane, making it an excellent choice for point-of-care test development or field applications.
Universal Detection Principle
Just like the dipstick version, the Cassette utilizes gold nanoparticles conjugated with anti-FITC antibodies and a test line coated with Streptavidin. A positive result is generated only when the analyte forms a bridge between the gold particle (via FITC/FAM) and the test line (via Biotin). This versatile mechanism allows for the detection of a wide variety of molecules without the need for complex equipment.
Applications in Molecular Biology
The HybriDetect Cassette is frequently used to visualize amplification products from methods like PCR, LAMP, and RPA. The cassette format is particularly user-friendly: simply pipette the sample mix into the sample well. The specific probe (FITC) and the amplicon (Biotin) migrate along the strip, creating a distinct red band if the target is present, replacing the need for time-consuming agarose gels.
Immunoassay Development
Researchers can also utilize the cassette to build rapid immunoassays. By using a biotinylated capture antibody and a FITC-labeled detection antibody, a "sandwich" assay can be performed to detect specific proteins or antibodies with high sensitivity and specificity.
Key Features
- Cassette Format: Enclosed housing protects the strip and allows for easy sample loading via pipetting.
- Universal System: Detects any dual-labeled (Biotin + FITC/FAM) molecule.
- Rapid Readout: Results visible in 5 – 20 minutes.
- Ideal for Field Use: Robust design suitable for point-of-need testing.
Technical Specifications
| Parameter | Specification |
|---|---|
| Catalog Number | MGHC 1 |
| Format | Lateral Flow Test Cassette |
| Pack Size | 20 Tests |
