Product Description

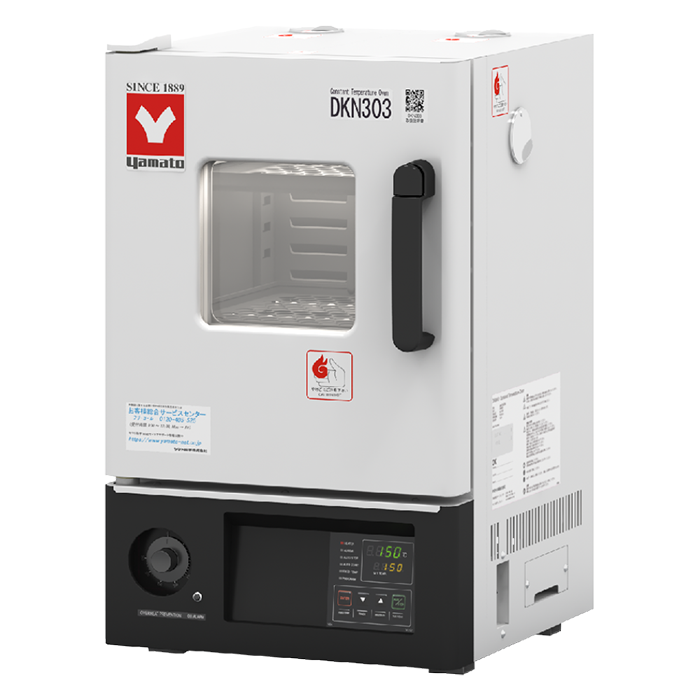

Yamato DKN303 Series
Programmable Forced Convection Ovens (115V / 220V)
The Yamato DKN303 Series comprises high-performance forced convection ovens designed for versatile laboratory applications, including drying, sterilization, and constant temperature testing. Available in two voltage configurations (115V and 220V), these units feature a compact 27-liter chamber and operate from Room Temperature +10°C up to 260°C with exceptional stability. The series is defined by its ease of use, featuring an angled, intuitive control panel and a PID microprocessor that supports advanced programming functions such as fixed temperature, auto-start, auto-stop, and 30-step program patterns.
- Forced Convection: Powerful circulation ensures rapid heat-up and uniform temperature distribution (±0.4°C stability).
- Dual Voltage Options: Available in a standard 115V model (with plug) and a 220V model (with round terminal) to suit different facility power standards.
- Advanced Safety: Includes self-diagnostic functions, an overcurrent leakage breaker, and an independent overheat prevention device.
- Programmable Control: Offers flexible operation modes including Quick Auto Stop and up to 30 program steps.
- Compact Design: A 300x300x300 mm interior maximizes space efficiency for personal or small-batch use.
Technical Specifications
| Parameter | DKN-303-115V | DKN-303-220V |
|---|---|---|
| Working Temperature Range | Room Temp. +10°C to 260°C | |
| Chamber Volume | 27 Liters / (0.95 ft³) | |
| Temp. Fluctuation | ±0.4°C (at 260°C) | |
| Temp. Gradient | 9°C (at 260°C) | |
| Internal Dimensions (WxDxH) | 300 x 300 x 300 mm | |
| External Dimensions (WxDxH) | 410 x 450 x 670 mm | |
| Power Supply | 115V, 7.5A (50/60Hz) | 220V, 4A (50/60Hz) |
| Connection Type | With Plug | No Plug (Round Terminal) |
| Heater Power | 0.8 kW | |
| Weight | ~35 kg | |
| Shelves Included | 2 pieces | |
