Product Description

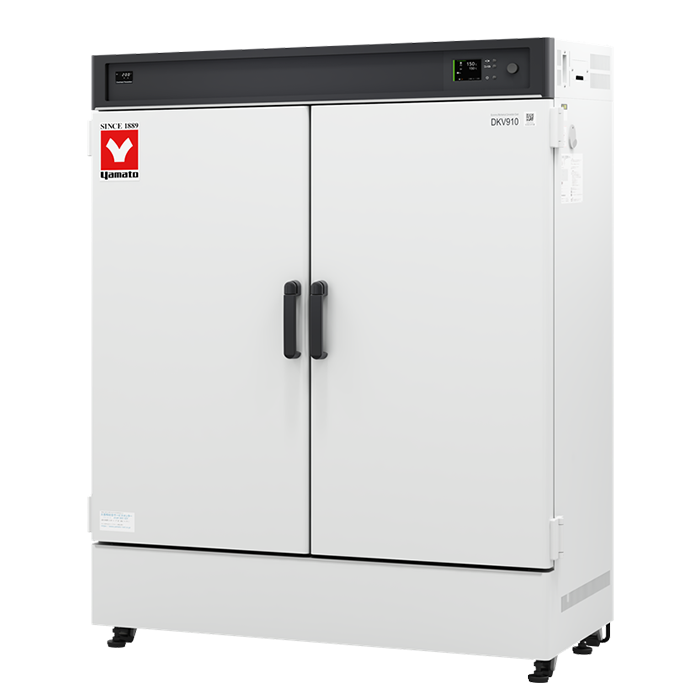

Yamato DKV Series
Programmable Forced Convection Ovens (90L - 545L)
The Yamato DKV Series sets a new standard for programmable forced convection ovens, combining precision performance with an industry-leading 3.5-inch color LCD touch controller (VSD-1). Designed for a wide range of laboratory and industrial applications, this series offers exceptional temperature uniformity and stability across capacities ranging from 90L to 545L. The forced air circulation system ensures rapid recovery and consistent heating from Room Temperature +10°C up to 260°C (220°C for DKV910), making it ideal for baking, drying, curing, and sterilization.
User convenience is prioritized with features like the innovative "click-stop" door hinges (holding at 30° and 120°) and a large, easy-to-grip handle. The advanced PID controller simplifies complex workflows with operating modes including Fixed Temperature, Auto-Start, Auto-Stop, and a 30-step Program mode. Safety is comprehensive, featuring self-diagnostic functions, an independent digital overheat protector, and an overcurrent leakage breaker.
- Advanced VSD-1 Controller: High-visibility 3.5" color LCD displays operating status, temperature trends, and program progress.
- Versatile Operation: Supports Fixed Temp, Quick Auto-Stop, Auto-Stop, Auto-Start, and Program (up to 30 steps, 99 patterns).
- Smart Design: Door hinges with 30°/120° click-stops for hands-free loading; built-in exhaust ports for ventilation.
- Data & Connectivity: Includes a cable port (33mm I.D.) for external sensors and options for data logging.
- Maximum Safety: Features self-diagnostics (sensor/heater error), key lock, independent overheating prevention, and hydraulic over-temperature protection.
Technical Specifications

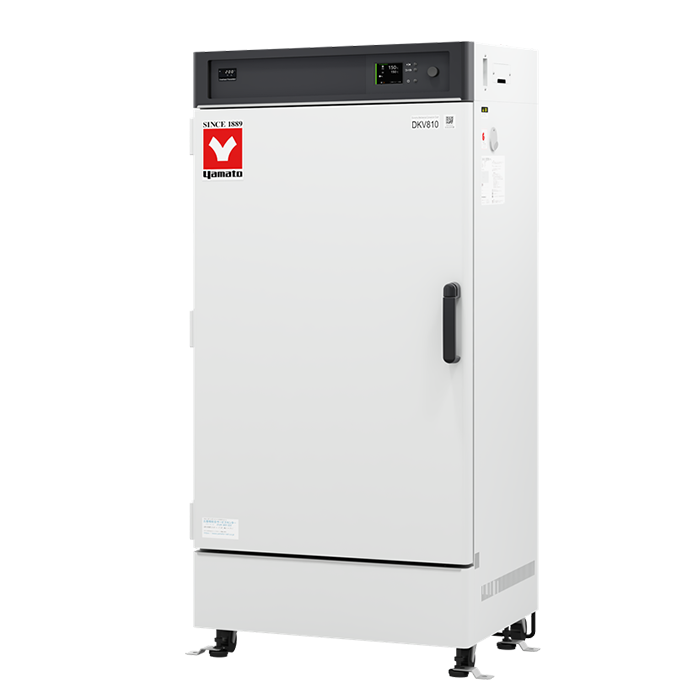

| Parameter | DKV400 / DKV410 | DKV600 / DKV610 | DKV810 | DKV910 |
|---|---|---|---|---|
| Chamber Volume | 90 Liters (3.2 ft³) | 150 Liters (5.3 ft³) | 300 Liters (10.6 ft³) | 545 Liters (19.2 ft³) |
| Operating Temp. Range | Room Temp. +10°C to 260°C | Room Temp. +10°C to 220°C | ||
| Temp. Accuracy / Gradient | ±0.6°C / 9°C | ±0.6°C / 11°C | ±0.6°C / 11°C | ±0.5°C / 11°C |
| Heat-up Time (to Max) | ~75 min | ~75 min | ~75 min | ~80 min |
| Controller | VSD-1 Type (3.5-inch Color LCD Touch Panel) with PID Control | |||
| Power Supply | DKV400: 115V, 13.5A DKV410: 220V, 7.5A |
DKV600: 115V, 13.5A DKV610: 220V, 7.5A |
220V, 12A (Single Phase) |
220V, 14.5A (Single Phase) |
| Heater Power | 1.5 kW | 1.5 kW | 2.5 kW | 3.0 kW |

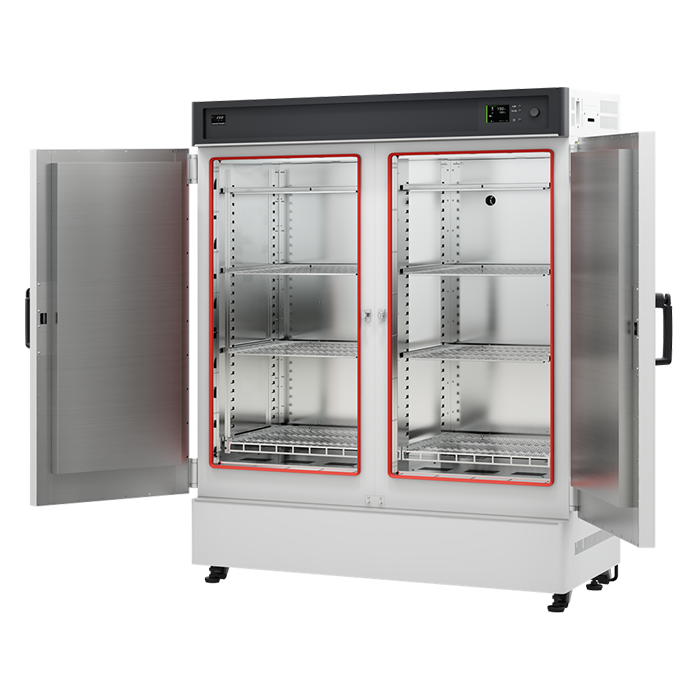

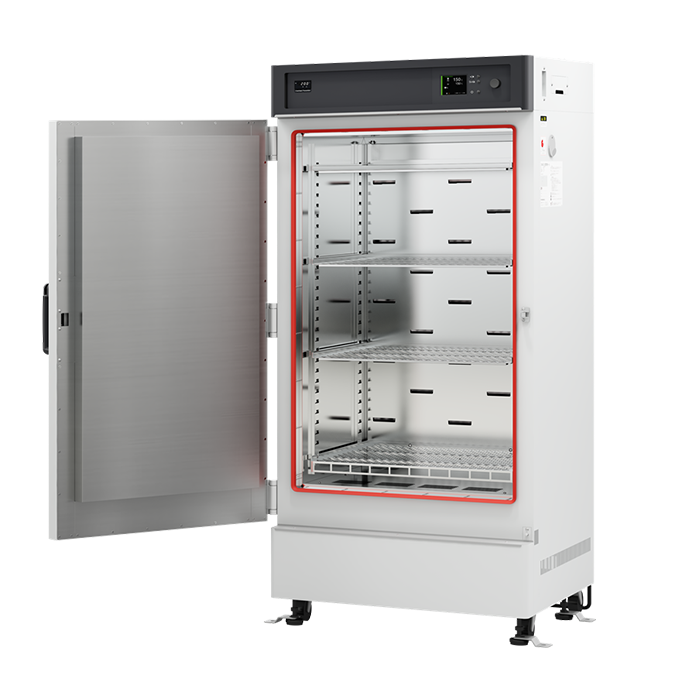

| Interior Dims (WxDxH) | 450 x 450 x 450 mm | 600 x 500 x 500 mm | 600 x 500 x 1000 mm | 1090 x 500 x 1000 mm |
| Exterior Dims (WxDxH) | 580 x 635 x 830 mm | 730 x 685 x 880 mm | 730 x 685 x 1610 mm | 1220 x 685 x 1610 mm |
| Shelves (Included/Max) | 2 / 11 | 2 / 13 | 3 / 29 | 4 / 29 |
| Weight | ~60 kg | ~75 kg | ~120 kg | ~195 kg |
| Safety Devices | Self-diagnostic functions (Sensor/Heater/SSR/Fan/Memory), Independent Overheat Prevention, Key Lock, Electric Leakage Breaker, Door Switch | |||
