Yamato MBS Series - Multi-Beads Shocker Tissue Homogenizer Ambient / Cooled (Up to 24 Samples)

Product Description

Yamato MBS Series
Multi-Beads Shocker Rapid Tissue Homogenizer

The Yamato MBS Series Multi-Beads Shocker is a premier cellular disruptor and tissue homogenizer that sets a new standard for sample preparation efficiency. Powered by proprietary 3D Figure-Eight Rotation Movement Technology, this system generates high-energy impact forces to rapidly pulverize the toughest samples—ranging from bone, muscle tissue, and plant leaves to hard materials like rocks and ceramics—in a matter of seconds. Unlike traditional homogenization methods, the MBS Series allows for the simultaneous processing of up to 24 samples (using 2ml tubes) without the need for balancing, ensuring high-throughput performance and exceptional reproducibility for DNA, RNA, and protein extraction workflows.

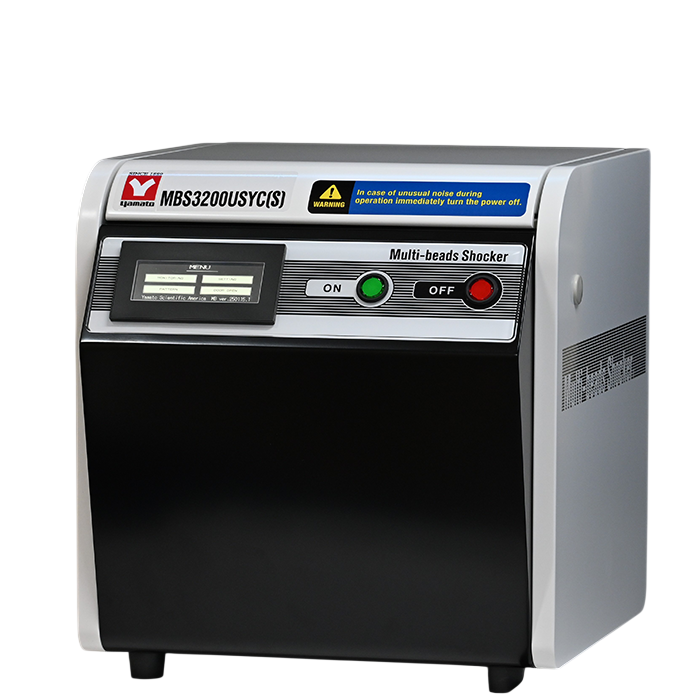

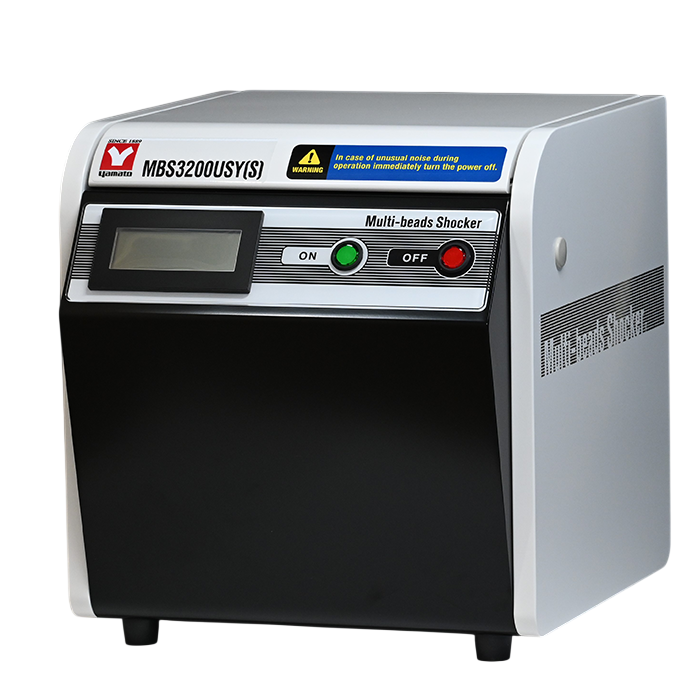

The series is available in two distinct configurations to meet diverse laboratory needs: the standard MBS3200USY(S) for ambient applications and the MBS3200USYC(S), which features advanced cooling capabilities. The cooling model is specifically engineered to protect heat-sensitive biomolecules; it can be connected to an external chiller (such as the CF-303Y/313Y) or used with liquid nitrogen for cryogenic grinding, utilizing an ultra-low nitrogen volume (0.2L per sample) to maintain sample integrity. Designed with user comfort in mind, the Multi-Beads Shocker operates at an exceptionally low noise level (≤40 dBA) and features an intuitive programmable touch panel, making it an indispensable tool for Biotechnology, Forensics, Pharmaceutical, and Material Science laboratories.

• Advanced 3D Motion: Unique figure-eight rotation maximizes bead impact for complete homogenization and higher nucleic acid recovery (up to 5X more than standard methods).
• Versatile Temperature Control: The MBS3200USYC(S) model supports room temperature, cooling via external chiller, and cryogenic freezing with Liquid Nitrogen or dry ice.
• Broad Application Range: Validated for lysis of yeast, bacteria, and viruses, as well as grinding hard environmental samples like rocks and resins.
• High-Capacity & Flexible: Accommodates various sample holders for different throughputs: 24 x 2ml, 12 x 10ml, or 6 x 50ml/100ml tubes.
• Silent & Intelligent Operation: Features a noise-dampening design (<40 dBA), 20 programmable memory slots, and intermittent operation modes for precise process control.

Technical Specifications
