Product Description

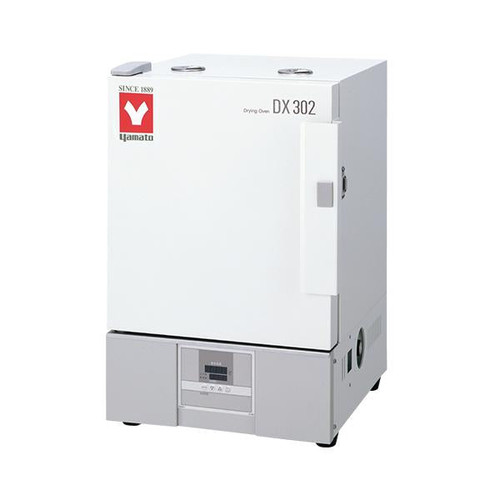

Yamato DX Series Economical Natural Convection Ovens
Standard type natural convection constant temperature drying ovens with extensive features and simple operation.
Performance and functions
- Economical and cost saving
- Easy to use and maintain
- Excellent temperature accuracy
- Digital PID controller for easy operation with options for Fixed setting, Auto Start, Quick Auto Stop and Auto Stop
- Increased safety and self-diagnostic functions
- Calibration off-set function
Safety features
- Temp sensor error, Temp input circuit error, Auto overheat prevention, measured temp error, Circuit breaker with over current protection.
| Model | DX302C DX312C |
| Circulation method | Natural convection |
| Operating temperature range | Room temp. +5°C to 300°C |
| Temperature control accuracy | ±1°C (at 300°C) |
| Temperature distribution accuracy | ±10°C (at 300°C) |
| Maximum temperature reaching time | ~45 min (Room temp. to 300°C) |
| Interior material | Stainless steel |
| Exterior material | Electro-galvanized steel sheet with melamine resin baking finish |
| Heat insulating material | Glass wool |
| Heater | Iron-chrome wire heater 0.9 kW |
| Exhaust port | 33 mm I.D. x 2 pcs. (on top) |
| Temp. controller | PID control by microprocessor |
| Temp. setting method | Digital setting by ▲▼ key |
| Temp. display method | Measurement temp. : Digital display by green LED / Setting temp. : Digital display by red LED |
| Timer | 1 min. to 99 Hrs. 59 min. and 100 Hrs. to 999 Hrs. 50 min. |
| Operation function | Fixed temperature, Quick auto stop, Auto stop, Auto start |
| Additional function | Calibration off-set, Power failure compensation function, Key lock function |
| Heater circuit control | SSR control |
| Sensor | K-thermocouple |
| Safety device | Self diagnostic functions (Temp. Sensor abnormal, Abnormal memory, Input temp. abnormal, Measured temp. abnormal, Automatic overheat prevention), Key lock function, Hydraulic independent overheat prevention device, Electric leakage breaker with over current protection |
| Internal dimensions W×D×H | 300x310x300mm |
| External dimensions W×D×H | 400x440x630mm |
| Internal capacity | 28L |
| Shelf plate with standard load | 15kg/piece |
| Shelf rest step number / pitch | 6 steps / 35mm |
| Power source 50/60Hz | AC115V 9.5A (with plug) AC220V 4.3A (no plug, round terminal) |
| Weight | ~23kg |
| Included Accessories | Stainless steel punching metal shelf plate 2pcs. / Shelf bracket 4pcs. |
