Product Description

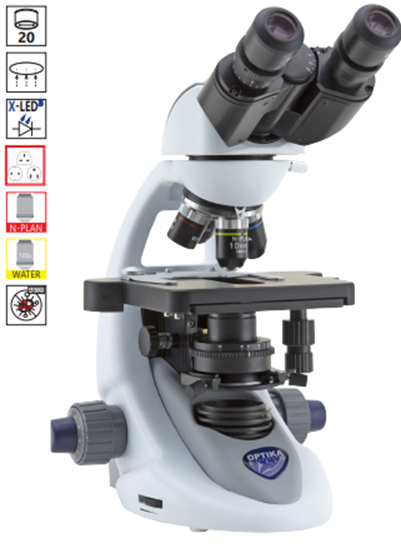

OPTIKA B-292
Binocular Laboratory Microscope
The B-290 series microscopes are the result of a perfect fusion of experience and design, developed for both educational and routine laboratory use. The OPTIKA B-292 is equipped with a binocular head and standard E-Plan objectives, making it an ideal choice for comfortable, long-term observation in applications like histology, biology, and quality control. Its powerful and uniform X-LED³ illumination system ensures crisp, clear images.
Ergonomic and Reliable Performance
Built with high-quality materials and a modern, ergonomic design, the B-292 is made to last. It features a rackless mechanical stage for safe and smooth sample movement, coaxial coarse and fine focusing for precise control, and an Abbe condenser for optimal illumination adjustment. This model represents a reliable and high-performance solution for standard laboratory needs.
|

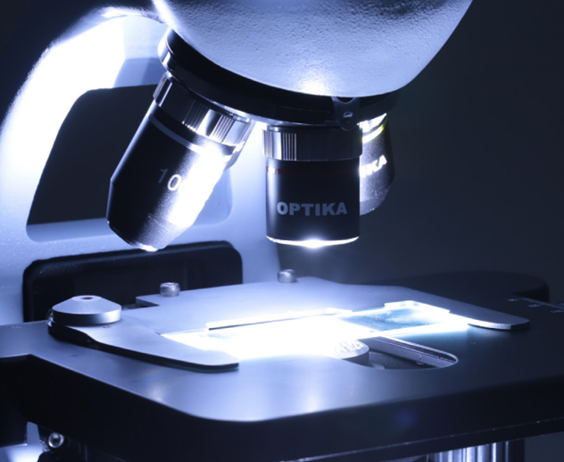

X-LED³ Exclusive Lighting System |
|
 |
||
|
OPTIKA is proud to introduce its exclusive X-LED³ lighting source. A special combination of high-efficiency LEDs and a special optical system allows OPTIKA to double the light intensity generated by a standard LED. The resulting light is comparable to the light generated by a 50W halogen lamp but with a color temperature of 6300K, representing sunlight. |
|
|||
 |
|

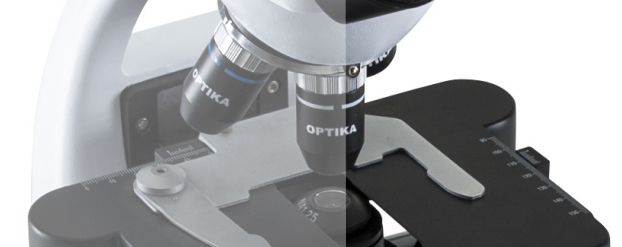

Mechanical Stage Rackless Stage for Safety and Durability The B-290 series is equipped with a modern rackless mechanical stage. This design prevents the rack from protruding from the stage, avoiding potential scratches or injuries during use. The movement is smoother, more reliable, and provides a safer working environment, especially in educational settings. |
Laboratory Grade Optics, N-PLAN & IOS N-PLAN System
OPTIKA N-PLAN objectives ensure bright, clear images with excellent flatness and compensation for chromatic aberration. IOS Infinity-corrected optical system prevents image deterioration even if other optical components are added, such as polarizers, beamsplitters and so on.
 |

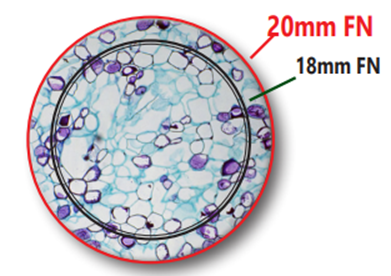

Large Specimen View (20 mm Field Number) The F.O.V. (field of view) is based on a comfortable diameter of 20 mm. This means that a wide area of the sample can be inspected and allows a natural and easy view, particularly needed in a laboratory environment. |
Clear Observation With 100x Objective
Users will enjoy B-290 Series for the clear and sharp images they can get using 100x objective with water, thanks to the extremely bright X-LED3 light source and the fully centerable Abbe condenser. Forget about the tedious lens cleaning you are used to when using 100x objective: dirt and dust will not affect your objective.
|
|
Binocular head with N-PLAN objectives, rackless stage and exclusive X-LED3 for unmatchable performance, powerful and uniform illumination. |
|
Observation mode: Brightfield |
|
|
Head: Binocular, 30° inclined and 360° rotating. Interpupillary distance 48-75 mm. |
|
|
Dioptric adjustment: On both eyepieces |
|
|
Eyepieces: WF10x/20 mm, high eye-point and secured by screw. |
|
|
Nosepiece: Quadruple revolving nosepiece, rotation on ball bearings. |
|
|
Objectives: N-PLAN 4x/0.10 N-PLAN 10x/0.25 N-PLAN 40x/0.65 N-PLAN 100x/1.25 (Oil/Water) All with anti-fungus treatment. |
|
|
Specimen stage: Double layer rackless mechanical sliding stage, 150x139 mm, 75x33 mm X-Y movement range. Vernier scale on the two axes, accuracy: 0.1 mm. |
|
|
Focusing: Coaxial coarse and fine focusing mechanism with limit stop to prevent the contact between objective and specimen. Adjustable tension of coarse focusing knob. |
|
|

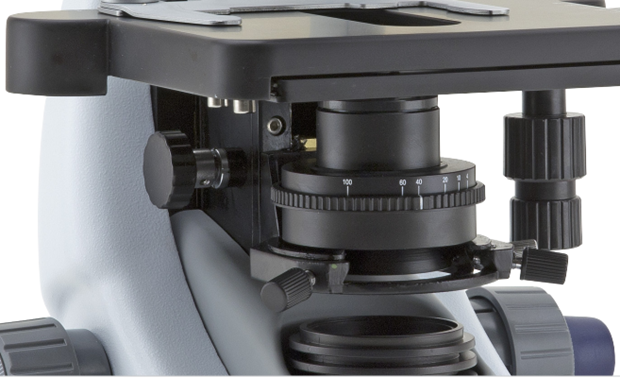

Condenser: Abbe N.A. 1.25, with objective-coded iris diaphragm, focusable and centerable. |
|
|
Illumination (Fixed Koehler type): X-LED3 with white 3.6 W LED (6,300 K) and light intensity control. Multi-plug 100-240Vac/6Vdc external power supply. |
