Product Description

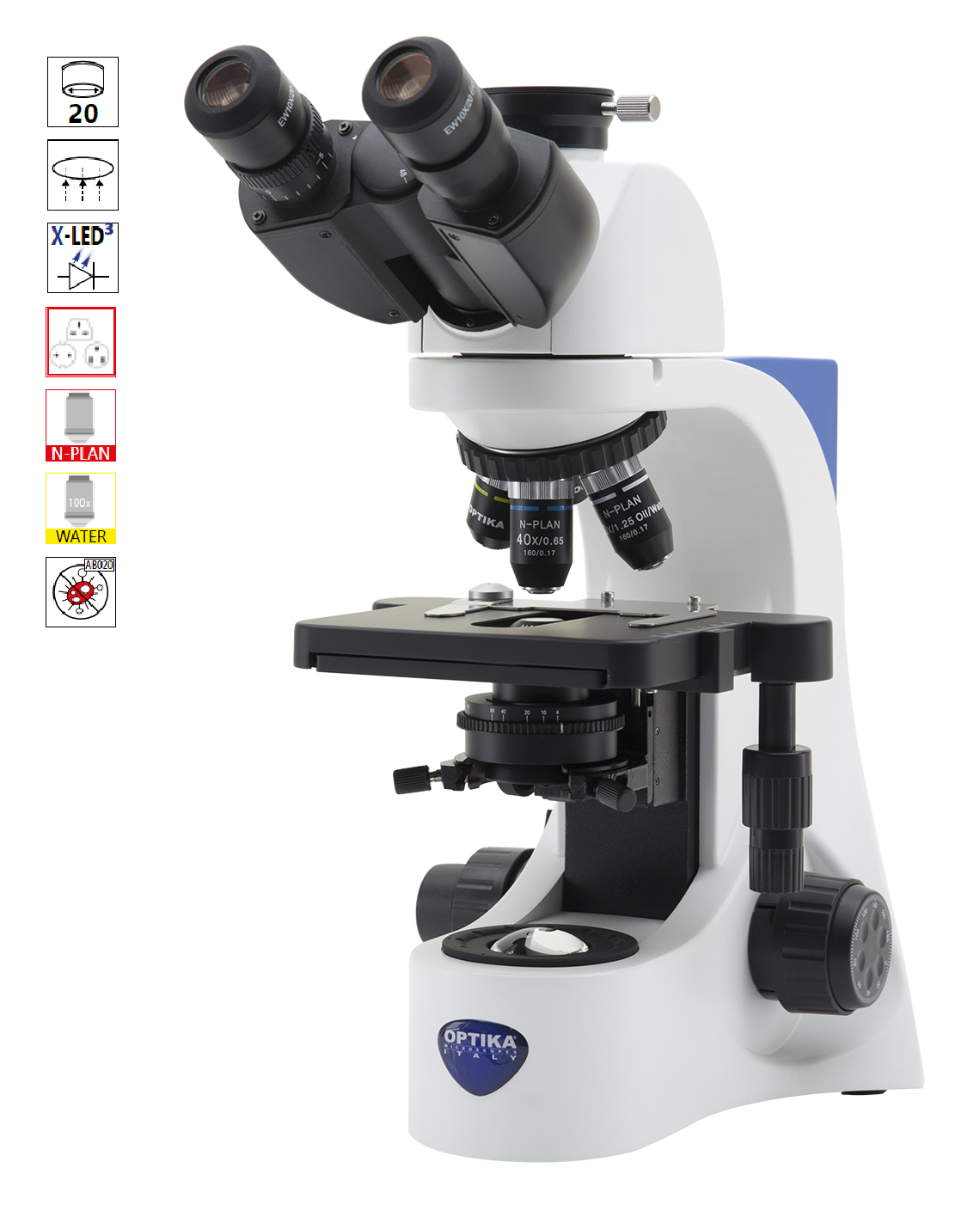

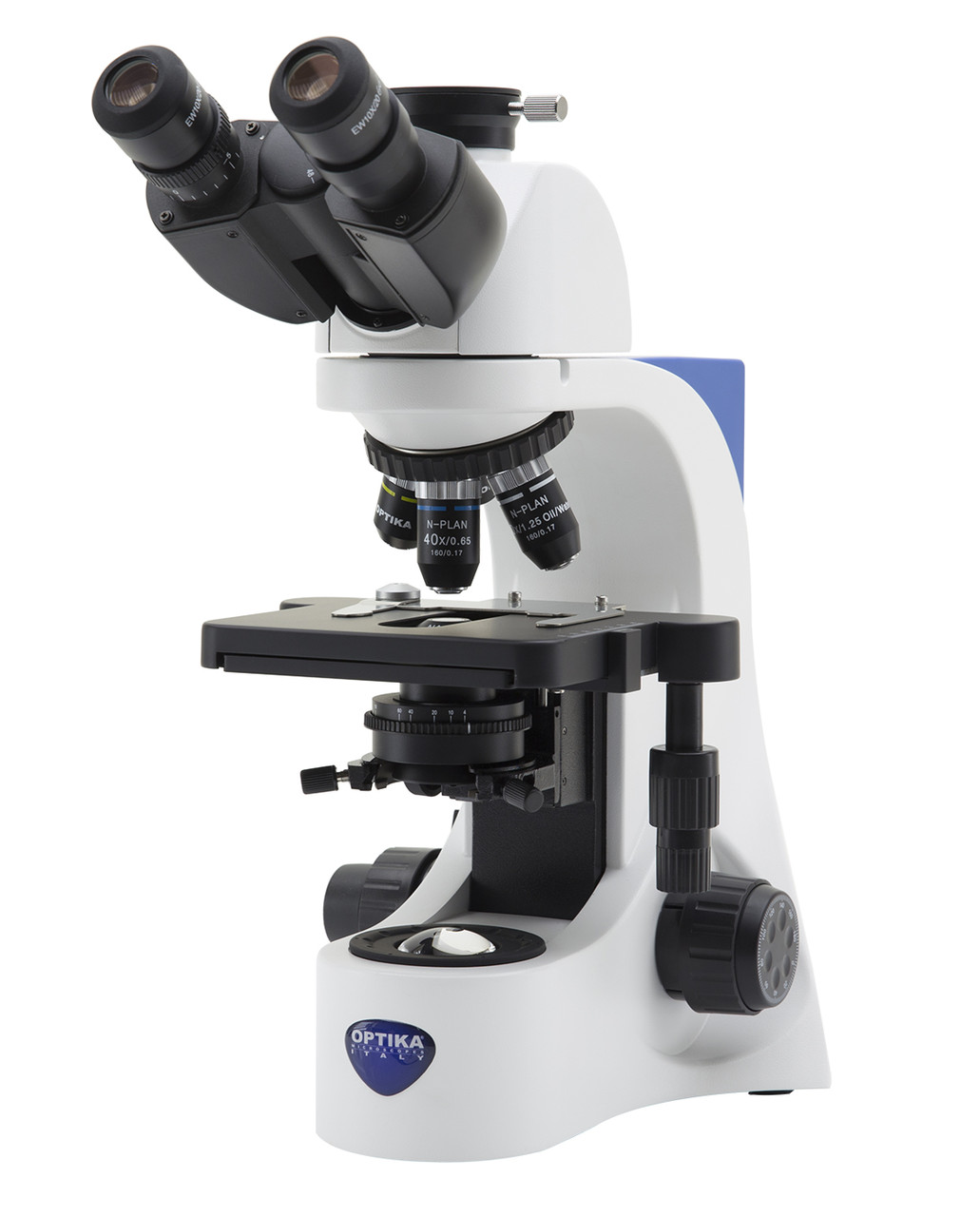

OPTIKA B-383PL
Trinocular Laboratory Microscope
Part of the advanced B-380 series, this microscope is designed for demanding routine laboratory use. The OPTIKA B-383PL features a trinocular head, making it the ideal choice for digital imaging and documentation by allowing the connection of a dedicated camera. It comes equipped with high-quality N-PLAN objectives, a quintuple nosepiece for enhanced flexibility, and the powerful, uniform X-LED³ illumination system, ensuring crisp, clear visuals for both observation and capture.
Ergonomic and Reliable Performance
Built with high-quality materials and a modern, ergonomic design, the B-383PL is made to last. It features a rackless mechanical stage for safe and smooth sample movement and coaxial coarse and fine focusing for precise control. This model is a high-performance solution for any laboratory seeking to combine high-quality optical observation with robust digital documentation capabilities.
| X-LED³ Exclusive Lighting System |
|  | ||
| OPTIKA is proud to introduce its exclusive X-LED³ lighting source. A special combination of high-efficiency LEDs and a special optical system allows OPTIKA to double the light intensity generated by a standard LED. The resulting light is comparable to the light generated by a 50W halogen lamp but with a color temperature of 6300K, representing sunlight. |
| |||
 |
| Mechanical Stage Rackless Stage for Safety and Durability The B-380 series is equipped with a modern rackless mechanical stage. This design prevents the rack from protruding from the stage, avoiding potential scratches or injuries during use. The movement is smoother, more reliable, and provides a safer working environment, especially in educational settings. |
Laboratory Grade Optics, N-PLAN & IOS N-PLAN System
OPTIKA N-PLAN objectives ensure bright, clear images with excellent flatness and compensation for chromatic aberration. IOS Infinity-corrected optical system prevents image deterioration even if other optical components are added, such as polarizers, beamsplitters and so on.
 | Large Specimen View (20 mm Field Number) The F.O.V. (field of view) is based on a comfortable diameter of 20 mm. This means that a wide area of the sample can be inspected and allows a natural and easy view, particularly needed in a laboratory environment. |
Clear Observation With 100x Objective
Users will enjoy B-380 Series for the clear and sharp images they can get using 100x objective with water, thanks to the extremely bright X-LED3 light source and the fully centerable Abbe condenser. Forget about the tedious lens cleaning you are used to when using 100x objective: dirt and dust will not affect your objective.
|
| Brightfield trinocular microscope with N-PLAN objectives, rackless stage and the exclusive X-LED³ for great-looking, rich and high-quality view. |
| Observation mode: Brightfield. | |
| Head: Trinocular (fixed 50/50), 30° inclined, 360° rotating. Interpupillary distance: Adjustable between 48 and 75 mm. | |
| Dioptric adjustment: On the left eyepiece tube. | |
| Eyepieces: WF10x/20 mm, high eye-point and secured by screw. | |
| Nosepiece: Quintuple revolving nosepiece, rotation on ball bearings. | |
| Objectives: N-PLAN 4x/0.10, N-PLAN 10x/0.25, N-PLAN 40x/0.65, N-PLAN 100x/1.25 (Oil/Water). All with anti-fungus treatment. | |
| Specimen stage: Double layer rackless mechanical stage, 150x139 mm, 75x33 mm X-Y range. | |
| Focusing: Coaxial coarse (adjustable tension) and fine focusing mechanism with limit stop. | |
| Illumination (Fixed Koehler type): X-LED³ with white 3.6 W LED (6,300K) with brightness control. Multi-plug 100-240Vac/6Vdc external power supply. |
