Product Description

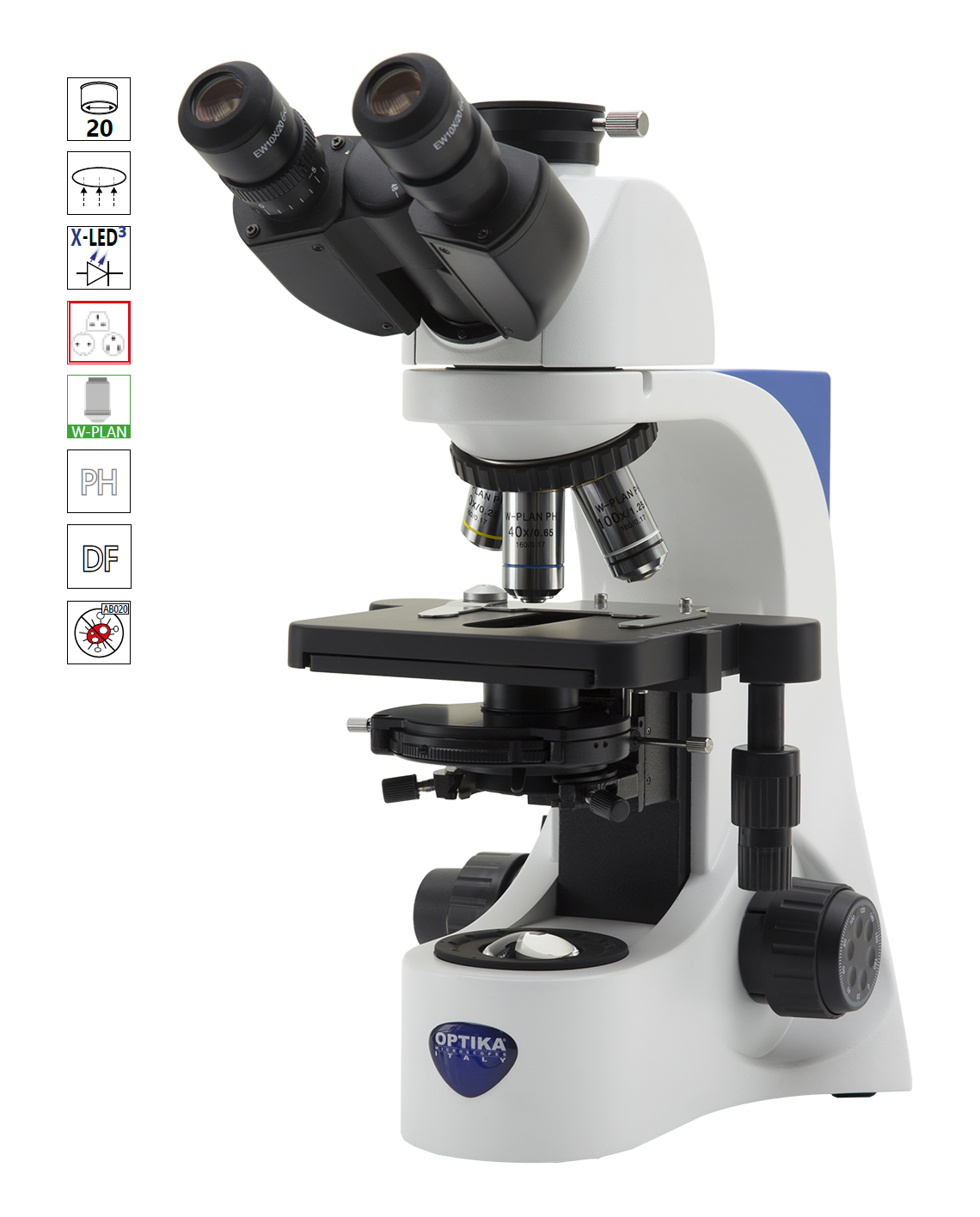

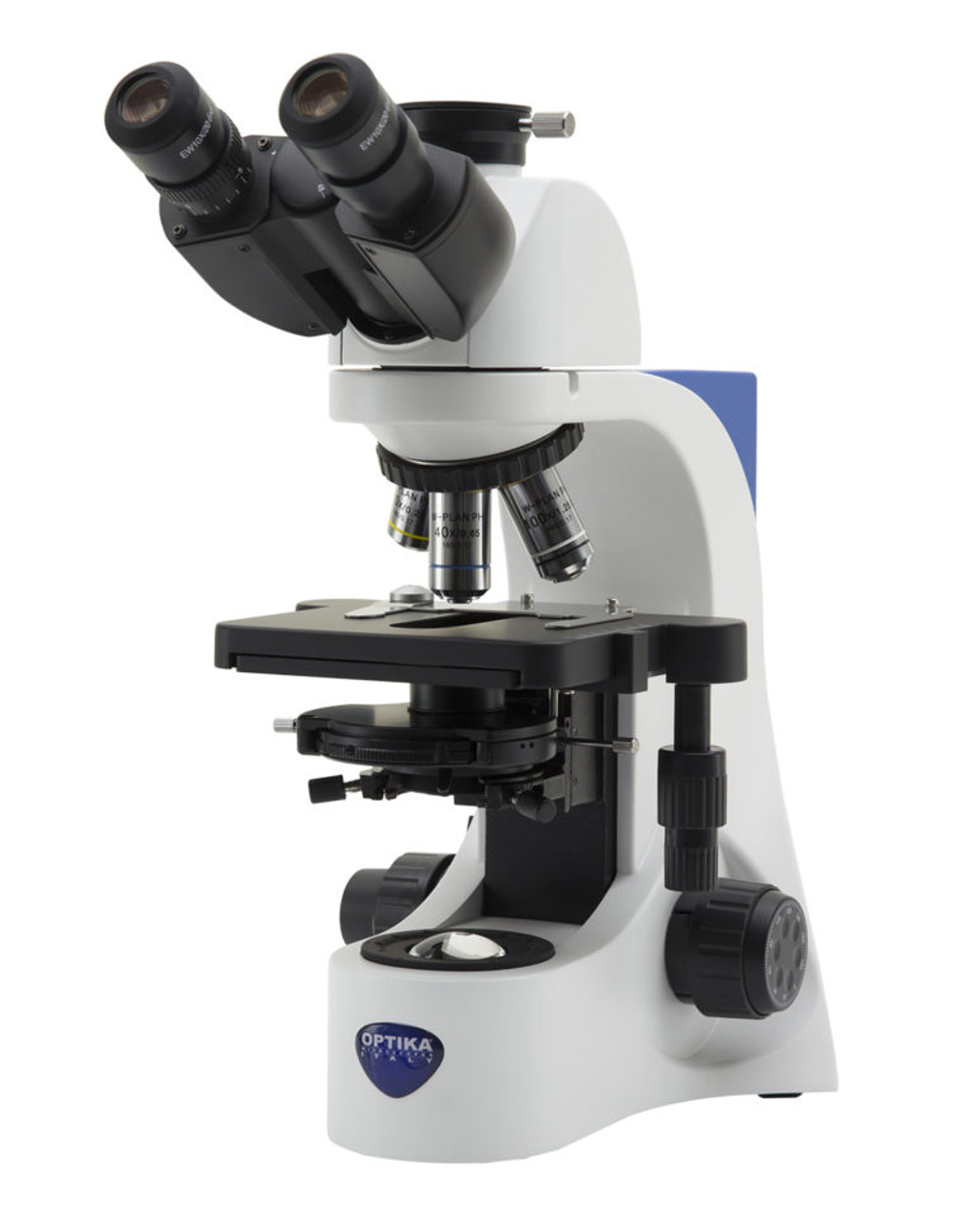

OPTIKA B-383PH
Trinocular Phase Contrast Microscope
Part of the advanced B-380 series, this microscope is a versatile solution for laboratories needing to observe unstained, transparent samples and document their findings. The OPTIKA B-383PH is equipped for Phase Contrast, Darkfield (dry), and Brightfield observation methods. It features a trinocular head for easy camera connection, high-quality W-PLAN PH objectives, and the powerful X-LED³ illumination system, providing high-contrast, detailed images without staining.
Ergonomic and Reliable Performance
Built with high-quality materials, the B-383PH features a rackless mechanical stage for safe sample movement, a quintuple nosepiece for greater flexibility, and coaxial focusing for precision. This model is ideal for viewing and digitally capturing live cells, microorganisms, and other transparent specimens, making it a perfect choice for teaching and diagnostic labs.
| X-LED³ Exclusive Lighting System |
|  | ||
| OPTIKA is proud to introduce its exclusive X-LED³ lighting source. A special combination of high-efficiency LEDs and a special optical system allows OPTIKA to double the light intensity generated by a standard LED. The resulting light is comparable to the light generated by a 50W halogen lamp but with a color temperature of 6300K, representing sunlight. |
| |||
 |

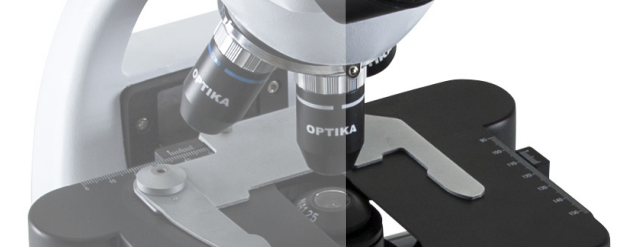

| Mechanical Stage Rackless Stage for Safety and Durability The B-380 series is equipped with a modern rackless mechanical stage. This design prevents the rack from protruding from the stage, avoiding potential scratches or injuries during use. The movement is smoother, more reliable, and provides a safer working environment, especially in educational settings. |
Laboratory Grade Optics for Multiple Modes
OPTIKA W-PLAN PH objectives deliver high-contrast phase images with excellent flatness, ensuring crisp images across all observation methods. The fixed Koehler illumination provides a perfectly lit field of view for high-quality analysis.
 | Large Specimen View (20 mm Field Number) The F.O.V. (field of view) is based on a comfortable diameter of 20 mm. This means that a wide area of the sample can be inspected and allows a natural and easy view, particularly needed in a laboratory environment. |
Multi-Observation Condenser
This model is equipped with a versatile 5-position rotating condenser that holds annuli for 10x, 20x, 40x, and 100x phase contrast, plus a position for brightfield and another for darkfield (dry) observation, making it incredibly simple to switch between viewing modes.
|
| Phase contrast, darkfield and brightfield trinocular microscope with W-PLAN objectives, rackless stage and the exclusive X-LED³. for great-looking, rich and high-quality view. |
| Observation mode: Brightfield, Phase Contrast, Darkfield (dry). | |
| Head: Trinocular (fixed 50/50), 30° inclined, 360° rotating. Interpupillary distance: Adjustable between 48 and 75 mm. | |
| Dioptric adjustment: On the left eyepiece tube. | |
| Eyepieces: WF10x/20 mm, high eye-point and secured by screw. | |
| Nosepiece: Quintuple revolving nosepiece, rotation on ball bearings. | |
| Objectives: N-PLAN 4x/0.10, W-PLAN PH 10x/0.25, W-PLAN PH 40x/0.65, W-PLAN PH 100x/1.25 (Oil/Water). All with anti-fungus treatment. | |
| Specimen stage: Double layer rackless mechanical stage, 150x139 mm, 75x33 mm X-Y range. | |
| Focusing: Coaxial coarse (adjustable tension) and fine focusing mechanism with limit stop. | |
| Condenser: Phase condenser (10x/20x, 40x, 100x) with darkfield (dry) and brightfield positions. | |
| Illumination (Fixed Koehler type): X-LED³ with white 3.6 W LED (6,300K) with brightness control. Multi-plug 100-240Vac/6Vdc external power supply. |
