Product Description

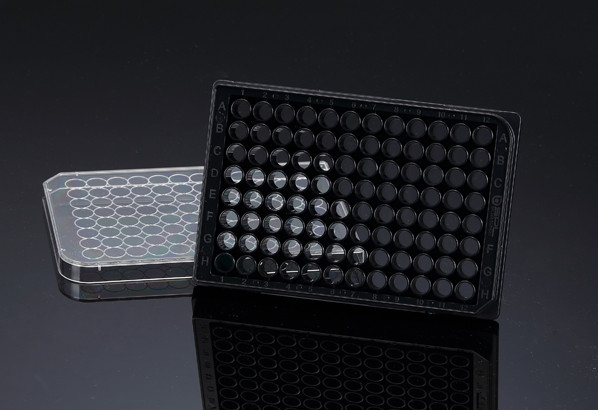

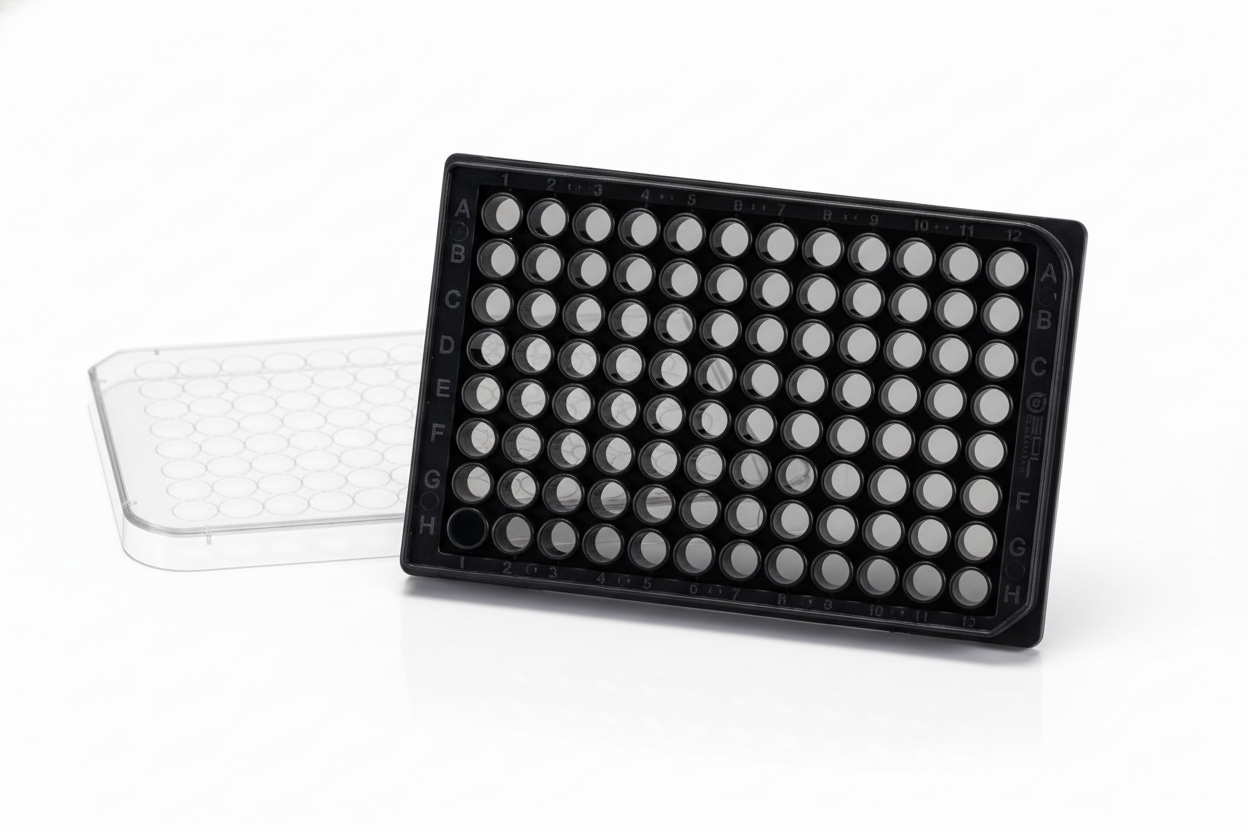

SPL Black Plate
SPL Black Plate has low auto-fluorescence with efficient light blocking ability to obtain most accurate result in fluorescence experiments. Also, microscopic observation can be done simultaneously with fluorescence experiment due to its highly transparent bottom.
Surface materials for Black Plates
Glass : naturally charged, good growth surface for adherent cells (THIS MODEL)
FLux : surface modified plastic film (188 μm thick), optimal for confocal microscopy
PS : thinner than existing PS plate, good for cell attachment and microscopic observation.
- Black Wall/Clear Bottom
- Bottom materials: Glass
- Designed to prevent cross contamination
- Effective gas exchange lid inner design
- Alphanumeric labeling
- Non – pyrogenic
- Non – cytotoxic
- DNase / RNase – free
- Human DNA – free
| Material (Plate/Bottom) |
Bottom Type |
External Dimension (mm) |
Well Dimension (mm) |
Growth Area (cm²) |
Total Volume (ml) |
Working Volume (ml) |
Surface Treatment |
Sterile | Packaging |
| PS / Glass | Flat | 85.40 x 127.60 x 14.40 | 6.50 x 10.80 | 0.33 | 0.40 | 0.20 | No | Yes | 1 / 20 |
Download TDS SPL Black Plates
What is in the Box?
20 x SPL Black plate
