Product Description

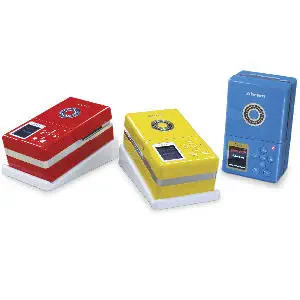

Palm PCR™G2-12 is a hand-held, portable PCR system, featuring ultra-fast PCR protocols
and multi-step isothermal functions. G2-12 system represents a fully portable, stand-alone
solution for performing ultra-fast PCR reactions and related biochemical processes such as
reverse transcription, nucleic acid preparation and cell lysis, in a single instrument.
Key Features of G2-12 System
• Battery-powered, stand-alone device:
More than 4 hours of operation on a single charge
• Ultra-fast amplification:
As fast as 9 min/30-cycles
• Extreme high efficiency:
Single copy amplification sensitivity
• Multi-step isothermal functions:
For performing reverse transcription, nucleic acid preparation, cell lysis, etc.
The Palm PCR™ G2-12 system consists of:
• Palm PCR™ G2-12 mobile PCR Device,
• Model WB-1012A Wedge Base,
• Model LP-1920A Li Polymer Battery, and
• Model KPL-060H or AD-1540A AC/DC Adapter
Palm PCR™ G2-12 System Specifications
| Size (w x d x h) | 71 mm x 121 mm x 47 mm |
| Weight | 220 g (350 g including a battery) |
| Display | 1.3 inch color TFT LCD |
| Input power | DC 11.1-15 V, 4 A |
| Power consumption | ≤ 5 W (continuous operation) and ≤ 6.5 W (single operation) at 25°C |
| PCR performance | PCR speed: 9 to 12 min/30-cycles, three speed levels Dynamic range: Up to 800 bp |
| Isothermal function | Programmable up to 4 steps Temperature range 37°C to 98°C |
| Temperature | Uniformity ≤ 0.2°C Stability ≤ 0.1°C Accuracy ≤ 0.2°C |
