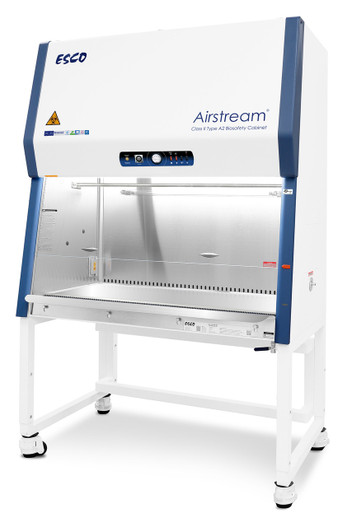

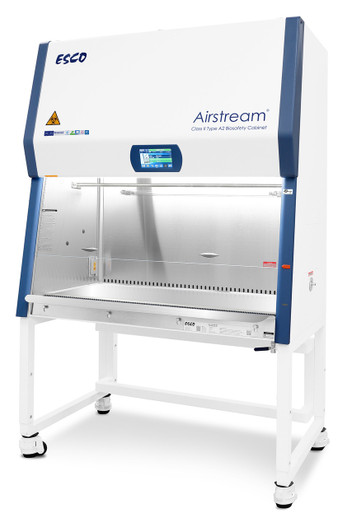

The AIRSTREAM G4 Class II Type A Biological Safety Cabinet is an effective solution in providing operator, product and environmental protection within laboratories and industrial facilities. With the presence of its DC ECM blower, this is the most energy-efficient Class II Biosafety Cabinet in the world with 70% energy savings compared to AC motor. It also features stable and self-compensating airflow, despite building voltage fluctuations & filter loading. Its large performance envelope is an open declaration of possible safe operating airflow values. Certified to EN 12469, Esco AIRSTREAM RELIANT® Class II Biological Safety Cabinet also has antimicrobial coating on all its external and internal painted surfaces for improved safety.

Key Benefits

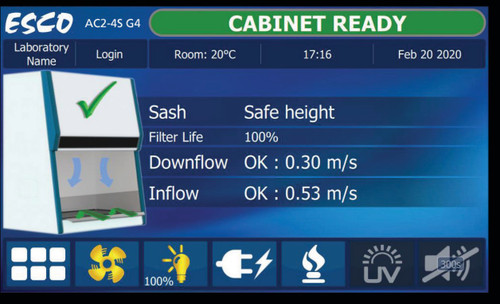

Centurion Touchscreen Controller	7” Capacitive Touch Screen, intuitive to use like phones Displays key safety information graphically on one screen Built-in guide to use the cabinet and respond to situations Centered and angled down for easy reach & viewing Datalogger to assist diagnostics and send info to BMS
USB Port and Zero Volt Relay Contact	USB Port to send operational information to Building Management System (BMS) Zero Volt Relay Contact to turn ON/OFF exhaust blower and signal the building alarm
One-Piece Interior Wall	Double layer side walls with negative pressure Easy to reach service fixture and outlets Large radius corner for easy cleaning
Dished Work Tray	Contains spillage Angled edge for easy cleaning V-shaped grille to prevent blocking
Raised Ergonomic Arm Rest	Helps prevent grille blocking Comfortable working posture

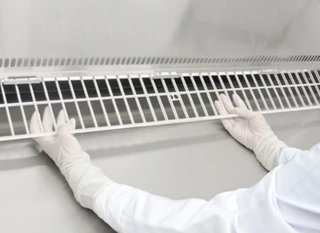

Removable Paper Catch	Easy-to-clean Optional pre-filter can be fitted
Airflow Sensor	Monitors real-time airflow for safety Alerts the user if airflow is insufficient

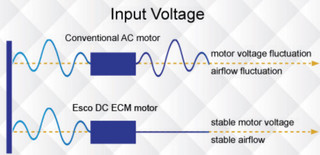

Energy-efficient DC ECM Blower	The leading energy efficient Class II Type A2 Biosafety Cabinet in the world with 70% energy savings compared to AC motor Stable airflow despite building voltage fluctuations & filter loading Standby mode to further reduce power consumption by 60%
ULPA Filter	10x Filtration efficiency of HEPA filter Creates ISO Class 3 work zone instead of industry-standard ISO Class 5 Same 10 years filter life and replacement cost as HEPA filters
Dynamic Chamber	Blower plenum and side walls are surrounded by negative pressure Prevents contaminants from escaping outside Steel plenum with Isocide™ coating, instead of flexible bag plenum, to prevent contamination leak
Angled Sash	10° angled front to optimize user comfort, reduce glare and maximize reach into the work area, 8 inches Sash

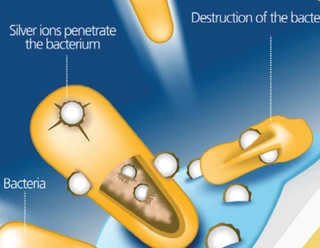

ISOCIDE Powder Coat	Silver-ion impregnated powder coat Inhibits microbial growth to improve safety Prevents the plenum from becoming biohazard landfill

*The NSF / ANSI 49 certified models are AC2-3S9-NS, AC2-4S9-NS, AC2-5S9-NS, AC2-6S9-NS

Specifications:

• Nominal Size: 0.9 meters (3')
• External Dimensions (W x D x H): 1035 x 850 x 1400 mm (40.7” x 33.5” x 55.1”)
• Internal Work Area, Dimensions (W x D x H): 915 x 610 x 660 mm / (36.0” x 24.0” x 26.0”)
• Usable Work Area 0.45 m2 (4.9 ft2)
• Work Opening 203 mm (8”)
• Maximum Opening 480 mm (18.9”)
• Average Inflow Velocity  0.53 m/s (105 fpm)
• Average Downflow Velocity 0.30 m/s (60 fpm)
• Airflow Volume
  • Inflow    356 cmh (210 cfm)
  • Downflow    566 cmh (333 cfm)
  • Required Exhaust    600 cmh (353 cfm)
    With Optional Thimble Exhaust Collar
  • Static Pressure For    15 -25 Pa
    For Optional Thimble Exhaust Collar

• ULPA Filter Typical Efficiency:
  - Downflow >99.999% at 0.1 to 0.3 micron, ULPA as per IEST-RP-CC001.3 USA
  - Exhaust >>99.999% at MPPS, H14 as per EN 1822 EU
• Sound Emission (Typical): NSF/ANSI 49  55.8 dBA
• Fluorescent Lamp Intensity (lux): 1260 lux (117 foot candles)
• Cabinet Construction:
  • Main Body; 1.2 mm (0.05") 18 gauge electro-galvanized steel with white oven-baked epoxy-polyester Isocide antimicrobial powder-coated finish
  • Work Zone; 1.5 mm (0.06") 16 gauge stainless steel, type 304, with 4B finish
  • Side Walls; 1.5 mm (0.06”) / 16 gauge, Stainless Steel 304, 4B finish
• Electrical: 110-120V, AC, 60Hz,1ø
• Cabinet Full Load Amps (FLA): 15
• Cabinet Nominal Power: 132 W

Download

Catalog

Include:

1. Esco Airstream Class II Biological Safety Cabinet

2. Direct Mounted Electrical Outlet - Plug Code A
3. American-Style Universal Service Fitting for Air/Gas/Vacuum/Nitrogen
4. UV Lamp
5. Stand (Select the Option with + Stand)
6. Cable Port
