Product Description

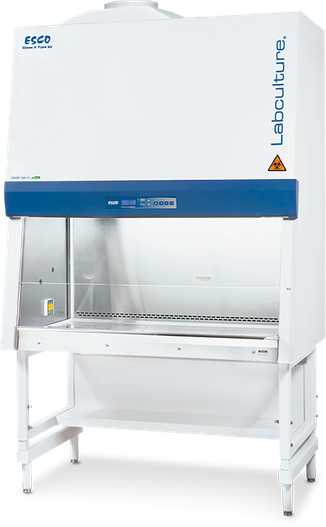

Labculture^® Class II Type B2 (Total Exhaust) Biosafety Cabinets

Features:

	Sentinel™ Gold Microprocessor Control system Displays basic parameters such as airflow on one screen Has audible and visual alarms
	Esco Dynamic Chamber This plenum design delivers quiet and uniform airflow
	Filtration system Long Life ULPA supply filter HEPA exhaust filter
	Single-piece Internal work zone Large radius for easy cleaning Eliminates welded joints to prevent accumulation of contaminants
	Isocide™ Antimicrobial Powder Coating Eliminates 99.9% of surface bacteria within 24 hours of exposure

Specifications:

• Nominal Size: 1.8 meters (6')
• External Dimensions (W x D x H): 2030 x 852 x 1610 mm (80.0” x 33.5” x 63.3”) Without Stand
• Internal Work Area, Dimensions (W x D x H): 1870 x 623 x 715 mm (73.6” x 24.5” x 28.1”)
• Usable Work Area 0.9 m2 (9.7 sq ft)
• Tested Opening 203 mm (8”)
• Working Opening 248 mm (9.8”)
• Average Inflow Velocity 0.53 m/s (105 fpm)
• Average Downflow Velocity 0.31 m/s (60 fpm)
• Airflow Volume

ULPA Filter Typical Efficiency: >99.999% for particle size between 0.1 to 0.3 microns per IEST-RP-CC001.3 / H14 per EN 1822

Exhaust HEPA Filter Typical Efficiency: ≥99.99% at 0.3 microns

Maximum Sash Opening: 508 mm (20")

Sound Emission (Typical): - NSF/ANSI 49  60 dBA
Fluorescent Lamp Intensity (lux): >1000 lux (> 93 foot candles)

Cabinet Construction:
- Main Body; Electro-galvanized steel with white oven-baked epoxy-polyester Isocide™ antimicrobial powder-coated finish,
1.5 mm (0.06") / 16 gauge thick
- Work Zone; Stainless steel Type 304 with No.4 finish, 1.5 mm (0.06") / 16 gauge thick

Electrical: 110-120V, AC, 60Hz,1ø
Cabinet Full Load Amps (FLA): 10 A
Cabinet Nominal Power: 252W

Brochures:

• Brochure, English



Include:

1. ESCO Labculture® Class II, Type B2 Biological Safety Cabinets 4ft
2. 1 x GFCI Outlets
3. UV
4. 1 x Service Valve
5. Stand (Optional)
