Product Description

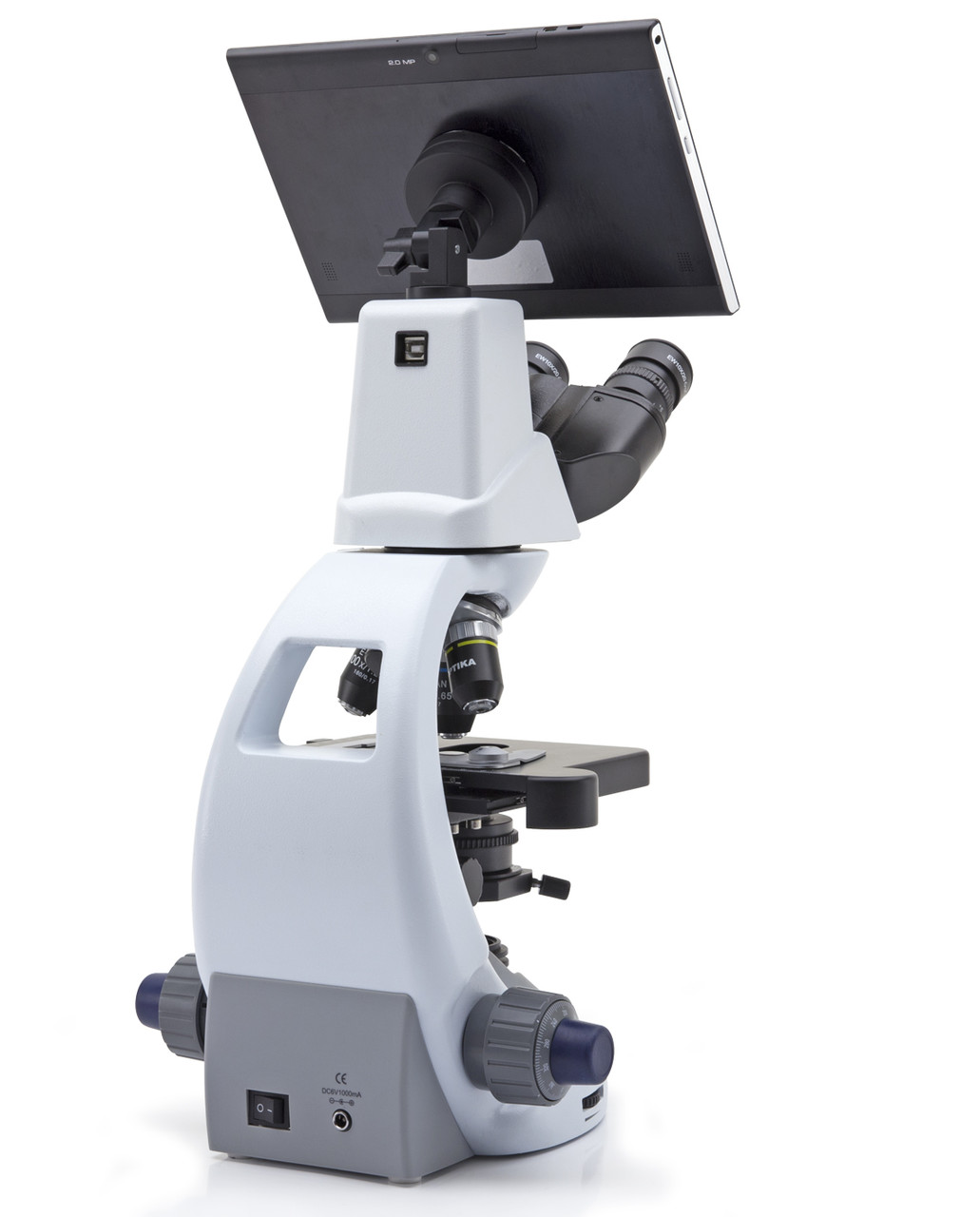

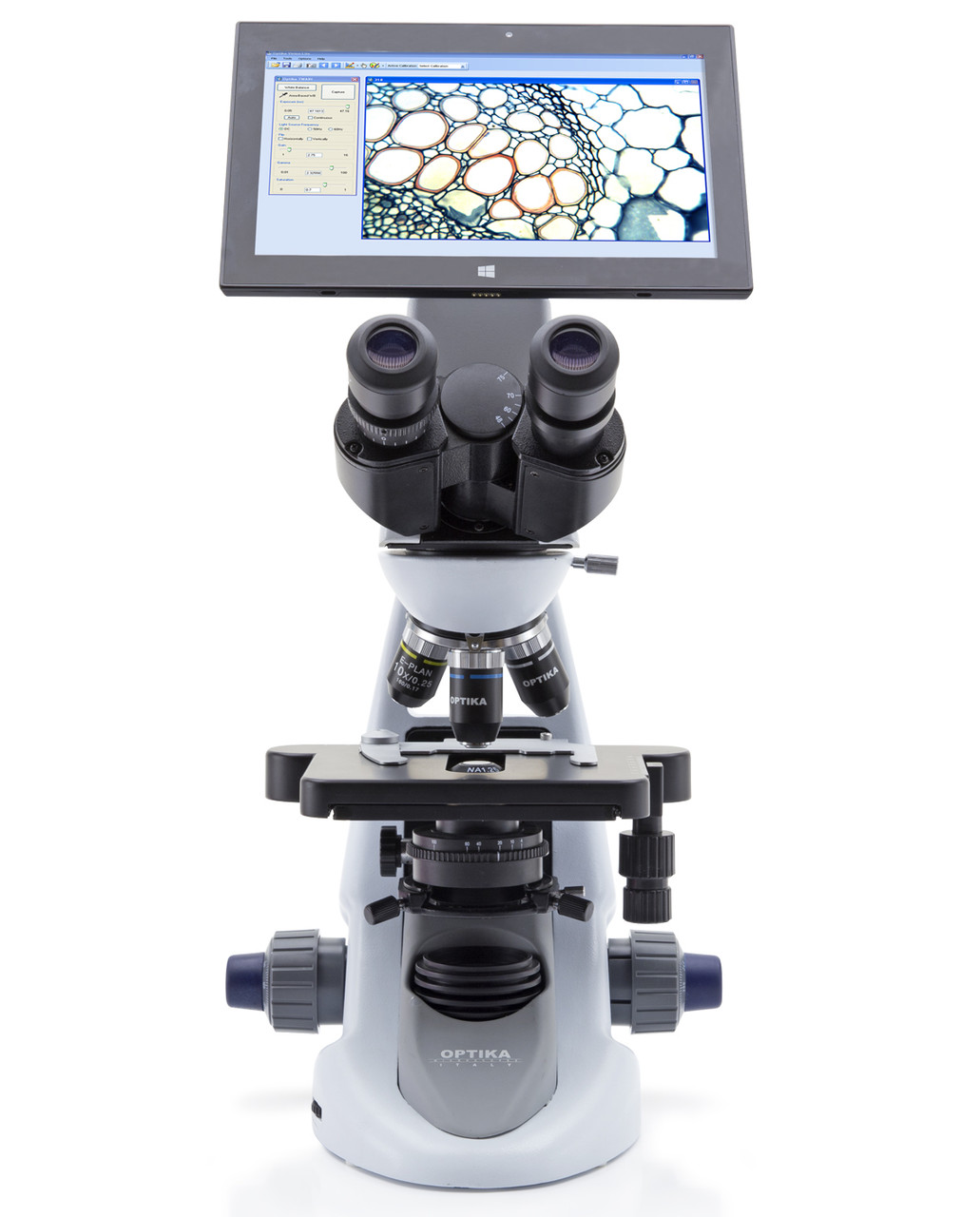

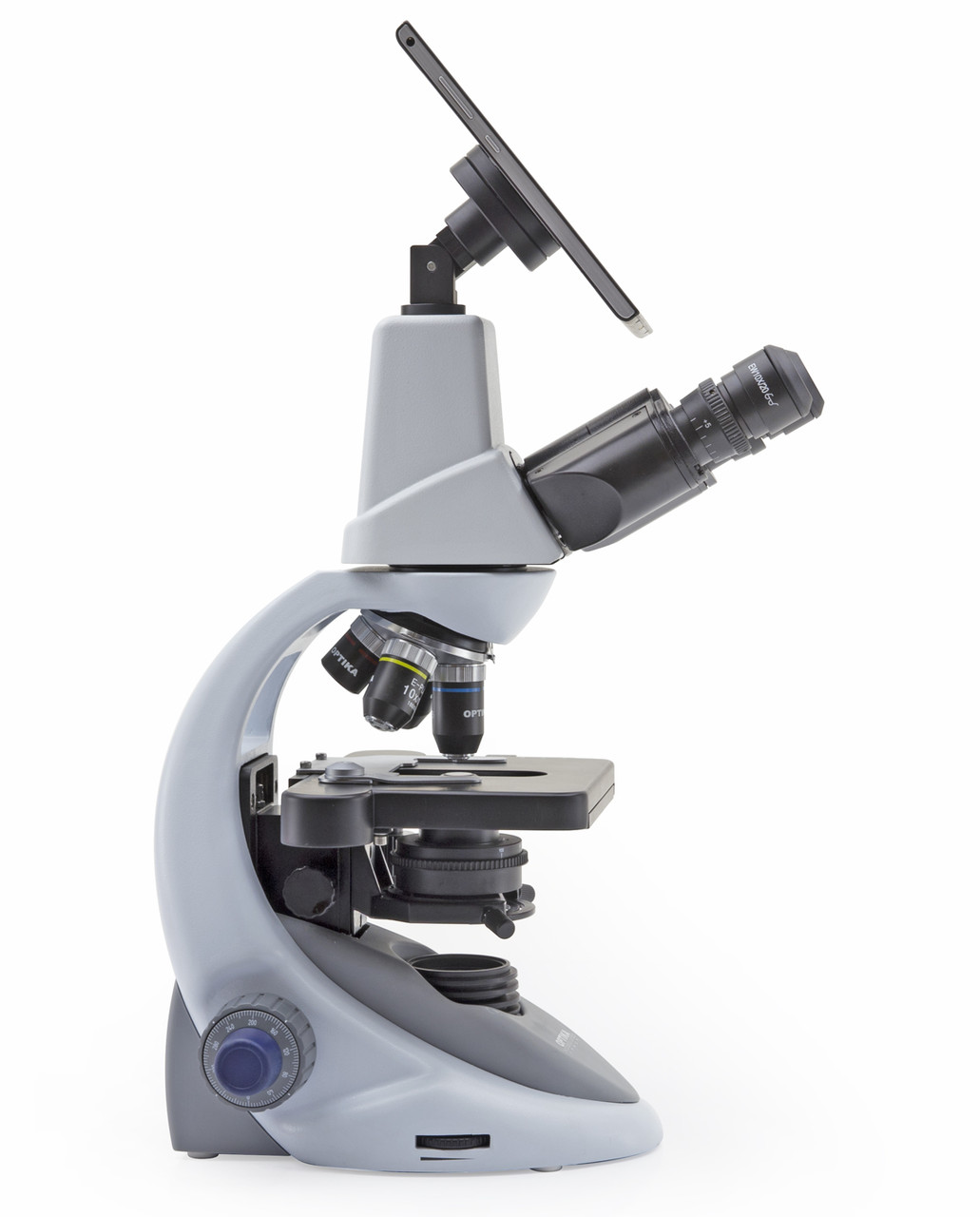

OPTIKA B-290TB
Digital Binocular Microscope with Tablet
The OPTIKA B-290TB combines the reliable optics of the B-290 series with a modern, integrated Windows Tablet PC, creating a revolutionary solution for teaching and collaborative work. This model features a binocular viewing head alongside a detachable tablet with a large 10.1" touch screen, allowing for smooth, responsive control and immediate digital analysis. Equipped with standard N-PLAN objectives and the powerful X-LED³ illumination, it ensures crisp, clear images both visually and digitally.
Break New Ground with Digital Integration
Designed for versatility, the B-290TB allows users to view samples through the eyepieces or directly on the high-resolution screen. The tablet can be rotated 360°, tilted, and easily detached for use as a standalone PC. Simultaneous camera and power connection ensures long-term operation without interruption. Built with a rackless stage and coaxial focusing, it maintains the ergonomic and safety features of the series while adding powerful digital capabilities.
|
X-LED³ Exclusive Lighting System |
|
 |
||
|
OPTIKA is proud to introduce its exclusive X-LED³ lighting source. A special combination of high-efficiency LEDs and a special optical system allows OPTIKA to double the light intensity generated by a standard LED. The resulting light is comparable to the light generated by a 50W halogen lamp but with a color temperature of 6300K, representing sunlight. |
|
|||
 |
|
Mechanical Stage Rackless Stage for Safety and Durability The B-290 series is equipped with a modern rackless mechanical stage. This design prevents the rack from protruding from the stage, avoiding potential scratches or injuries during use. The movement is smoother, more reliable, and provides a safer working environment, especially in educational settings. |
Laboratory Grade Optics & Integrated Digital System
OPTIKA N-PLAN objectives ensure bright, clear images with excellent flatness. The integrated system includes a 3.1 MP camera seamlessly connected to a Windows Tablet PC, offering live viewing, image capture, annotation, and measurement capabilities directly on the screen.
 |
Large Specimen View (20 mm Field Number) The F.O.V. (field of view) is based on a comfortable diameter of 20 mm. This means that a wide area of the sample can be inspected and allows a natural and easy view, particularly needed in a laboratory environment. |
Interactive Learning and Documentation
The large touch screen is ideal for interactive sessions, allowing multiple students or colleagues to view the specimen simultaneously. Images and videos can be captured easily and annotated directly on the tablet. Measurement functions are built-in, and data can be stored or shared effortlessly.
|
|
Built-in camera and Digital Imaging Unit with N-PLAN objectives, rackless stage and exclusive X-LED3 for unmatchable performance in illumination. Ideal for discussion group with 360° rotating Digital Imaging Unit. |
|
Observation mode: Brightfield. |
|
|
Head: Binocular, 360° rotating and 30° inclined. Interpupillary distance from 48 to 75 mm; dioptric adjuctment on left eyepiece. Built-in 3.1 MP camera. |
|
|
Digital System: Detachable Tablet PC with 10.1" Touch Screen (1920x1200), Windows OS, Intel CPU, 6GB RAM, 128GB Storage, Wi-Fi, USB 3.0, HDMI output. Includes imaging software. |
|
|
Eyepieces: WF10x/20 mm, high eye-point and secured by screw. |
|
|
Nosepiece: Quadruple revolving nosepiece, rotation on ball bearings. |
|
|
Objectives: N-PLAN 4x/0.10, N-PLAN 10x/0.25, N-PLAN 40x/0.65, N-PLAN 100x/1.25 (Oil/Water). All with anti-fungus treatment. |
|
|
Specimen stage: Double layer rackless mechanical sliding stage, 150x139 mm, 75x33 mm X-Y movement range. Vernier scale on the two axes, accuracy: 0.1 mm. |
|
|
Focusing: Coaxial coarse and fine focusing mechanism with limit stop. Adjustable tension of coarse focusing knob. |
|
|
Condenser: Abbe N.A. 1.25, with objective-coded iris diaphragm, focusable and centerable. |
|
|
Illumination (Fixed Koehler type): X-LED³ with white 3.6 W LED (6,300 K) and light intensity control. |
|
|
Power Supply: Multi-plug 100-240Vac/6Vdc external power supply for microscope and tablet. |
