Product Description

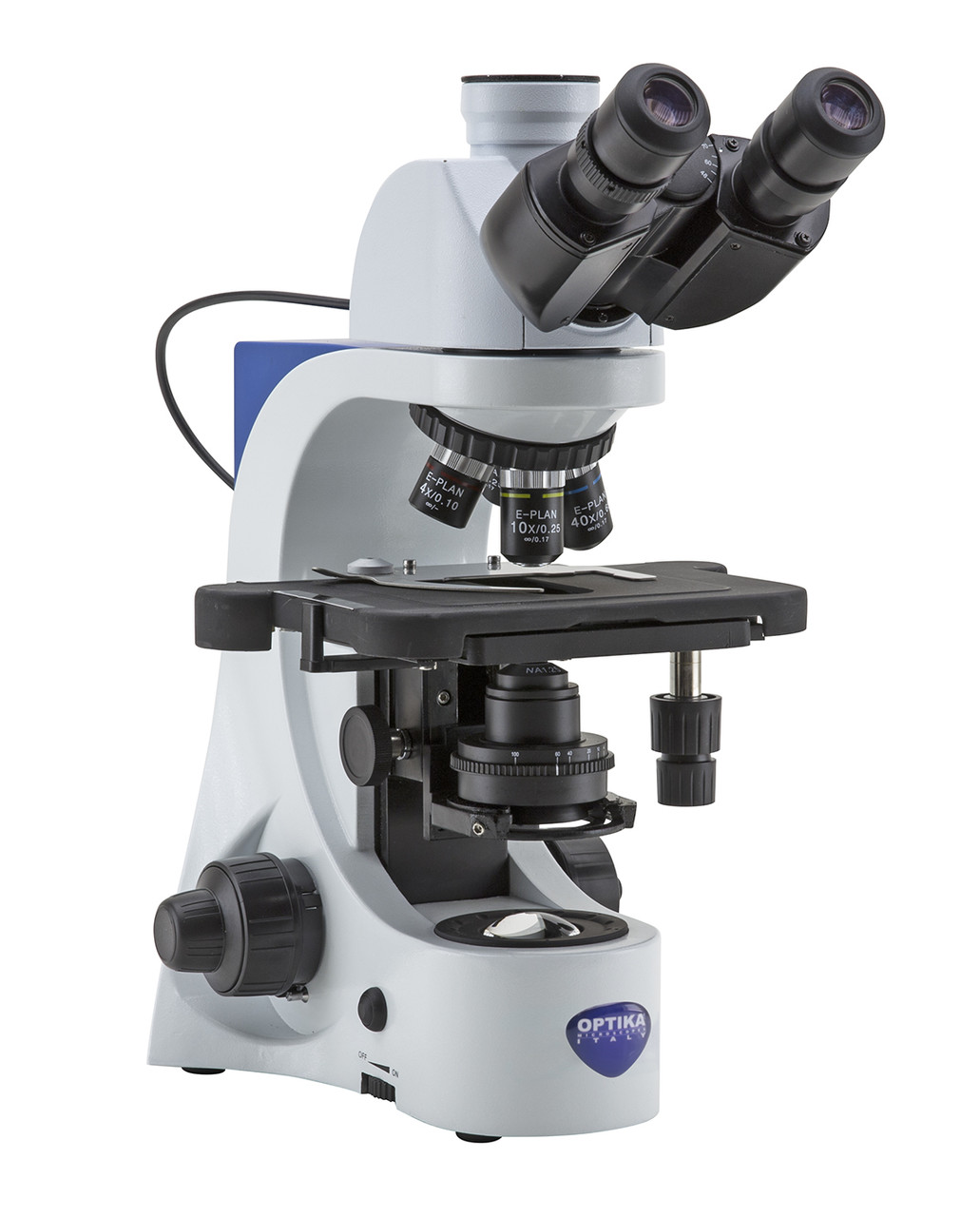

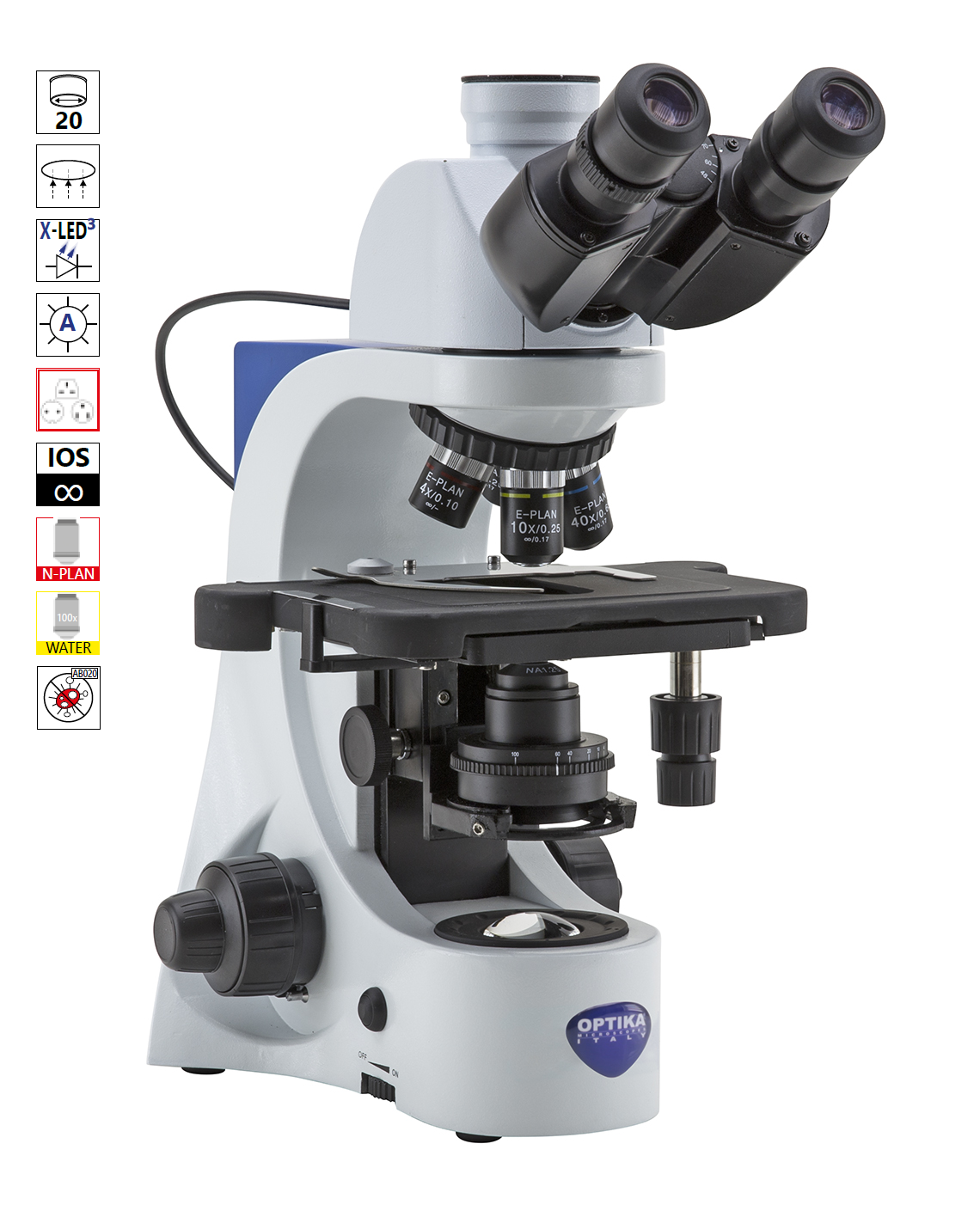

OPTIKA B-382PLi-ALC
Binocular Laboratory Microscope with IOS & ALC
Part of the advanced B-380 series, this microscope combines premium optics with intelligent illumination. The OPTIKA B-382PLi-ALC features a comfortable binocular head, high-quality IOS (Infinity Corrected) N-PLAN objectives, and the exclusive ALC (Automatic Light Control) system. This smart feature automatically adjusts the light intensity when you change objectives, ensuring the perfect brightness is always maintained. Combined with the powerful X-LED³ illumination, this microscope provides a seamless and comfortable observation experience with superior, flat-field optical quality.
Ergonomic and Reliable Performance
Built with high-quality materials and a modern, ergonomic design, the B-382PLi-ALC is made to last. It features a large rackless mechanical stage for safe and smooth sample movement, a quintuple nosepiece for greater flexibility, and coaxial coarse and fine focusing for precise control. This model is an ideal solution for labs seeking efficiency, comfort, and consistent, high-quality illumination for demanding applications.
|
X-LED³ Exclusive Lighting System |
|
 |
||
|
OPTIKA is proud to introduce its exclusive X-LED³ lighting source. A special combination of high-efficiency LEDs and a special optical system allows OPTIKA to double the light intensity generated by a standard LED. The resulting light is comparable to the light generated by a 50W halogen lamp but with a color temperature of 6300K, representing sunlight. |
|
|||
 |
|
Mechanical Stage Rackless Stage for Safety and Durability The B-380 series is equipped with a modern rackless mechanical stage. This design prevents the rack from protruding from the stage, avoiding potential scratches or injuries during use. The movement is smoother, more reliable, and provides a safer working environment, especially in educational settings. |
Laboratory Grade Optics & ALC System
OPTIKA IOS N-PLAN objectives ensure bright, clear images with excellent flatness and compensation for chromatic aberration. The Automatic Light Control (ALC) system maintains your preferred brightness level automatically, so you can forget about illumination and focus on the sample.
 |
Large Specimen View (20 mm Field Number) The F.O.V. (field of view) is based on a comfortable diameter of 20 mm. This means that a wide area of the sample can be inspected and allows a natural and easy view, particularly needed in a laboratory environment. |
Clear Observation With 100x Objective
Users will enjoy B-380 Series for the clear and sharp images they can get using 100x objective with water, thanks to the extremely bright X-LED3 light source and the fully centerable Abbe condenser. Forget about the tedious lens cleaning you are used to when using 100x objective: dirt and dust will not affect your objective.
|
|
Brightfield binocular microscope with IOS N-PLAN (Infinity Corrected) objectives, rackless stage and combining X-LED³ with ALC (Automatic Light Control). for great-looking, rich |
|
Observation mode: Brightfield. |
|
|
Head: Binocular, 30° inclined, 360° rotating (when ALC cable is unplugged). Interpupillary distance: Adjustable between 48 and 75 mm. |
|
|
Dioptric adjustment: On the left eyepiece tube. |
|
|
Eyepieces: WF10x/20 mm, high eye-point and secured by screw. |
|
|
Nosepiece: Quintuple revolving nosepiece, rotation on ball bearings. |
|
|
Objectives: IOS N-PLAN 4x/0.10, IOS N-PLAN 10x/0.25, IOS N-PLAN 40x/0.65, IOS N-PLAN 100x/1.25 (Oil/Water). All with anti-fungus treatment. |
|
|
Specimen stage: Double layer rackless mechanical stage, 233x147 mm, 78x54 mm X-Y range. |
|
|
Focusing: Coaxial coarse (adjustable tension) and fine focusing mechanism with limit stop. |
|
|
Condenser: Abbe N.A. 1.25, with objective-coded iris diaphragm, focusable and centerable. |
|
|
Illumination (Fixed Koehler type): X-LED³ with white 3.6 W LED (6,300K) and brightness control. ALC system. Multi-plug 100-240Vac/6Vdc external power supply. |
