Product Description

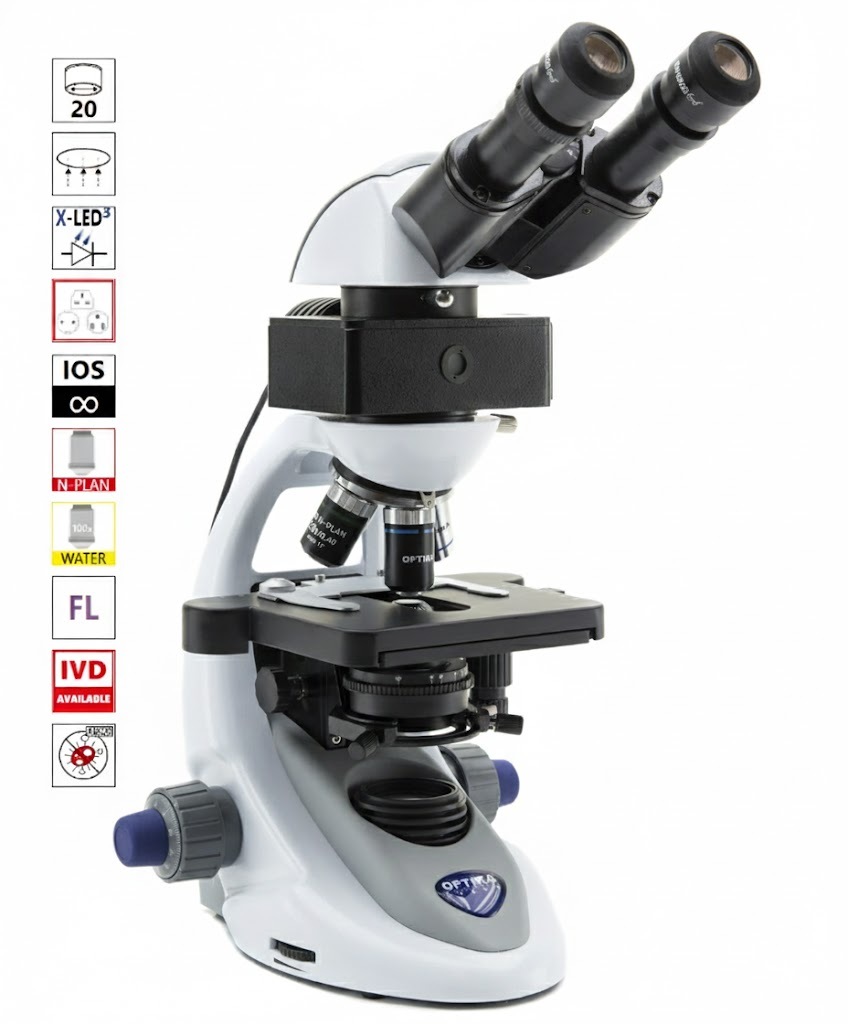

OPTIKA B-292LD1
Binocular LED Fluorescence Microscope (100x Dry)
The OPTIKA B-292LD1 is a specialized model within the B-290 series, designed specifically for LED fluorescence applications such as tuberculosis and malaria analysis, in addition to standard brightfield observation. This configuration features a high-power 100x dry objective (no cover glass needed), ideal for specific diagnostic protocols. It combines a binocular head with high-quality IOS N-PLAN objectives and a dual illumination system: the powerful transmitted X-LED³ for brightfield and a dedicated epi-fluorescence LED illuminator with a blue filter set.
Ergonomic and Versatile Performance
Built for reliability, the B-292LD1 features the same robust construction as the rest of the series. It includes a rackless mechanical stage for safe sample handling, coaxial focusing for precision, and an Abbe condenser. Its key advantage is the slider with positions for both brightfield and fluorescence, allowing users to switch observation methods instantly without complex setup, making it an incredibly versatile tool for diagnostic laboratories, particularly those using dry 100x objectives.
|
X-LED³ Exclusive Lighting System (Brightfield) |
|
 |
||
|
For brightfield observation, the microscope uses the exclusive X-LED³ lighting source. A special combination of high-efficiency LEDs and an optical system allows OPTIKA to double the light intensity generated by a standard LED. The resulting light is comparable to a 50W halogen lamp but with a color temperature of 6300K, representing sunlight. |
|
|||
 |
|
Mechanical Stage Rackless Stage for Safety and Durability The B-290 series is equipped with a modern rackless mechanical stage. This design prevents the rack from protruding from the stage, avoiding potential scratches or injuries during use. The movement is smoother, more reliable, and provides a safer working environment, especially in educational settings. |
Laboratory Grade Optics & LED Fluorescence
This model is equipped with high-quality IOS (Infinity Corrected) objectives. The epi-fluorescence attachment uses a high-efficiency LED that requires no warm-up/cool-down time and has a long lifespan. The included blue filter set is suitable for a variety of common fluorochromes.
 |
Large Specimen View (20 mm Field Number) The F.O.V. (field of view) is based on a comfortable diameter of 20 mm. This means that a wide area of the sample can be inspected and allows a natural and easy view, particularly needed in a laboratory environment. |
Dedicated LED Fluorescence System
The B-290LD models offer an ultra-convenient LED fluorescence solution. Unlike traditional HBO mercury lamps, the LED illuminator provides immediate operation with no waiting time. This cost-effective technology eliminates the need for lamp replacements and centering, saving both time and money while providing excellent performance for diagnostic applications like viewing Auramine O (for Tuberculosis) and other fluorochromes.
|
|
Binocular microscope for LED fluorescence and brightfield, featuring a 100x dry objective, IOS optics, rackless stage, and dual X-LED³ / LED illumination. |
|
Observation mode: Brightfield, LED Fluorescence. |
|
|
Head: Binocular, 360° rotating and 30° inclined. Interpupillary distance 48-75 mm. |
|
|
Eyepieces: WF10x/20 mm, high eye-point and secured by screw. |
|
|
Nosepiece: Quadruple revolving nosepiece, rotation on ball bearings. |
|
|
Objectives: IOS N-PLAN 10x/0.25, IOS N-PLAN 20x/0.40, IOS N-PLAN 40x/0.65, IOS W-PLAN 100x/0.80 (Dry, No Cover). All with anti-fungus treatment. |
|
|
Specimen stage: Double layer rackless mechanical sliding stage, 150x139 mm, 75x33 mm X-Y movement range, accuracy: 0.1 mm. |
|
|
Focusing: Coaxial coarse and fine focusing mechanism with limit stop. Adjustable tension of coarse focusing knob. |
|
|
Condenser: Abbe N.A. 1.25, with objective-coded iris diaphragm, focusable and centerable. |
|
|
Transmitted Illumination (Brightfield): X-LED³ with white 3.6 W LED (6,300 K) and light intensity control. |
|
|
Epi-Fluorescence Illumination: High-efficiency 3.6W LED (peak 465 nm) with intensity control. |
|
|
Fluorescence Attachment: Slider with 3 positions. Includes Blue filterset (B): EX 460-490, DM 505, EM 515LP. Suitable for FITC, GFP, Auramine, etc. |
|
|
Power Supply: Multi-plug 100-240Vac/6Vdc external power supply. |
