Product Description

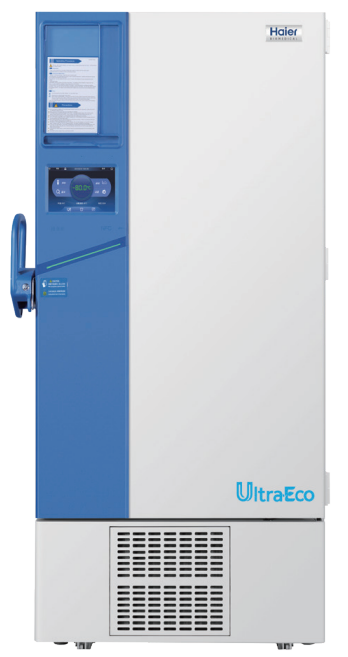

NEW Haier DW-86L730BPT UltraEco ULT Freezer with touchscreen
Redefining Cold Storage Excellence
Super energy-saving technology and precise temperature control. Designed to provide long-term storage for various biological samples and sensitive items to ensure the integrity and stability of precious materials. With its outstanding energy-saving features, it not only reduces electricity consumption but also contributes to a greener environment.
HC refrigerant, frequency conversion technology and optimized structural design combine to lower operating costs compared to previous generation by up to 50%.
ENERGY STAR certified with world-leading energy efficiency

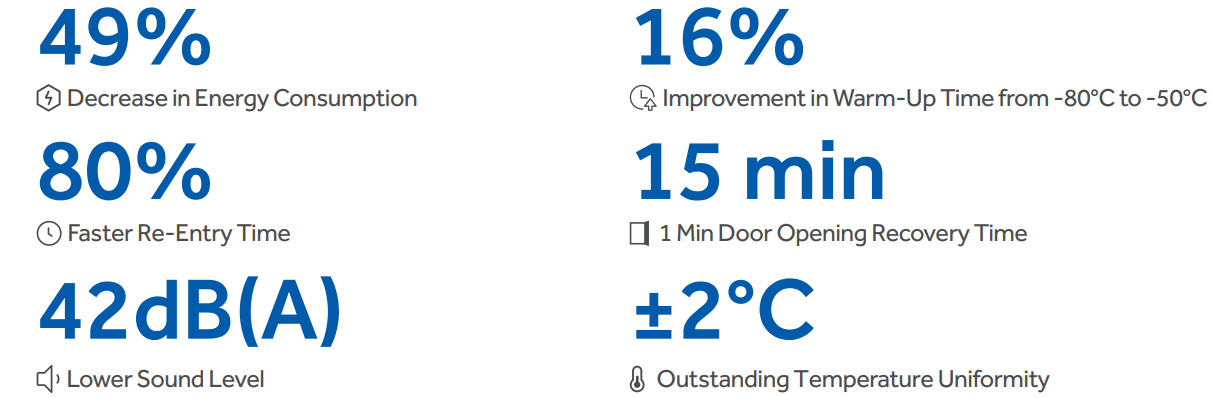

The upgraded compressor, along with the enhanced refrigeration system and improved insulation structure, significantly elevates the performance of UltraEco series. In comparison to the previous generation, UltraEco series features lower energy consumption, a longer holdover time, faster temperature recovery time and re-entry time, as well as reduced noise. All these enhancements will bring customers a completely new experience.
| Model | DW-86L729BPT | DW-86L730BPT |
| Temperature Uniformity (°C) | ±3 | ±2 |

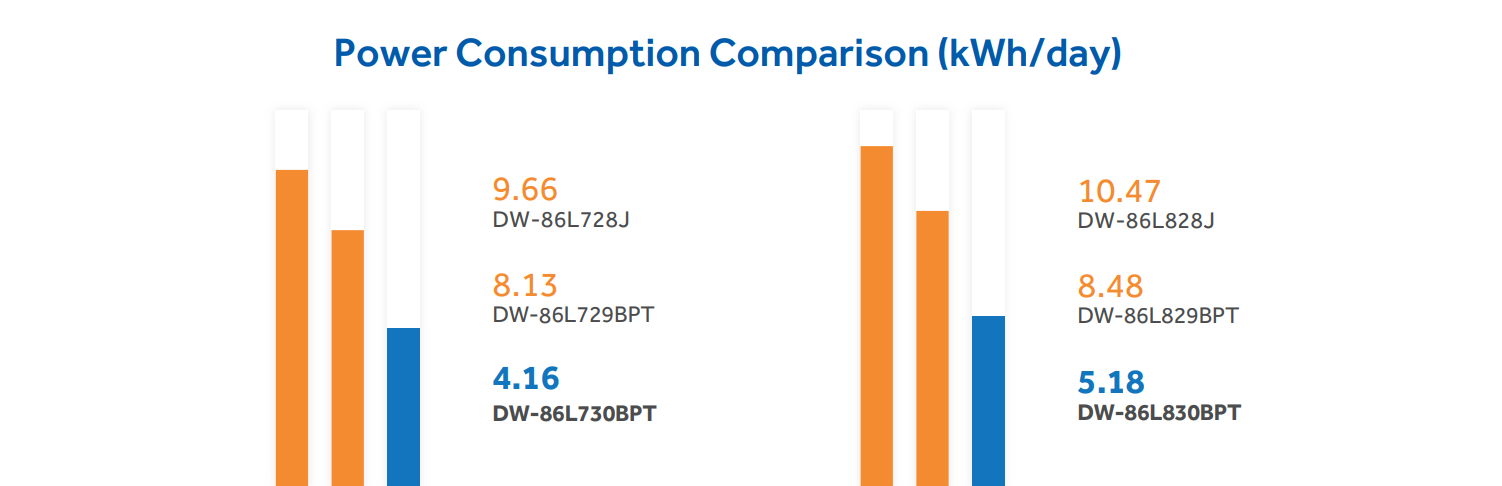

| ENERGY STAR Power Consumption (kWh/day) |
8.13 | 4.16 |
| 1-Minute Open Door Recovery Time (20° C Ambient Running at -75°C)(mins) |
24 | 15 |
| Warm-Up Time at 20° C Ambient (from -80°C to -50°C)(mins) |
300 | 348 |

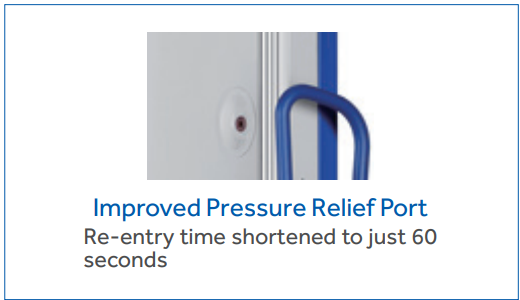

| Re-entry Time (Seconds) | 300 | 60 |
 |
Naturally occurring Hydrocarbon (HC) refrigerants and insulation materials with ultra-low global warming potential (GWP) levels exert an extremely minimal impact on the environment. These are not only eco-friendly but also contribute to a sustainable future by reducing the carbon footprint and safeguarding the delicate balance of our ecosystem. |
- Dual sensors ensure accurate detection of temperature changes, providing double the security for sample storage.
- The self-diagnostic feature of the compressor triggers immediate alarms in case of issues, enabling swift maintenance to prevent sample damage.
- VIP insulation technology provides 6-hour durable thermal retention and safeguards samples during brief power failures.
- Optional built-in independent backup system guarantees sample safety even in the event of a long power outage
 |
 |
 |
 |
 |
Additional information
| PRODUCT | Dw-86L730BPT UltraEco |
|---|---|
| CABINET TYPE | Upright |
| CLIMATE CLASS | N |
| COOLING TYPE | Direct cooling |
| DEFROST MODE | Manual |
| REFRIGERANT | HC |
| NOISE LEVEL (DB) | <42 |
| COOLING PERFORMANCE(℃) | -86 |
| TEMPERATURE RANGE(℃) | -40~-86 |
| CONTROLLER | Microprocessor |

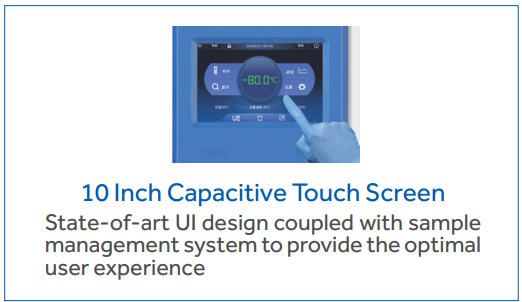

| DISPLAY | Touchscreen LCD |
| POWER SUPPLY(V/HZ) | 100~230/50/60 |
| POWER(W) | 900 |
| CAPACITY(L/CU.FT) | 730/25.8 |
| NET/GROSS WEIGHT Lbs | 694.5/811.3 |
| INTERIOR DIMENSIONS(W*D*H) in | 30.2 x 28.2 x 51.6 |
| EXTERIOR DIMENSIONS(W*D*H) in | 41.2 x 39.3 x 77.6 |
| REMOTE ALARM | Y |
| HIGH/LOW TEMPERATURE | Y |
| HOT CONDENSER | Y |
| POWER FAILURE | Y |
| SENSOR ERROR | Y |
| LOW BATTERY | Y |
| HIGH AMBIENT TEMP | Y |
| DOOR AJAR | Y |
| CASTER | Y(4) |
| LEVELING FEET | Y(2) |
| PORTHOLE | 2 Rear, (15mm)Diameter |
| SHELVES/INNER DOORS | 3/4 |

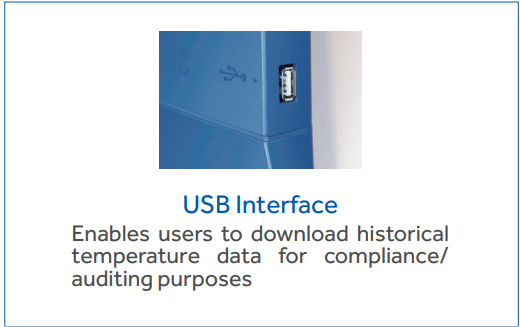

| USB INTERFACE | Y |
| 5V POWER SUPPLY PORT | Y |
| TEMPERATURE RECORDER | Optional |
| 485 PORT | Optional |
| CO2 BACKUP SYSTEM | Optional |
| LN2 BACKUP SYSTEM | Optional |
| CERTIFICATE | CE, UL, ENERGY STAR |
