Product Description

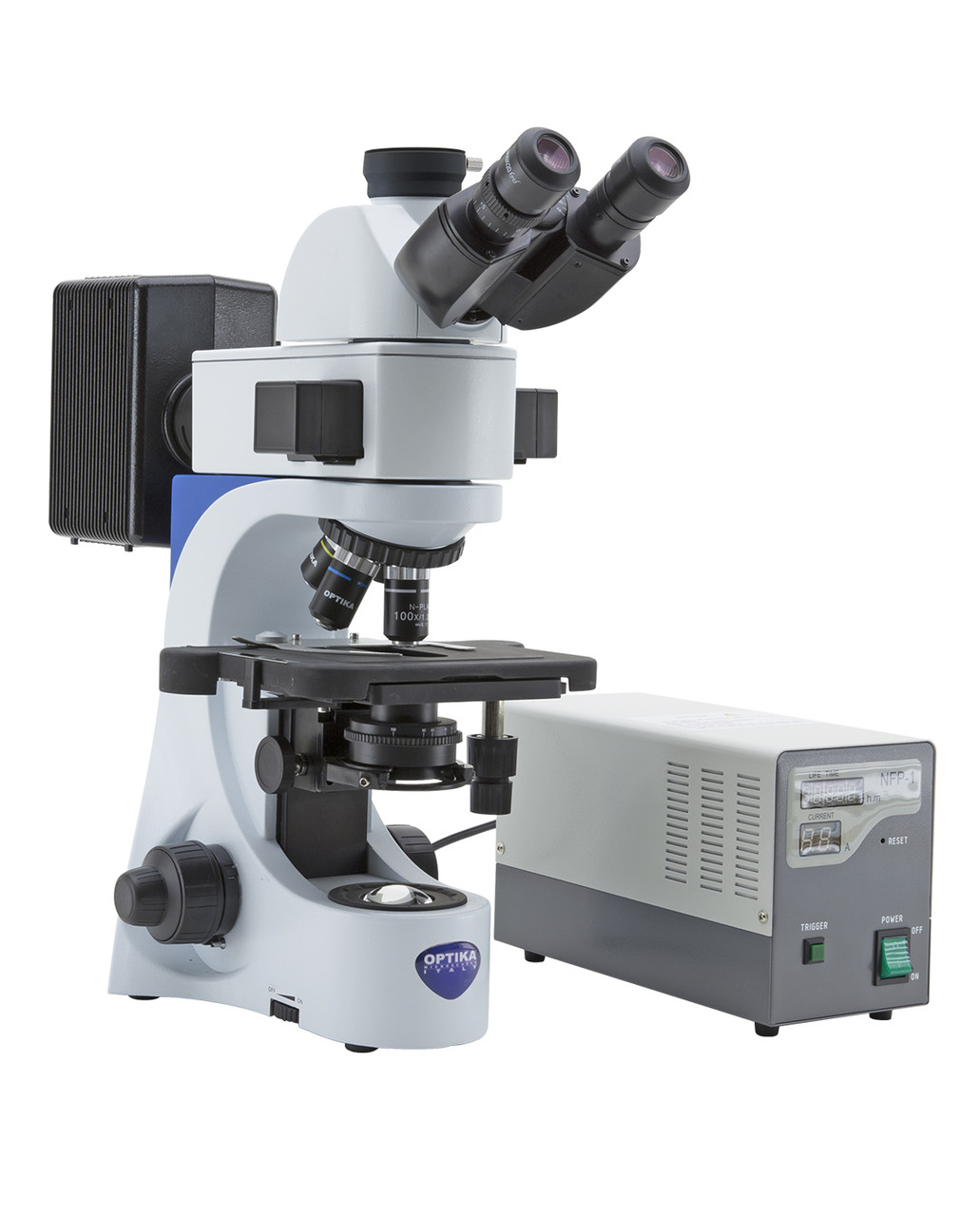

OPTIKA B-383FL
Trinocular HBO Fluorescence Microscope
The OPTIKA B-383FL is a high-performance laboratory microscope designed for both standard brightfield and traditional HBO fluorescence applications. It features a trinocular head for digital documentation and is equipped with a powerful 100W high-pressure mercury lamp (HBO) for epi-fluorescence. This provides outstanding flexibility, covering a wide spectrum for various fluorochromes. For transmitted light, it uses the powerful and efficient X-LED³ system.
Powerful and Flexible Diagnostics
This model is built for demanding laboratory use, featuring high-quality IOS N-PLAN objectives and a large 233x147mm rackless stage. The 3-position fluorescence slider includes standard Blue and Green filter sets, making it ready for common fluorochromes like FITC, GFP, Rhodamine, and TRITC right out of the box. This microscope is an ideal solution for clinical and research laboratories requiring the power and versatility of a traditional HBO lamp.
|
X-LED³ Exclusive Lighting System (Brightfield) |
|
 |
||
|
For brightfield observation, the microscope uses the exclusive X-LED³ lighting source. A special combination of high-efficiency LEDs and an optical system allows OPTIKA to double the light intensity generated by a standard LED. The resulting light is comparable to a 50W halogen lamp but with a color temperature of 6300K, representing sunlight. |
|
|||
 |
|
Mechanical Stage Rackless Stage for Safety and Durability This model is equipped with a large 233x147 mm rackless mechanical stage. This design prevents the rack from protruding, avoiding potential scratches or injuries during use. The movement is smoother, more reliable, and provides a safer working environment. |
Laboratory Grade Optics & HBO Fluorescence
This model is equipped with high-quality IOS (Infinity Corrected) N-PLAN objectives. The epi-fluorescence attachment uses a traditional 100W HBO mercury lamp, providing high-intensity illumination across a broad spectrum, ideal for a wide range of fluorochromes.
 |
Large Specimen View (20 mm Field Number) The F.O.V. (field of view) is based on a comfortable diameter of 20 mm. This means that a wide area of the sample can be inspected and allows a natural and easy view, particularly needed in a laboratory environment. |

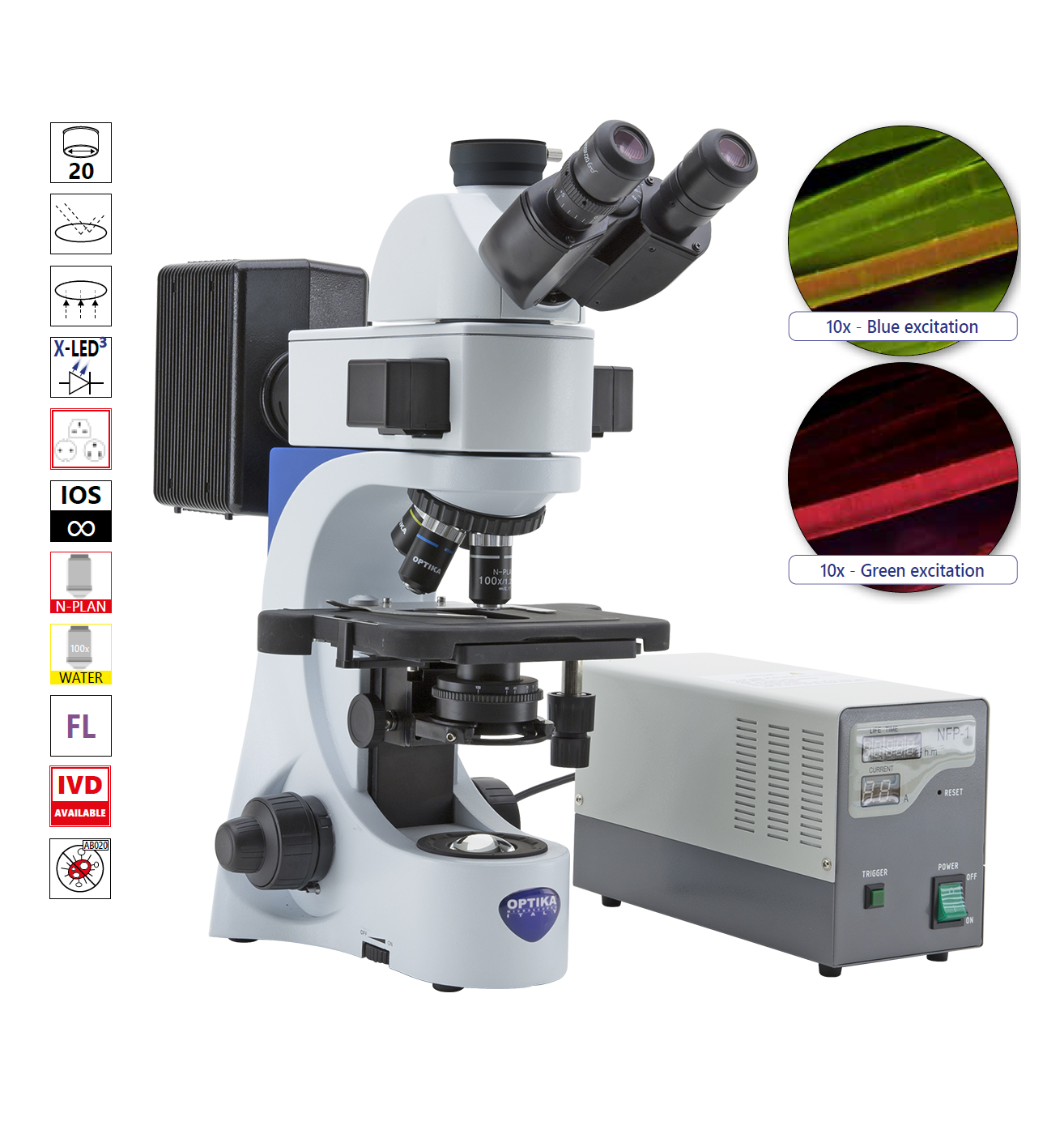

HBO Fluorescence System
The 100W high-pressure mercury bulb (HBO) is the industry standard for flexible fluorescence observation, offering powerful excitation. This model includes a 3-position slider with Blue (FITC/GFP) and Green (TRITC/Rhodamine) filter sets, providing a versatile platform for common research and diagnostic applications.
|
|
Trinocular microscope for HBO fluorescence and brightfield, with IOS N-PLAN objectives, rackless stage, and dual HBO / X-LED³ illumination. |
|
Observation mode: Brightfield, HBO Fluorescence. |
|
|
Head: Trinocular (fixed 50/50), 30° inclined, 360° rotating. Interpupillary distance: Adjustable between 48 and 75 mm. |
|
|
Eyepieces: WF10x/20 mm, high eye-point and secured by screw. |
|
|
Nosepiece: Quintuple revolving nosepiece, rotation on ball bearings. |
|
|
Objectives: IOS N-PLAN 4x/0.10, IOS N-PLAN 10x/0.25, IOS N-PLAN 20x/0.40, IOS N-PLAN 40x/0.65, IOS N-PLAN 100x/1.25 (Oil/Water). All with anti-fungus treatment. |
|
|
Specimen stage: Double layer rackless mechanical stage, 233x147 mm, 78x54 mm X-Y range. |
|
|
Focusing: Coaxial coarse (adjustable tension) and fine focusing mechanism with limit stop. |
|
|
Condenser: Abbe N.A. 1.25, with objective-coded iris diaphragm, focusable and centerable. |
|
|
Transmitted Illumination (Brightfield): X-LED³ with white 3.6 W LED (6,300 K) and light intensity control. |
|
|
Epi-Fluorescence Illumination: HBO 100W high-pressure mercury lamp. |
|
|
Fluorescence Attachment: 3-position filter holder; includes Blue filter set (B: EX 460-490, DM 505, EM 515LP) and Green filter set (G: EX 510-550, DM 570, EM 575LP). |
|
|
Power Supply: Multi-plug 100-240Vac/6Vdc external power supply for microscope and HBO power supply. |
