Product Description

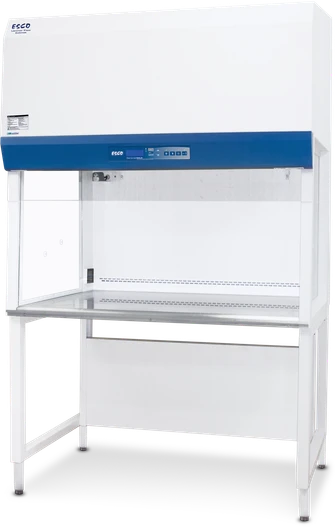

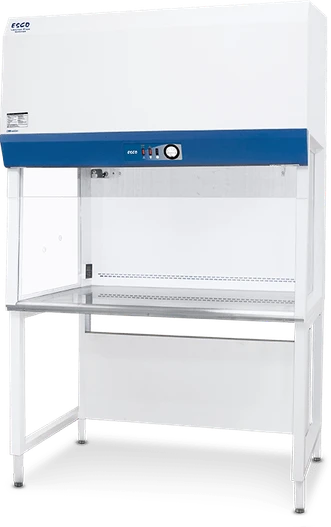

While others rely on traditional PSC motors, the Esco Airstream® Gen 3 Vertical Laminar Flow Cabinet is the only vertical-type clean bench in the market that uses Direct Current Electronically Commutated Motor (DC ECM) technology. Reducing energy costs by up to 70%, these clean benches are the greenest ones yet.
The secret to achieving energy savings through ECM technology lies in its high electrical efficiency and ability to run precisely on programmed speeds. Enjoy low heat and noise emission as well with the Esco Airstream® Gen 3 Vertical Laminar Flow Cabinet.
Esco's laminar air flow cabinet is a product of robust engineering combined with strategic ergonomic design. It provides long-term reliability and ultimate user comfort making it ideal for non-hazardous applications that need a sterile environment
Applications:
- Microbiology (non-pathogenic)
- Forensics
- Sterile product compounding
Features
|
|
High-Quality Construction
|
|
|
Quiet Operation
|
|
|
ULPA Filter
|
|
|
Rocker Switches
|
|
|
Isocide™ Antimicrobial Powder Coating
|
Key Benefits:
- ULPA filter (ISO Class 3 work-zone)
- Energy-efficient DC ECM blower
- Superior airflow uniformity
- Array of cabinet specifications suited for your particular needs
- Spill-retaining worktop design will ensure containment of accidental liquid spills.
- Isocide™ antimicrobial powder coating
- Energy efficient DC ECM Motor that offers 70% energy savings compared to AC Motor; offers stable airflow, despite voltage fluctuations and filter loading.
- New features that still maintains excellent performance but with low noise at 54.5 dBA.
- 10x filtration efficiency of HEPA filter creates ISO Class 3 workzone instead of industry-standard ISO Class 5.
- Each clean bench is individually factory tested for safety and performance in accordance with international standards.
- All components are cleanroom compatible.
- Esco Airstream Laminar Flow Clean Benches have been tested for cross-contamination and product protection using microbiological test method adopted from EN12469
Specifications:
Simple Switches
| Nominal Size | 1.2 meter (4') |
| External Dimensions (W x D x H) |
1340 x 784 x 1270 mm (52.8" x 30.9" x 50.0") |
|
Internal Work Glass Side Model LVG |
1270 x 695 x 689 mm |
|
Internal Work Stainless Steel Side Model LVS |
1270 x 695 x 678 mm (35.4” x 27” x 26.7”) |
| Internal Work Area, Space | 0.8 m² (8.6 ft²) |
| Average Airflow Velocity | 0.45 m/s (90 fpm) at initial setpoint |
| Air Volume |
1471 m3/hr (866 cfm) |
| ULPA Filter Typical Efficiency | > 99.999% at particle size between 0.1 to 0.3μm |
| Sound Emission per IEST-RP-CC002.2* |
52.4 dBA |
| Fluorescent Lamp Intensity at Zero Ambient |
904 Lux (84 foot candles) |
| Electrical Power Rating 9: |
110-130 VAC, 50 / 60Hz, 1 phase 12.5 A |
| Net Weight | 158 Kg (348 lbs) |
| Shipping Weight | 202 Kg (445 lbs) |
| Shipping Dimensions, Maximum (W x D x H)** |
1400 x 900 x 1590 mm (55" x 35" x 62") |
Specifications are subject to change without notice.
*Noise reading in open field condition / anechoic chamber. Noise reading in normal room varies by room size, layout, and background noise, but may reach roughly 3 dBA above these values.
**Cabinet only, excludes optional stand.
