Product Description

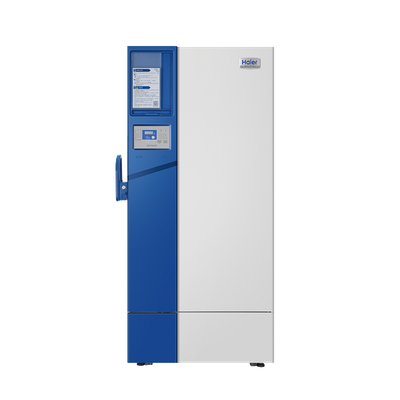

Haier -30℃ Biomedical Freezers - Model: DW-30L528D is specifically designed for storage of virus, germ, erythrocyte, leucocyte, cutis, skeleton, bacteria, semen, biologicals and transoceanic products.
Scope of Application
Ideal for blood banks, hospitals, epidemic prevention services, research institutes, laboratories electronic and chemical, biomedical engineering facilities, and the transoceanic industry...Innovative Design
- Porthole
- Configuration
- Safe and secure
- Low noise design
- Microprocessor-controlled system
Product Advantages
 |
High-efficiency and energy-saving compressor and system |  |
Adjustable storage shelf heigh | |
| High - efficiency hydrocarbon compressor, optimized refrigeration system and low power consumption | Built-in evaporator design, and the shelf height can be adjusted according to the size of the stored articles, so as to realize the efficient use of large space in the cabinet | |||
 |
Green and environmental friendly |  |
Multiple alarm functions | |
| Hydrocarbon refrigerant, energy saving and environmental protection, built with LBA foam insulation, complies with European RoHS Directive | High/Low temperature/door ajar/power failure/sensor error/high ambient temperature alarm and also equipped with remote alarm interface, alarm mode is sound and flash | |||
 |
Superior temperature uniformity | |||
| The temperature uniformity is ±3°C with the setting temperature of -30°C |
Ergonomic Design
 |
Microprocessor-controlled system |  |
Low noise design | |
| Microprocessor control, with temperature display precision at 0.1°C. Internal temperature is adjustable from -10°C to -30°C. Alarm functions include high, low temperature, sensor error, power failure, high ambient, and door ajar. Alarm mode is sound and flash |
Noise-reduction features and structure noise reduction design | |||
 |
Configuration |  |
Safe and secure | |
| Standard: 3 coated steel wired shelves, remote alarm interface Optional: stainless steel shelves, blood basket, drawer, temperature recorder, RS485 or USB (one out of two) |
Equipped with key lock, padlock providing multiple safeguards for sample safety | |||
 |
Porthole | |||
| Two portholes as standard, allows for independent testing of cabinet temperature |
Warranty Information: 3 years on all parts and 5 years on the compressor.
Technical Data
| Type | -30℃ Deep Freeer |
| Cabinet Type | Upright |
| Climate Class | N |
| Cooling Type | Direct cooling |
| Defrost Mode | Manual |
| Refrigerant | HC |
| Noise Lever (dB) | 43 |
Performance
| Cooling performance(℃) | -30 |
| Temperature Range(℃) | -10~-30 |
Control
| Controller | Microprocessor |
| Display | LED |
Electrical Data
| Power Supply(V/Hz) | 115V/60 |
| Power(W) | 430 |
| Electrical Current(A) | 5 |
Dimensions
| Capacity(L/Cu.Ft) | 531/18.8 |
| Net/Gross Weight(approx) | 180/ 205(kg) 396.8/451.9(lbs) |
| Interior Dimensions(W*D*H) | 704*620*1230(mm) 27.7*24.4*48.4(in) |
| Exterior Dimensions(W*D*H) | 940*845*1878(mm) 37.0*33.3*73.9(in) |
| Packing Dimensions(W*D*H) | 1005*940*2040(mm) 39.6*37.0*80.3(in) |
| Container load (20'/40'/40'H) |
10/22/24 |
Functions
| High/Low Temperature | Y |
| Remote Alarm | Y |
| Power Failure | Y |
| Sensor Error | Y |
| Low Battery | N |
| High Ambient Temperature | Y |
| Dirty Condenser | N |
| Door Ajar | Y |
Accessories
| Caster | Y |
| Leveling Feet | Y |
| Porthole | Y |
| Drawers | Optional |
| Adjustable Shelves | Y (3) |
| USB Interface | Optional |
| RS485 |
Optional |
| NFC | N |
| Temperature Recorder | Optional |
| Certificate | UL |
