MMM Friocell EVO Freeze Thaw Chamber -20°C to 100°C 707L / (25.0 ft³)

Product Description

FRIOCELL 707 - EVO line
Freeze-Thaw Climate Chamber

The FRIOCELL^® 707 EVO line is a specialized climate chamber engineered for demanding freeze-thaw cycle testing. With a temperature range extending down to -20°C, it is designed to simulate extreme environmental conditions for materials testing, component stability, and research in industries like automotive, aerospace, construction, and chemistry. The patented cooling and heating system provides rapid and precise temperature ramps, ensuring highly reproducible and accurate test cycles. The EVO line controller offers advanced programming capabilities essential for complex testing protocols.

Advanced Material and Stability Testing

This chamber is specifically configured for simulating harsh environmental changes to test the durability and stability of products and substances. The advanced programming features of the EVO controller allow for precise, automated cycling between extreme temperatures, making it a powerful tool for quality control, material science, and R&D applications where resistance to thermal stress is critical.

• Climate Chamber for advanced freeze-thaw cycle testing
• Chamber volume 707 litres
• Extended Temperature range: from -20°C to 100°C
• Patented cooling system (environment-friendly working medium R 449a) and air flow ensure fast and accurate temperature changes
• Offers high operation comfort and precise control for complex, long-term testing protocols
• Suitable for research in material science, automotive, electronics, and for stability testing of chemicals and other substances.
• EVO line design with an intuitive 5.7" color touch screen, multi-level user administration, and extensive data logging capabilities (FDA 21 CFR Part 11 compliant).
• Wide selection of optional equipment and accessories
• Output for connecting a printer or PC
• Possibility of validation (IQ, OQ)

Pharmaceutical-Grade Stainless Steel

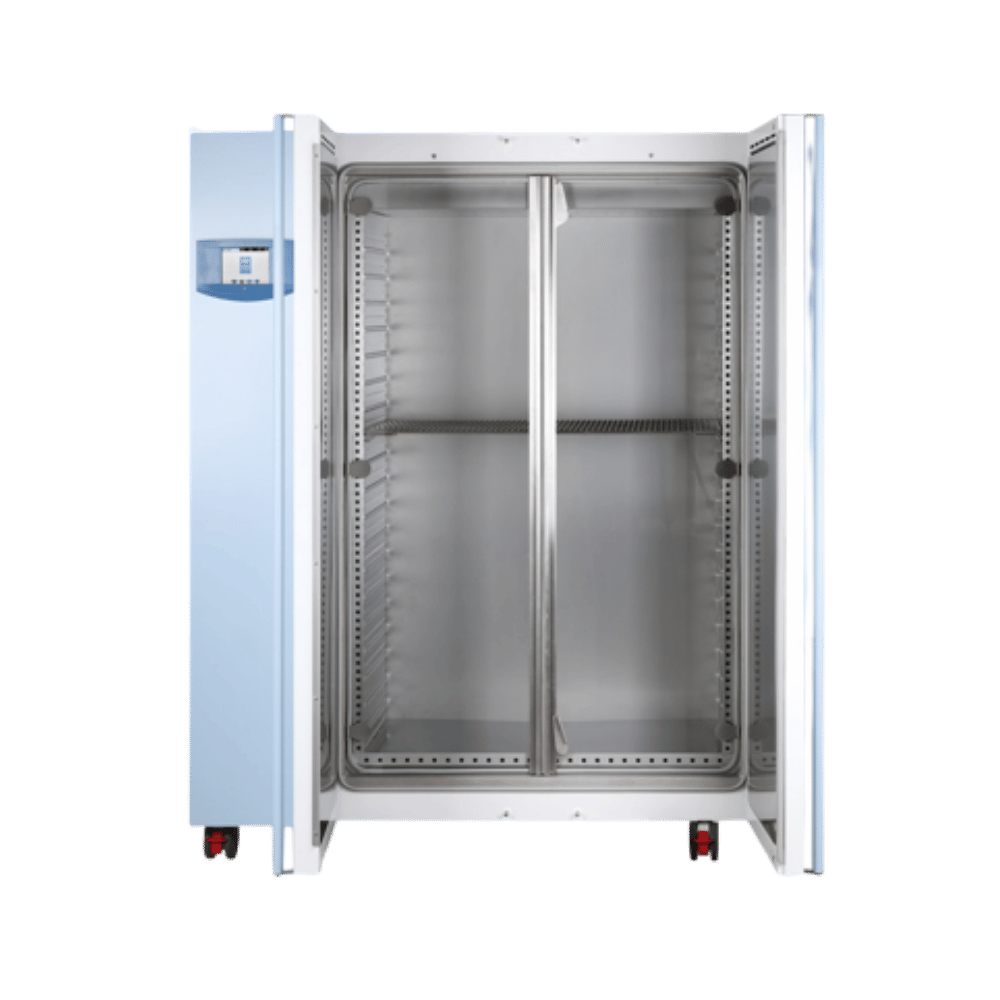

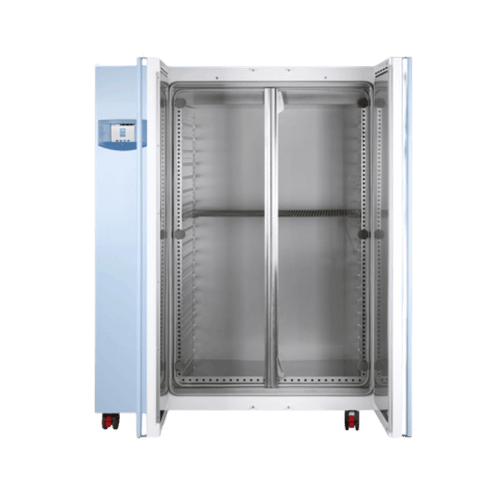

The Friocell is constructed with a pharmaceutical-grade AISI 304 stainless steel chamber packed with 5 layers of insulation for improved durability, temperature uniformity, and operating efficiency. The inner chamber is seamless with rounded corners and fully removable for easier cleaning and sterilization. The chamber door is equipped with a patented 4-point closing system that seals the door to the chamber gasket and enables hands-free opening and closing.
AISI 304 stainless steel chamber – 316L stainless steel option available		Double-wall chamber construction, featuring five layers of insulation, efficiently maintains uniform internal conditions
Removable inner chamber, featuring a seamless, rounded-corner design, simplifies cleaning and sterilization.		(2″) 50 mm stainless steel port – (1″) 25mm, (2″) 50mm, (4″) 100mm access port options available.
Shelf brackets are molded into the chamber walls and spaced 2.8″ apart.		Inner glass doors allow viewing into the chamber without affecting internal conditions.
4-point closing system securely seals the door to the chamber gasket.

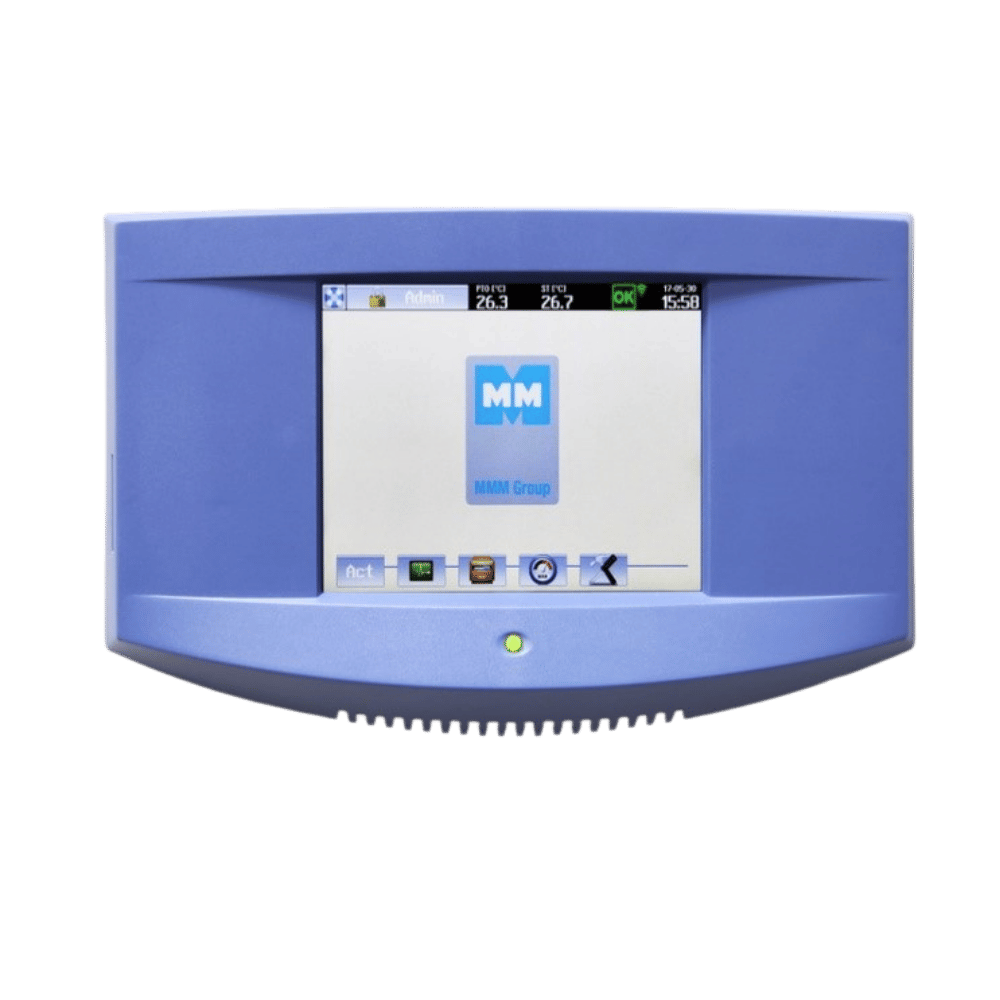

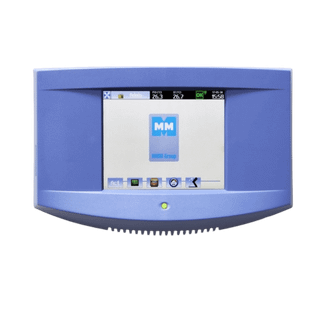

	5.7″ color touchscreen – glove friendly operation		Fuzzy logic enabled microprocessor
	100 programs / 100 segments each for varying loads and parameters, unlimited cycles		Real-time programming and cycling with temperature ramping settings included
	Graphic display of cycle parameters		Optional Ethernet port & WiFi connectivity
	Delayed heating start & stop function		Digital safety thermostat
	Acoustic and digital alarms		Integrated data logger – FDA CFR 21 Part 11
	Constant monitoring of chamber conditions		RS 232 port
	USB port & SD card slot with Microsoft Excel formatted data storage		Remote access with multi-level authentication – FDA CFR 21 Part 11 compliant
	DIN 12880 digital safety thermostat
