Product Description

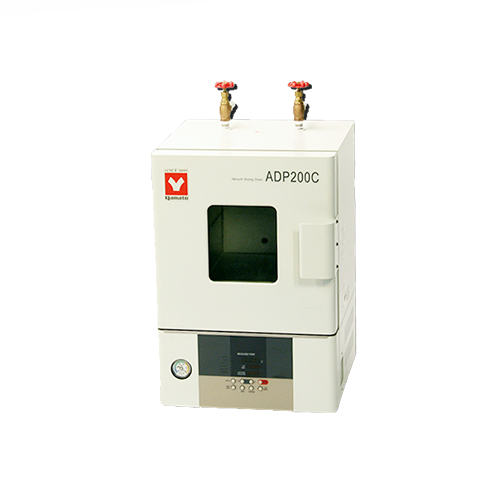

The Yamato ADP-200C is a 10 L vacuum drying oven. Pulling the chamber down to 0.1 kPa (1 Torr) drops the boiling point of whatever solvent you are removing, so the sample dries at a far lower temperature than it would in open air — and dries all the way through, including pores and cavities a convection oven never reaches.
That is the whole reason to own one: heat-sensitive materials, hygroscopic powders, electronic assemblies, and anything where oxidation during drying is the failure mode. Operating range is 40 to 240 °C with ±1.5 °C control at the top end.
Key Features
- Vacuum range from atmospheric down to 0.1 kPa (1 Torr)
- Direct chamber heating with mica heater — no fan, no particle movement
- Built-in Bourdon tube vacuum gauge
- 12 mm tempered glass window with polycarbonate safety plate
- Timer to 999 hours with digital display
- Stainless steel chamber, 2 steps / 65 mm pitch
Technical Specifications
| Specification | ADP-200C |
|---|---|
| System | Vacuum drying by decompressed chamber, direct heating |
| Operating temperature range | 40 °C to 240 °C |
| Operating pressure range | 101 to 0.1 kPa (760 to 1 Torr) |
| Temperature control accuracy | ±1.5 °C (at 240 °C) |
| Maximum temperature reaching time | Approx. 70 min |
| Internal capacity | 10 L |
| Internal dimensions (W × D × H) | 200 × 250 × 200 mm |
| External dimensions (W × D × H) | 400 × 412 × 603 mm |
| Interior material | Stainless steel |
| Heat insulating material | Rock wool |
| Heater | Mica heater, 0.68 kW |
| Temperature controller | PID control by microprocessor |
| Sensor | K thermocouple |
| Temperature setting method | Digital setting by ▲▼ keys |
| Display | Measured temp.: green LED · set temp.: red LED |
| Timer | 1 min to 99 h 59 min, and 100 h to 999 h 50 min |
| Observation window | 12 mm tempered glass with polycarbonate resin plate |
| Vacuum gauge | Bourdon tube type, 0 to 0.1 MPa gauge pressure |
| Vacuum port | 18 mm O.D. |
| Shelf load capacity | 15 kg per shelf |
| Shelf positions / pitch | 2 steps / 65 mm pitch |
| Power source | AC115V 6A, 50/60 Hz (with plug) |
| Unit weight | 30 kg (66 lb) |
| Shipping weight | 145 lb |
| Manufacturer part number | ADP-200C |
| GTIN | 797059926756 |
| Country of origin | China |
Safety Features
- Self-diagnostics: heater, sensor, SSR short circuit and automatic overheat prevention
- Independent overheating prevention device
- Overcurrent electric leakage breaker
What’s Included
- 2 aluminium perforated shelf plates
- Instruction manual
- One year manufacturer warranty
Note on vacuum pumps
A vacuum pump is required and is not included. Pump selection depends on the solvent being removed and the pumpdown time you need. Contact Pro Lab Supply and we will size it with you.
Compliance
- Manufactured under ISO 9001:2015, ISO 14001:2015 and ISO 45001:2018
- US Harmonized Tariff code 8514.19.0000 · ECCN EAR99
For quotations, freight to your location, pumps and volume pricing, contact Pro Lab Supply.
