Product Description

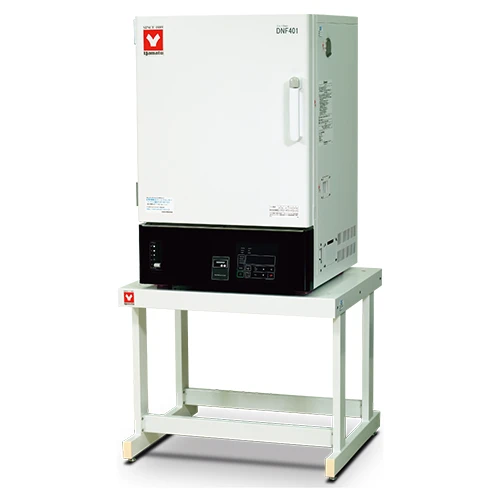

The Yamato DNF-401 is a 90 L programmable oven whose defining feature is not the temperature range but the air velocity control: 10 steps from 600 to 1500 rpm. Fan speed stops being a fixed property of the oven and becomes a parameter you set, like temperature.
That matters when what you are drying can be blown around or dried too fast. Turn the fan down and the surface does not skin over before the core is dry; turn it up and you cut cycle time. At air velocity 0 the oven runs as a true natural convection oven up to 120 °C — two ovens in one cabinet, which is why this line can replace a separate gravity oven on the bench.
Key Features
- 10-step air velocity control, 600 to 1500 rpm
- Air velocity 0 switches the oven to natural convection up to 120 °C
- ±0.3 °C control accuracy and ±2.5 °C distribution at 260 °C
- Manual damper for circulation or full ventilation, with interlocked intake and exhaust
- Door switch cuts the fan and heater when the door is opened
- On-screen power consumption, CO₂ discharge and heater operating time
- 90 L stainless chamber, 11 steps / 30 mm pitch
Technical Specifications
| Specification | DNF-401 |
|---|---|
| Circulation method | Forced convection + natural convection (selectable) |
| Temperature setting range | 0 to 130 °C at air velocity 0 · 0 to 270 °C at air velocity 1–10 |
| Temperature control range | Room temp. +25 to 120 °C at air velocity 0 · room temp. +15 to 260 °C at air velocity 1–10 |
| Air velocity control | 10 steps (600–1500 rpm) plus air velocity 0 |
| Control accuracy — forced | ±0.3 °C (at 260 °C) |
| Control accuracy — natural | ±0.3 °C (at 120 °C) |
| Fluctuation — forced | ±0.5 °C (at 260 °C) |
| Fluctuation — natural | ±0.8 °C (at 120 °C) |
| Distribution — forced | ±2.5 °C (at 260 °C) |
| Distribution — natural | ±3 °C (at 120 °C) |
| Temperature gradient | 7 °C (at 260 °C) |
| Ambient operating range | 5 °C to 35 °C |
| Internal capacity | 90 L |
| Internal dimensions (W × D × H) | 450 × 450 × 450 mm |
| External dimensions (W × D × H) | 580 × 645 × 890 mm |
| Chamber | Stainless steel |
| Exterior | Cold rolled steel paneling, chemical-proof baked finish |
| Heater | Stainless steel tube heater, 0.6 kW × 2 |
| Damper | Manual circulation / ventilation switching, interlocked intake and exhaust |
| Door | Single swing door (left hinge) |
| Door switch | Fan motor and heater cut when the door opens |
| Cable port | 33 mm I.D. × 1 (right side) |
| Exhaust port | 50 mm O.D. × 1 (rear) |
| Inlet port | 33 mm I.D. × 1 (right side) |
| Controller | Model V type, PID Z control |
| Shelf load capacity | 15 kg per shelf |
| Shelf positions / pitch | 11 steps / 30 mm pitch |
| Power source | AC115V 11A, 50/60 Hz (with plug) |
| Unit weight | 75 kg (165 lb) |
| Shipping weight | 235 lb |
| Manufacturer part number | DNF-401 |
| GTIN | 797059926619 |
| Country of origin | China |
Safety Features
- Self-diagnostic functions with alarm
- Independent overheat prevention device
- Door switch interlock on fan motor and heater circuit
- Earth leakage breaker with short circuit and overcurrent protection
What’s Included
- 2 shelf plates / 4 brackets
- Instruction manual
- One year manufacturer warranty
Compliance
- Manufactured under ISO 9001:2015, ISO 14001:2015 and ISO 45001:2018
- US Harmonized Tariff code 8514.19.0000 · ECCN EAR99
Note: with the damper fully open for complete exhaust the oven cannot reach 260 °C.
