Product Description

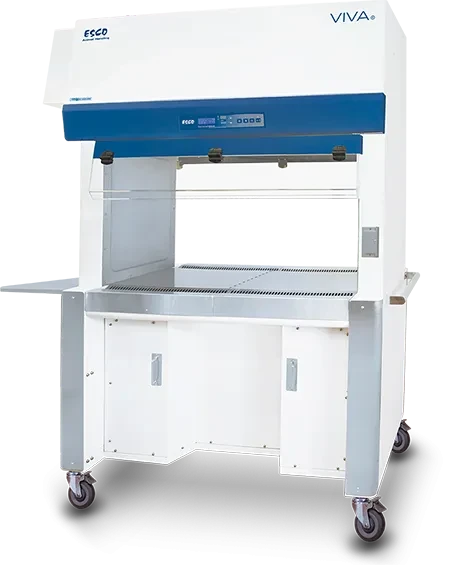

VIVA® Dual Access Animal Containment Workstation
The VIVA Dual Access Animal Workstation is a recirculating containment workstation for cage transfer and animal handling. It is not a biological safety cabinet: it protects the operator and the environment from animal dander, allergens and anesthetic gases, with ELISA-verified containment above 99%. Two people can work facing each other through the dual access opening, or a polycarbonate front cover converts it to single-person operation.
Key Features
 | Sentinel™ Gold Microprocessor Controller All safety information on one screen, centered and angled down for easy reach and viewing, with a selectable quickstart mode for fast operation. |
 | Large 14" Access Opening A 344 mm opening that accommodates rat and mouse cages, hinged up for easy cleaning, with dual access so two people can work from either side. |
 | Easy-to-Clean Work Surface and Drain Pan Two-piece, easy-to-lift stainless steel tray with a drain hole on both sides for dumping animal bedding. |
 | Advanced Work Tray Design V-shaped grill to avoid blocking, a center grill that separates the clean and contaminated areas, and a large tray handle for easy lifting. |
 | ULPA Filter with Activated Carbon Pre-Filter Ten times the filtration efficiency of HEPA, creating an ISO Class 3 work zone. An impregnated activated carbon pre-filter removes unpleasant odors. |
 | Isocide™ Antimicrobial Coating Silver-ion impregnated powder coat inhibits microbial growth to improve safety. |
Specifications
| Nominal Size | 1.2 m (4 ft) |
|---|---|
| External Dimensions (W × D × H) | 1343 × 765 × 1965 mm minimum height (52.8" × 30.1" × 77.4") 1343 × 765 × 2249 mm maximum height (52.8" × 30.1" × 88.5") |
| Internal Work Area (W × D × H) | 1110 × 468 × 573 mm (43.7" × 18.4" × 22.6") |
| Access Opening | 344 mm (14") |
| Knee Space | 254 mm (10") on both sides |
| Inflow Velocity | 0.19 ± 0.025 m/s (37 ± 5 fpm) |
| Downflow Velocity | 0.24 ± 0.025 m/s (48 ± 5 fpm) |
| Pre-Filter | Disposable, non-washable polyurethane impregnated with carbon |
| ULPA Filter Efficiency | >99.999% for particle size between 0.1 and 0.3 micron, per IEST-RP-CC001.3 |
| Sound Emission per EN 12469 | 53 dBA |
| LED Lamp Intensity | 1725 lux (160 foot candles) |
| Construction, Main Body | 1.5 mm (0.06") 16 gauge electro-galvanized steel with Isocide™ oven-baked epoxy-polyester powder coated finish |
| Electrical Rating | 110–130 VAC, 50/60 Hz, 1Ø |
| Power Consumption | 210 W |
| Height Adjustment | Electric hydraulic, adjustable work surface height |
| Shipping Dimensions, Maximum (W × D × H) | 1450 × 850 × 2250 mm (57.1" × 33.5" × 88.6") |
| Shipping Weight | 350 kg (772 lb) |
| Shipping Volume, Maximum | 3.16 m³ (111.6 cu ft) |
Recommended Accessories
| VDA-001 | Stainless steel foldable side shelf kit. |
|---|---|
| VDA-004 | Polycarbonate front cover for the 4 ft model, for single-person operation. |
| VDA-006 | Stainless steel feed hopper. |
Accessories are quoted separately. Contact us for a configured quote.
Certifications
ISO 14644.1 Class 3, Worldwide · JIS B9920 Class 3, Japan · JIS BS5295 Class 3, Japan · US Fed Std 209E Class 1, USA · EN 1822 (H14), Europe · IEST-RP-CC001.3, USA · IEST-RP-CC007, USA · IEST-RP-CC034.1, USA · UL 61010A-1, USA · CSA C22.2 No. 1010-192, Canada · EN 61010-1, Europe · IEC 61010-1, International
Other Animal Research Workstations
See the VIVA G4 Class II Type A2 Animal Biosafety Cabinet when product and environmental protection are also required, or the VIVA Bedding Disposal Workstation for cage changing and bedding dumping.
