Product Description

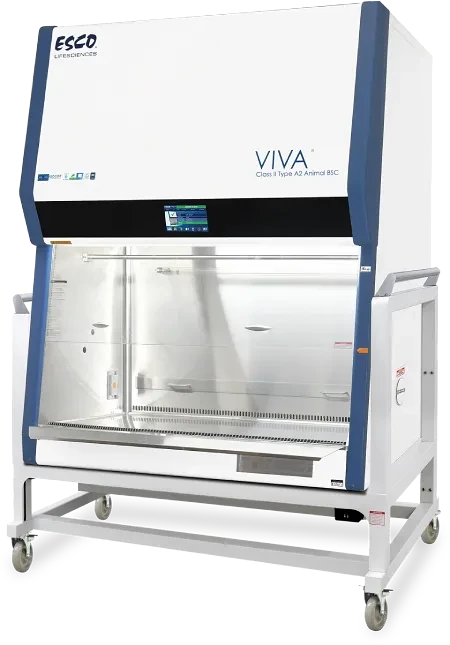

VIVA® G4 Class II Type A2 Animal Biosafety Cabinet
The Esco VIVA G4 is a Class II Type A2 biological safety cabinet built specifically for animal research. A 12" sash working height clears mouse and rat cages, while ULPA filtration and ELISA-verified containment shield the operator from animal dander, allergens, anesthetic gases and pathogens during handling. Personnel, product and environmental protection meet NSF/ANSI 49 for this model.
Key Features
 | Centurion 7" Capacitive Touchscreen All safety information on one screen, with 3D illustration of cabinet parameters, large glove-friendly buttons and self-guidance for specific situations. Angled down for easy reading. |
 | 12" Sash Working Height A 305 mm working opening sized for mouse and rat cages, with a maximum sash opening of 575 mm for loading and cleaning. |
 | ULPA Filtration, ISO Class 3 Ten times the filtration efficiency of HEPA, creating an ISO Class 3 work zone instead of the industry-standard ISO Class 5. Same ten-year filter life and replacement cost as HEPA. |
 | Dimmable LED Lighting At least 1000 lux (93 foot candles) across the work zone, dimmable to reduce glare and optimize comfort during long procedures. |
 | USB Port and Zero Volt Relay Contact USB port sends operational data to a Building Management System. The zero volt relay turns the exhaust blower on and off and signals the building alarm. |
 | User-Friendly Work Tray Largest usable area in the class, recessed to contain spillage, with a sloped perimeter for easy cleaning and support beams that spread the load evenly for less vibration. |
 | Isocide™ Antimicrobial Coating Silver-ion impregnated powder coat on the external body inhibits microbial growth on cabinet surfaces. |
Specifications
| Esco Item Code | 2011862 |
|---|---|
| Nominal Size | 1.2 m (4 ft) |
| Internal Work Area (W × D × H) | 1220 × 625 × 720 mm (48.0" × 24.6" × 28.3") |
| Working Area | 0.63 m² (6.8 sq ft) |
| External Dimensions with SLC Stand (W × D × H) | 1487 × 882 × 2027–2535 mm (58.6" × 34.7" × 79.8"–99.8") |
| Working Opening (Sash Height) | 305 mm (12") |
| Maximum Sash Opening | 575 mm (22.6") |
| Inflow Velocity | 0.53 m/s (105 fpm) |
| Downflow Velocity | 0.30 m/s (60 fpm) |
| Inflow / Exhaust Volume, Without Ducting | 710 m³/h (420 cfm) |
| Downflow Volume | 771 m³/h (461 cfm) |
| Required Exhaust with Optional Thimble | 756 m³/h (445 cfm) |
| Filtration | ULPA, >99.999% at 0.1 to 0.3 micron per IEST-RP-CC001.3 |
| Sound Emission | 60 dBA per NSF/ANSI 49 |
| Lighting | Dimmable LED, ≥1000 lux (≥93 foot candles) |
| Main Body Construction | Electro-galvanized steel, 1.5 mm (16 gauge), Isocide™ oven-baked epoxy-polyester powder coat |
| Work Zone Construction | Stainless steel type 304, no. 4 finish, 1.5 mm (16 gauge) |
| Sash Window | 6 mm UV-absorbing tempered glass |
| Electrical Rating | 110–120 VAC, 50/60 Hz, 1Ø |
| Nominal Power | 240 W |
| Heat Load | 819 BTU/hr |
| Cabinet Full Load Amps | 10 A (excluding 5 A electrical outlets) |
| Net Weight, Cabinet with Stand | 287 kg (633 lb) |
| Shipping Weight, Cabinet with Stand | 360 kg (722 lb) |
| Shipping Dimensions, Cabinet Excluding Stand | 1490 × 950 × 2120 mm (58.7" × 37.4" × 83.5") |
| Shipping Volume, Excluding Stand | 3 m³ (105.9 cu ft) |
Recommended Accessories
| SLC-4A2-G4 | 4 ft low-height cradle stand with motorized hydraulic auto-lift, 115 VAC. Sold separately and required unless the cabinet is placed on an existing bench. |
|---|---|
| UV-30A | UV lamp kit with one 36" bulb, one per cabinet, field installed. |
| SF-2U-22 / SF-2U-40 | Universal service fixture kit with ball valve for air, vacuum or gas. |
| EO-HA | Single plug Type-A non-GFCI electrical outlet. |
| MEWREST | PVC arm rest padding. |
| Pipette Storage Shelf | Stainless steel 304, 200 × 250 × 400 mm, with clamps. |
| IQOQ | Installation and Operational Qualification, documentation only or documentation plus execution by Esco. |
Accessories are quoted separately. Contact us for a configured quote.
Certifications
NSF/ANSI 49 · UL 61010-1 3rd Edition, USA · CSA C22.2 No. 61010-1, Canada · IEC 61010-1, Worldwide · ISO 14644.1 Class 3 · US Fed Std 209E Class 1, USA · JIS B9920 Class 3, Japan · EN 1822 (H14), Europe · IEST-RP-CC001, USA
Other Esco Biosafety Cabinets
For general laboratory work rather than animal handling, see the Airstream NS G4 with Centurion touchscreen, the Airstream Reliant G4 with rocker switch controls, or the Labculture G4 with a 10" sash.
