Product Description
⚠ 220-230V only. This model is not available in a 110V version. Please confirm your facility’s power supply before ordering — call us at +1 305 600 0444.

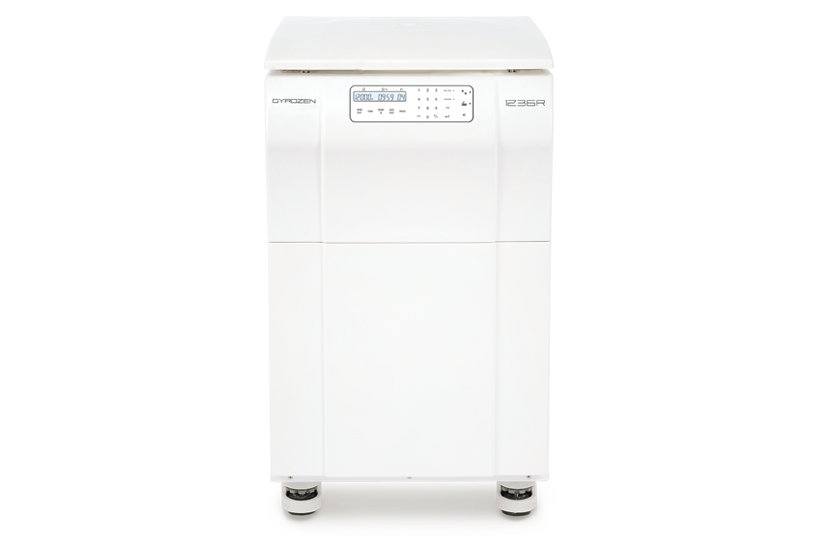

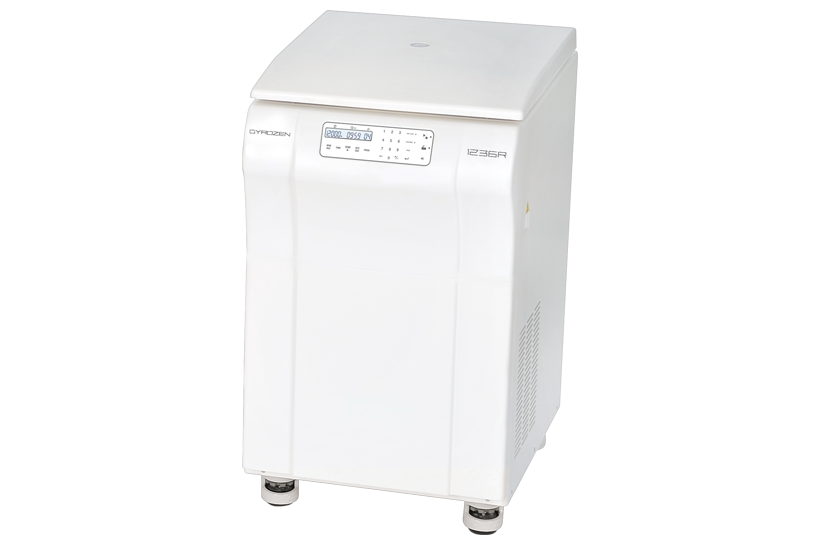

The Gyrozen 1236R is a refrigerated floor-standing multi-purpose centrifuge. It reaches 12,000 rpm (16,582 x g) with fixed-angle rotors and 5,000 rpm (5,394 x g) with swing-out rotors, holding up to 6 x 85 mL or 30 x 1.5/2.0 mL tubes and 4 x 250 mL, 4 x 12 x 15 mL or 4 x 4 microplates. Temperature control from −20 °C to 40 °C with fast-cool to 4 °C in five minutes. Four casters make the unit easy to reposition. Supplied without rotor.
- Max. speed 12,000 rpm / 16,582 x g with fixed-angle rotors
- Temperature range −20 °C to 40 °C with fast-cool button
- Floor-standing cabinet on four casters for easy movement

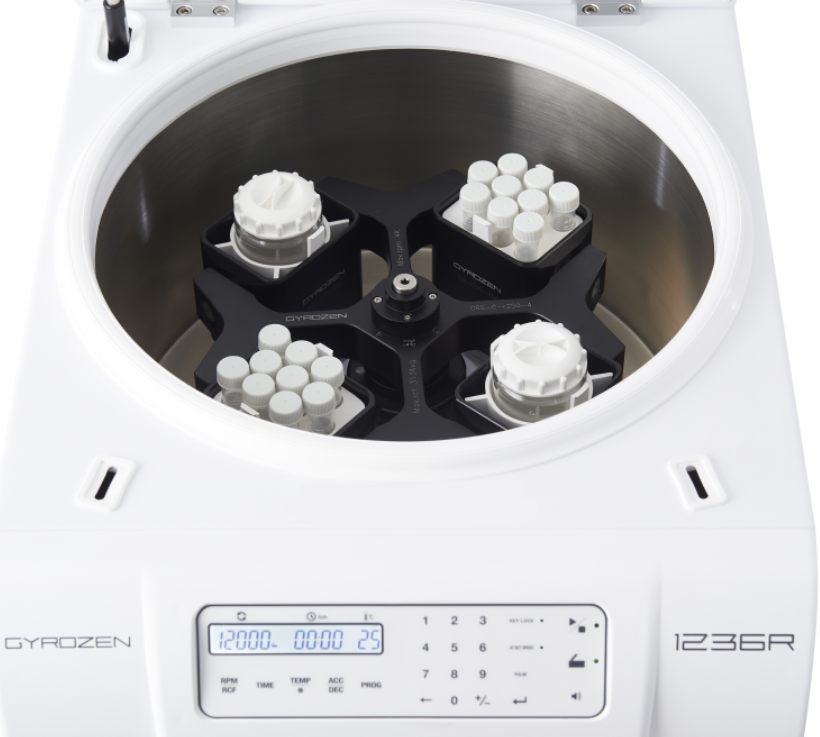

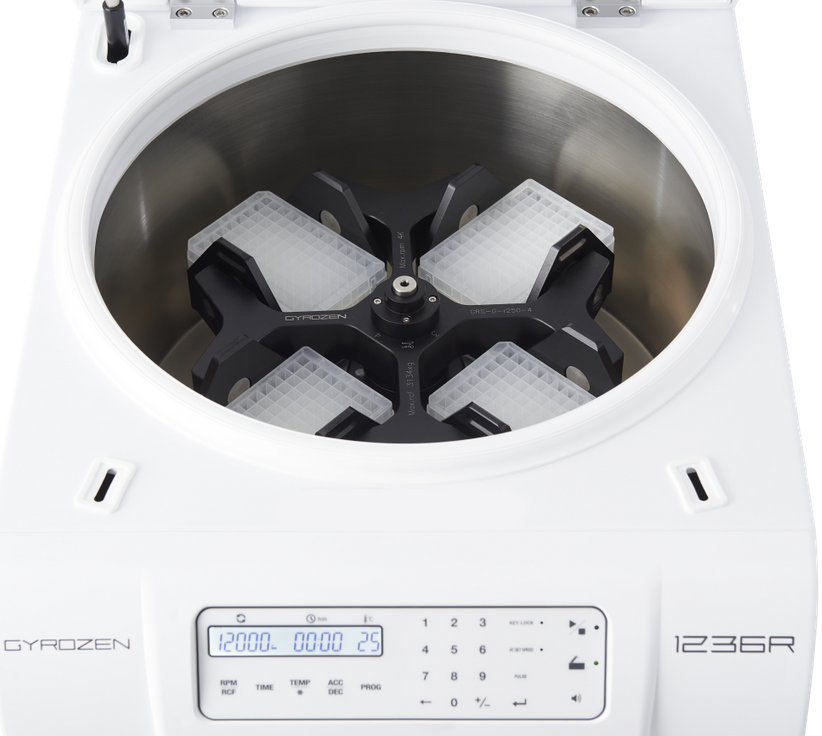

- Swing-out capacity 4 x 250 mL, 4 x 12 x 15 mL or 4 x 4 microplates
- Compressor-off function when the lid is open
Eco-Friendly Technology
- Automatic compressor-off function when the lid is opened, reducing unnecessary cooling and frost build-up
- Fast-cooling function: temperature drop to 4 °C within 5 minutes for a quick start with cooled samples
- Anti-vibration and air-cooling system that minimises noise and heat dissipation
Fully-Functioning Safety Architecture
- Automatic rotor detection with warning for imbalance, excess speed and over-heating
- Imbalance detection with cut-off and imbalance error counting
- Lid drop protection and emergency lid-lock release for power blackout or sudden stoppage
- Autoclavable and corrosion-free rotors
- With motorized lid mechanics, only a gentle touch is sufficient to close and open the lid
- Key lock function keeps the set parameters secured during operation
Intuitive And Refined Control
- Intuitive control interface with numeric input buttons and graphic pictograms
- Selectable time counting: “At Set Speed” or “From Starting”
- A separate “PULSE” key for quick spin
- Stores up to 100 user-defined programs, with 9 acceleration and 10 deceleration ramps
- Automatic RPM/RCF conversion; parameters can be changed during operation
What’s in the Box
- 1236R centrifuge unit (220-230 V, 60/50 Hz)
- No rotor included. Rotors, buckets and adaptors are ordered separately — see the compatibility table below
Technical Specifications
| Max. RPM / RCF (Fixed angle) | 12,000 rpm / 16,582 x g | RPM/RCF conversion | Yes |
| Max. RPM / RCF (Swing-out) | 5,000 rpm / 5,394 x g | ACC / DEC ramps | 9 / 10 |
| Max. capacity (Fixed angle) | 6 x 85 mL, 30 x 1.5/2.0 mL | Program memory | 100 |
| Max. capacity (Swing-out) | 4 x 250 mL, 4 x 12 x 15 mL, 4 x 4 MTPs | Power supply | AC 220-230 V, 60/50 Hz |
| Temp. range | −20 °C to 40 °C | Power requirement | 2.5 kVA |
| Fast cool button | Yes | Dimension (W x D x H) | 473 x 620 x 830 mm (18.6 x 24.4 x 32.7 in) |
| Time control | Pulse, timed < 10 hr or continuous | Net weight | 110 kg (242.5 lb) |
| Time counting range | Selectable, at set speed or from starting | CE mark | Yes |
| Noise level (rotor dependent) | ≤ 60 dB | Cat. No. | GZ-1236R |
Compatible Rotors & Accessories
Rotors marked BIO-SAFE feature a green sealing lid that provides bioaerosol containment — recommended for clinical diagnostics and BSL-2 laboratories.
| Rotor Type | Rotor Cat. No. | Rotor Capacity | Tube capacity | Max. RPM / RCF | Price |
|---|---|---|---|---|---|
| Fixed Angle Rotor | GRA-G-15-24 | 24 x 15 ㎖ / 24 x Φ16 VT | Φ13 VT, 5, 14 | 4,000 / 3,134 | $826 |
| Fixed Angle Rotor | GRF-G-50-8 | 8 x 50 ㎖ | 15, c15, c25, 30 | 12,000 / 16,582 | $2,144 |
| Fixed Angle Rotor | GRF-G-85-6 | 6 x 85 ㎖ | 15, c15, c25, 30, 50, c50 | 10,000 / 12,298 | $2,072 |
| Fixed Angle Rotor | GRF-G-c15-12 | 12 x 15 ㎖ conical | 5 ㎖ with adapters | 12,000 / 16,582 | $2,653 |
| Fixed Angle Rotor | GRF-G-c50-8 | 8 x 50 ㎖ conical | c15, c25, 30, 50 | 10,000 / 12,298 | $2,497 |
| Fixed Angle Rotor | GRF-G-m2.0-30 | 30 x 1.5 / 2.0 ㎖ | 0.2 / 0.5 ㎖ with adapters | 12,000 / 15,520 | $963 |
| Swing-out Rotor | GRS-G-100-6 | — | GLBB-b100-100 / GLB-dc50-100 / GLB-15-8-100 / GLBB-bd15-100 / GLBB-bdc15-100 | — | $986 |
| Swing-out Rotor | GRS-G-250-4 | — | GLB-250-250 | — | $1,075 |
| Swing-out Rotor | GRS-G-r250-4 | — | GLB-r250-250 / GLP-mw-r250 | — | $1,075 |
All rotors sold separately. Contact us at +1 305 600 0444 for configuration assistance.
