Product Description

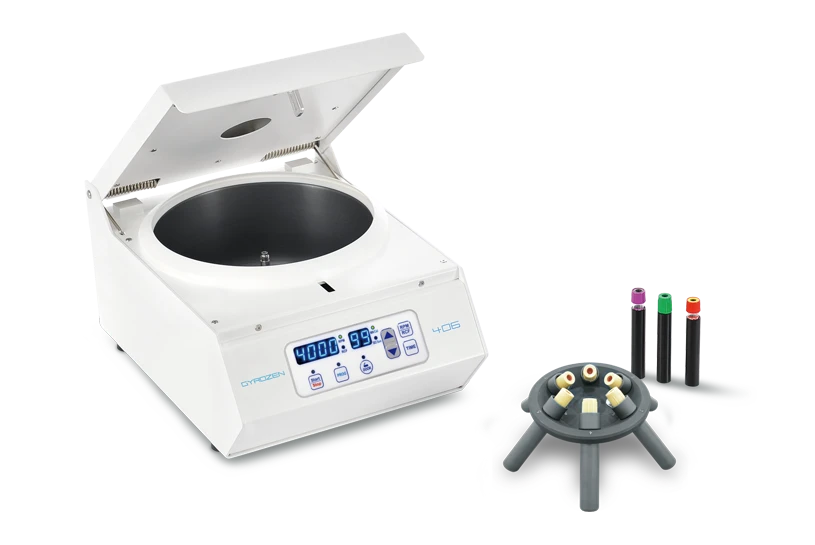

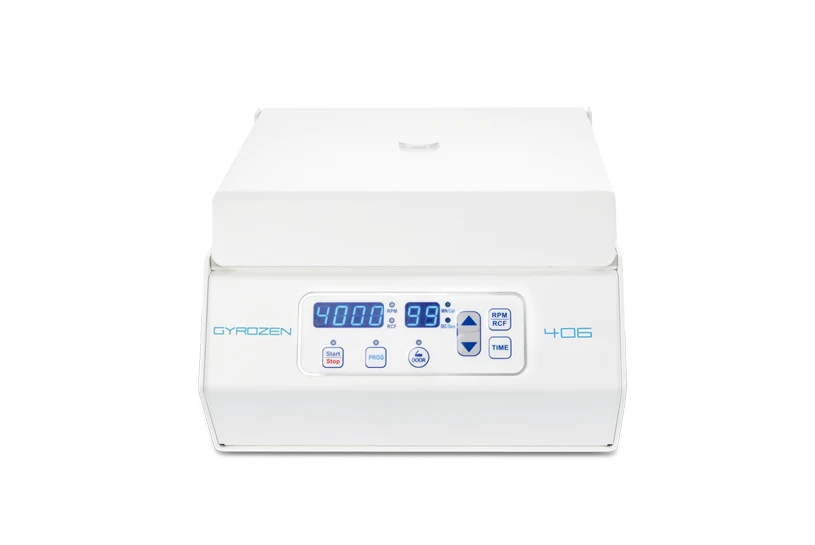

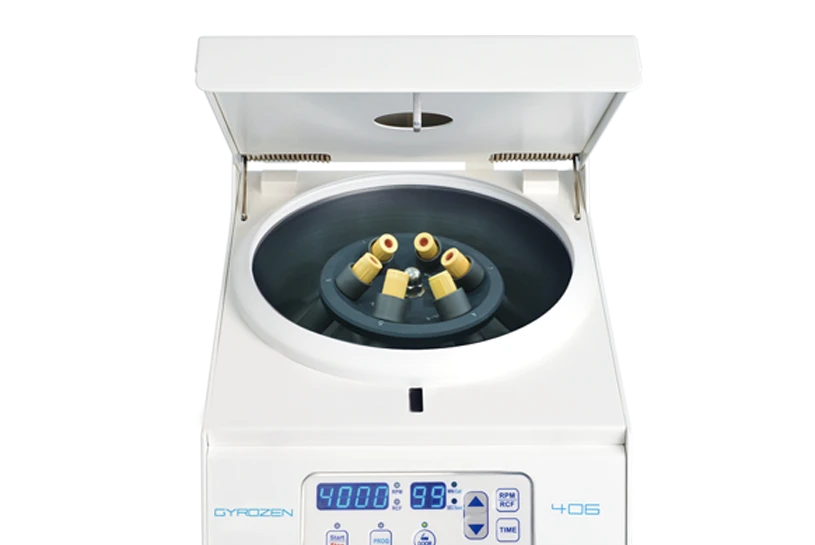

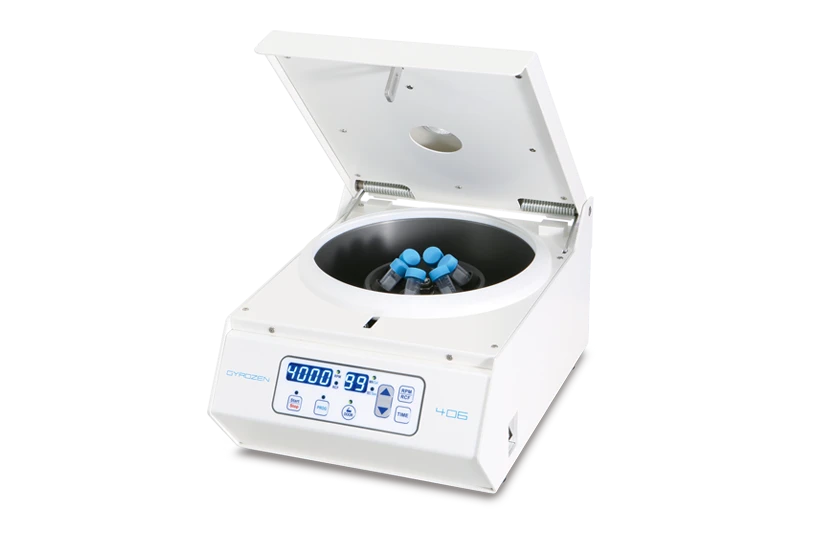

The Gyrozen 406 is a compact low-speed clinical centrifuge for routine blood-tube separation. It reaches 4,000 rpm (2,075 x g) and holds 6 x 15 mL or 12 x 10 mL tubes on a single 12 x 15 mL rotor. It runs at under 52 dB and releases the lid automatically at the end of each run, so samples are easy to retrieve. Supplied with the GRA-15-6 angle rotor for 6 blood tubes.
- Max. speed 4,000 rpm / 2,075 x g
- Capacity 6 x 15 mL or 12 x 10 mL tubes
- Very quiet operation at under 52 dB
- Automatic lid release with end-of-run alarm
- Optional 3 mL and 5 mL tube adaptors, including vacutainers
Quiet, Everyday Clinical Use
- Very quiet operation at less than 52 dB for a comfortable laboratory environment
- Automatic lid release and vivid end alarm allow easy retrieval of samples
- Compact footprint of 296 x 412 x 206 mm
- Steady, soft deceleration with dynamic brake technology
- Manufactured and tested to IEC standards
Fully-Functioning Safety Architecture
- Automatic rotor detection with warning for imbalance, excess speed and over-heating
- Imbalance detection with cut-off and imbalance error counting
- Lid drop protection and emergency lid-lock release for power blackout or sudden stoppage
- Autoclavable and corrosion-free rotors
Intuitive And Refined Control
- Automatic RPM/RCF conversion
- Stores up to 10 user-defined programs
- Timed operation under 100 minutes or continuous
- Glove-friendly soft-touch buttons
What’s in the Box
- 406 centrifuge unit (110 V, 60 Hz)
- GRA-15-6 angle rotor for 6 x blood tubes — included in the price
Technical Specifications
| Max. RPM / RCF (Fixed angle) | 4,000 rpm / 2,075 x g | RPM/RCF conversion | Yes |
| Max. capacity (Fixed angle) | 6 x 15 mL, 12 x 10 mL | Program memory | 10 |
| Time control | Timed < 100 min or continuous | Power supply | AC 110 V, 60 Hz |
| Acc. time to max. speed | ≤ 20 sec | Power requirement | 140 VA |
| Dec. time from max. speed | ≤ 25 sec | Dimension (W x D x H) | 296 x 412 x 206 mm (11.7 x 16.2 x 8.1 in) |
| Noise level (rotor dependent) | ≤ 52 dB | Net weight | 17.6 kg (38.8 lb) |
| Included rotor | GRA-15-6 (6 x blood tubes) | CE mark | Yes |
| Cat. No. | GZ-0406-110 |
Compatible Rotors & Accessories
Rotors marked BIO-SAFE feature a green sealing lid that provides bioaerosol containment — recommended for clinical diagnostics and BSL-2 laboratories.
| Rotor Type | Rotor Cat. No. | Rotor Capacity | Tube capacity | Max. RPM / RCF | Price |
|---|---|---|---|---|---|
| Fixed Angle Rotor | GRA-15-12 | 6 x 15 ㎖ / 12 x Φ16 VT | Φ13 VT, 5, 14 | 4,000 / 2,057 | $356 |
| Fixed Angle Rotor | GRA-15-6 | 6 x 15 ㎖ / 6 x Φ16 VT | Φ13 VT, 5, 14 | 4,000 / 2,075 | $234 |
All rotors sold separately. Contact us at +1 305 600 0444 for configuration assistance.
