Product Description

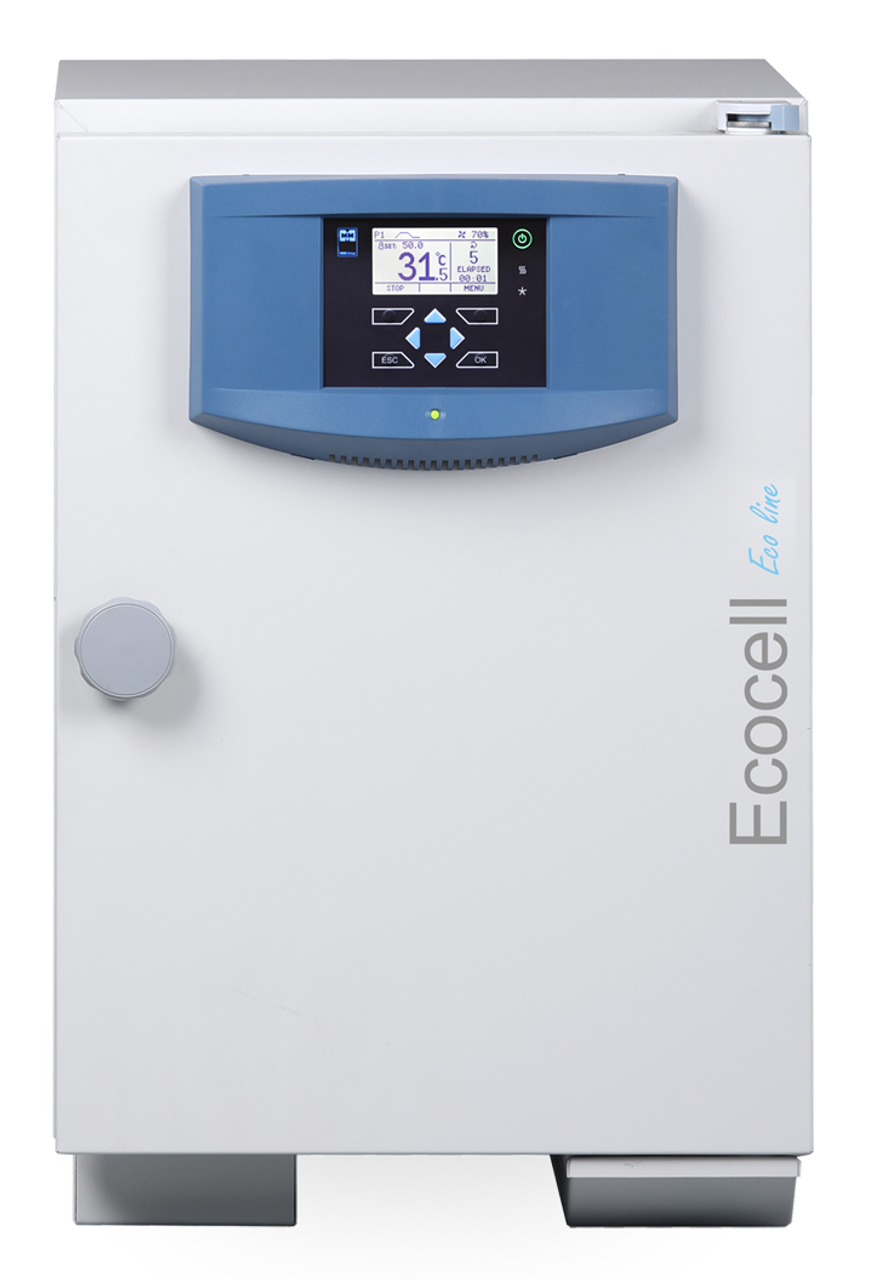

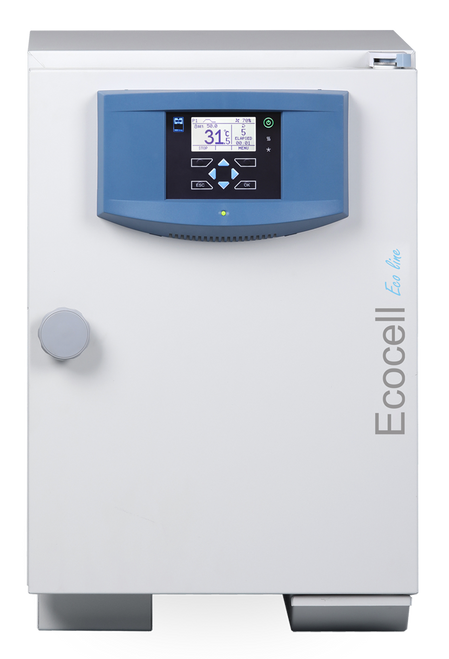

Ecocell
Natural Gravity Convection Ovens
Ecocell gravity convection produce gentle air flow with low vibration and even temperature distribution throughout the chamber. The Ecocell is an ideal solution for carefully drying sensitive materials, including light powders and compounds, while also being suitable for industrial materials testing applications, warming bedding and blankets, and sterilizing laboratory glassware and media.
The line of economic ovens with wide temperature range, exact and reliable course of simple processes of material heating and drying. The ECOCELL® line is characterised by noiseless operation and slow air flow in usable space.
|
| Working Temperatures Ambient + 5°C up to 250°C300°C max temp. option available |
| Heat Technology Natural gravity convection |
| Chamber Volume 22L / (0.8 ft³) |
| Interior (wxdxh) 9.4″ x 13.8″ x 11.8″ 240mm x 350mm x 300mm |
| Exterior (wxdxh) 16″ x 22″ x 24″ 406mm x 560mm x 610mm |
| Weight Net: 68.3lbs / 31kg | |
| # of shelf guides (2.4" minimum spacing) 4 guides / 2 shelves included |
| Useable Shelf Area 7.3″ x 10.4″ 185mm x 265mm |
| Max Load Per Shelf 22lbs / 10kg | |
| Control System ECO standard microprocessor controller with fuzzy logic and 3″ digital LCD display |
| Electrical 115V 50/60Hz |
| Regulatory Labels CE, UL, CSA listed |
| Chamber Construction Pharmaceutical-Grade Stainless Steel Ecocell natural gravity convection ovens are constructed with a pharmaceutical-grade AISI 304 stainless steel chamber packed with 5 layers of insulation for improved durability, temperature uniformity, and operating efficiency. The inner chamber is seamless with rounded corners and fully removable for easier cleaning and sterilization. The chamber door is equipped with a patented 4-point closing system that seals the door to the chamber gasket and enables hands-free opening and closing. |
| |||
|
| |||
 | Heat TechnologyNatural Gravity ConvectionWith nearly undetectable noise and vibration, the natural gravity convection system produces gentle airflow with even temperature uniformity throughout the chamber. Fanless operation reduces particle movement, preventing sample contamination, and significantly reduces power consumption. |
Control System
Precise & Automated Control of Cycle Parameters
The ECO digital controller is programmed with fuzzy logic, which analyzes cycle data in real-time and automatically adjusts inputs to maintain stable conditions. This allows for rapid heating and cooling times without overshooting the temperature setpoint, protecting the load and reducing the cycle duration, recovery time, and power consumption. The 3” LCD screen provides a clear display of the cycle status and temperature data with wide-angle vision for easy viewing during operation. ECO controllers can run up to 99 cycles with capacity for 9 programs, each containing 2 segments for varying loads and parameters.
ECOStandard Digital Controller
|
|
|
