Product Description
INCUCELL V 22 - ECO line
Suitable for safe processing of microbiological cultures. The INCUCELL® V line (with a fan) ensures quicker and more precise temperature distribution with small deviations. These units are to be used especially in biological and microbiological laboratories, quality tests in the pharmacy, cosmetics and testing in the veterinary medicine and food processing industry.
Temperature range:
INCUCELL®: from 5°C above the ambient temperature up to 100°C
Inner glass door
Internal chamber: stainless steel DIN 1.4301 (AISI 304)

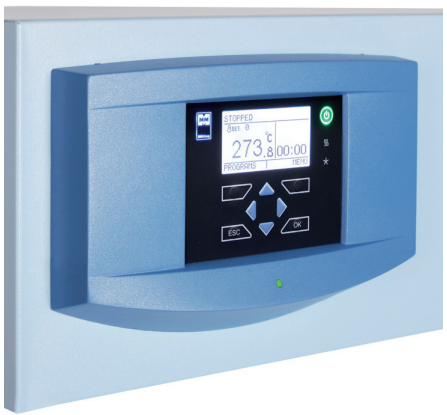

 | • Intuitive control • Microprocessor process control Fuzzy logic • Multi-lingual communication • Acoustic and visual alarm • LED indicator of device functionality • 3-inch (7.6 cm) LCD display • Transflective brilliant FSTN display, uses COG technology (it is backlit and uses the reflection of external light - higher intensity of external light increases the readability of the display) • Adjustable display contrast depending on the location of the device • Extra wide viewing angle • Large, remotely visible characters on the display • Current information (e.g. temperature, relative humidity on the CLIMACELL® instrument, pressure on the VACUCELL® instrument) is increased during the program run for better readability • Durable, foil keyboard using a pleasant SoftTouch surface • Mechanical button response • Backlit symbols integrated directly into the foil keyboard • Keypad lock to protect against unauthorized access – by adjustable multi-press • Real time programming and cycling (ramps as optional equipment) • 9 programs, 2 segments in each program, up to 99 cycles • RS232 and USB Device interface • Ethernet (RJ 45) and USB Host (optional) |
| Technical data | |||
| Inner space | volume | Liter | 22 |
| width | mm | 240 | |
| depth | mm | 350 | |
| height | mm | 300 | |
| External dimensions (including door, handle, legs N or casters K) | width | max. mm | 406 |
| 560depth | max. mm | 610N | |
| height | max. mm | 52/49 | |
| ventilation neck diameter – internal / external | mm | 500 | |
| Trays / shelves | maximal number | pc | 4 |
| standard equipment | pc | 2 | |
| minimal distance between trays/shelves | mm | 60 | |
| usable area | mm | 185 x 265 | |
| Maximal allowed loading of trays *) | per 1 tray | kg | 10 |
| per 1 shelf | kg | 10 | |
| inside the device – in total | kg | 25 | |
| Number of external metal door | pc | 1 | |
| Weight | net | approx. kg | 31 |
| brut (cartoon) | approx. kg | 36 | |
| Electric data – mains 50/60 Hz | max. input | kW | 0.24 |
| stand by input | W | 5 | |
| stand by input | A | 2.2 | |
| current for voltage ** | V | 115 | |
| IP Code | IP20 | ||
| Temperature data | |||
| Operation temperature | from 5°C/10°C ***) above ambient temperature | to C | 100 |
| Variations from operation temperature with closed flap and door (DIN 12 880 part 2) | space | ± % temperature | 1.1 |
| ± at 37°C | 0.4 | ||
| time | ±°C | 0.4 | |
| Time to reach temperature of 37°C with closed flap | min | 70 | |
| Number of air exchanges at 37°C | per hour | 4 | |
| Heat losses | at 37°C | W | 20 |
| Noise level of complete device | db | 0 | |
