Product Description

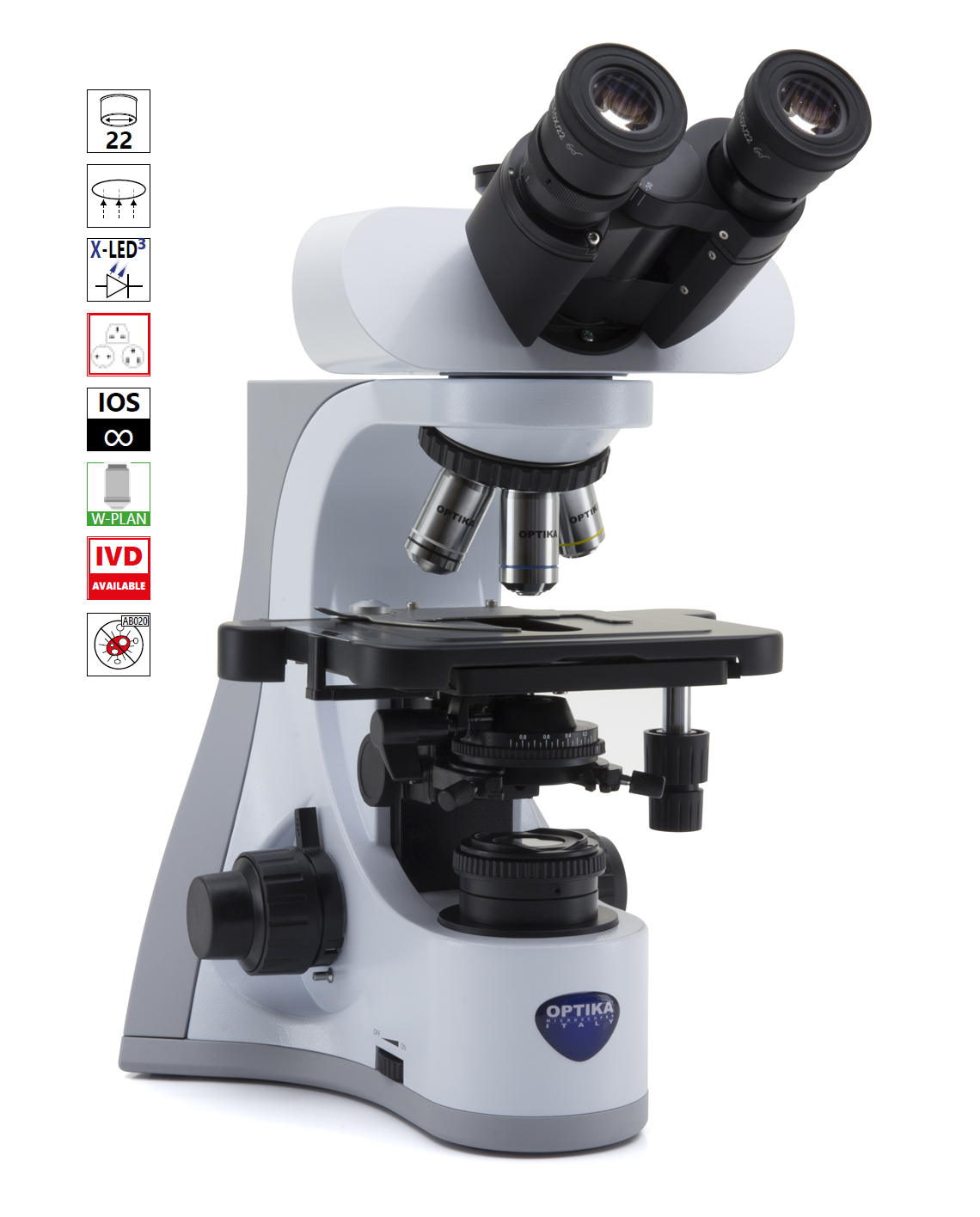

OPTIKA B-510BF
Binocular Brightfield Microscope (IOS W-PLAN)
The OPTIKA B-510BF is a high-end routine laboratory microscope from the advanced B-500 series, designed for intensive use in research and clinical diagnosis. It features a modern, ergonomic design with a Binocular head and high-performance IOS W-PLAN (Infinity Corrected) objectives. This model stands out for its wide field of view (FN 22) and its state-of-the-art illumination system, ensuring fatigue-free operation and superior image fidelity.
Advanced Performance & Full Koehler Illumination
The B-510BF is equipped with a professional Full Koehler illumination system, allowing complete control over the light path for optimized contrast and resolution. Combined with the exclusive X-LED³ source, it delivers bright, white, and uniform light. The rackless mechanical stage provides safe and precise sample movement, while the ultra-flat field objectives ensure that the entire 22mm field of view remains sharp and clear.
| X-LED³ Exclusive Lighting System |
|  | ||
| OPTIKA is proud to introduce its exclusive X-LED³ lighting source. A special combination of high-efficiency LEDs and a special optical system allows OPTIKA to double the light intensity generated by a standard LED. The resulting light is comparable to the light generated by a 50W halogen lamp but with a color temperature of 6300K, representing sunlight. |
| |||
 |
| Mechanical Stage Rackless Stage for Safety and Durability The B-500 series is equipped with a large, modern rackless mechanical stage (233x147 mm). This design prevents the rack from protruding from the stage, avoiding potential scratches or injuries during use. The movement is smoother, more reliable, and provides a safer working environment. |
IOS W-PLAN Objectives & Wide Field of View
The B-510BF features premium IOS W-PLAN objectives, designed for improved image flatness and contrast. Coupled with WF10x/22mm eyepieces, this system offers a wide field number (FN 22), allowing users to observe a larger sample area at once, significantly increasing workflow efficiency in the laboratory.
|
| Binocular brightfield microscope with IOS W-PLAN objectives, rackless stage and Full Koehler X-LED³ illumination. |
| Observation mode: Brightfield. | |
| Head: Binocular, 30° inclined, 360° rotating. Interpupillary distance: Adjustable between 50 and 75 mm. | |
| Dioptric adjustment: On the left eyepiece tube. | |
| Eyepieces: WF10x/22 mm, high eye-point and secured by screw. | |
| Nosepiece: Quintuple revolving nosepiece, rotation on ball bearings. | |
| Objectives: IOS W-PLAN 4x/0.10, 10x/0.25, 40x/0.65, 100x/1.25 (Oil/Water). All with anti-fungus treatment. | |
| Specimen stage: Double layer rackless mechanical stage, 233x147 mm, 78x54 mm X-Y range. | |
| Focusing: Coaxial coarse (adjustable tension) and fine focusing mechanism with limit stop. | |
| Condenser: Swing-out N.A. 0.2/0.9, with iris diaphragm, focusable and centerable. | |
| Illumination (Full Koehler): X-LED³ with white 3.6 W LED (6,300K) with brightness control. Field diaphragm. Multi-plug 100-240Vac/6Vdc external power supply. |
