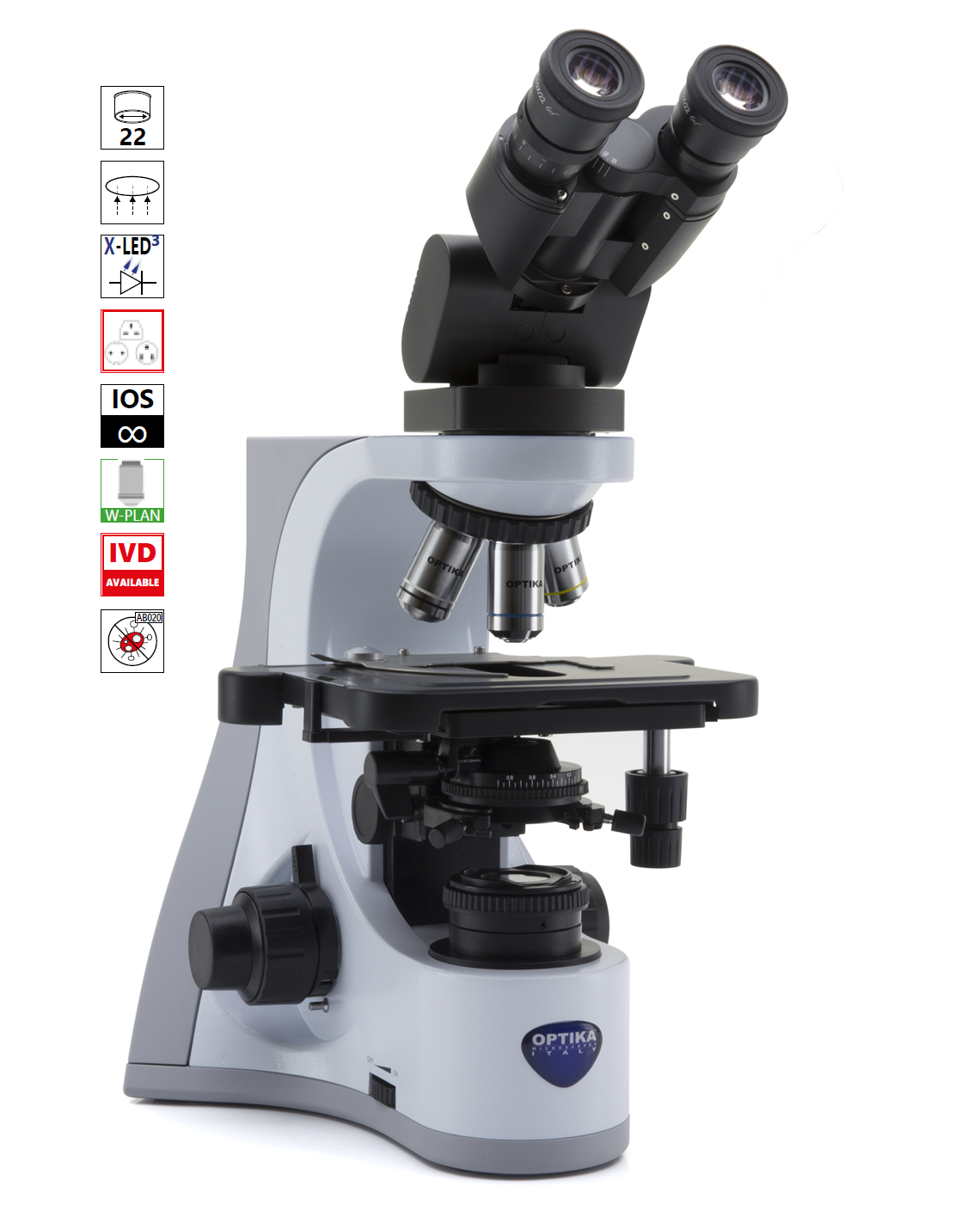

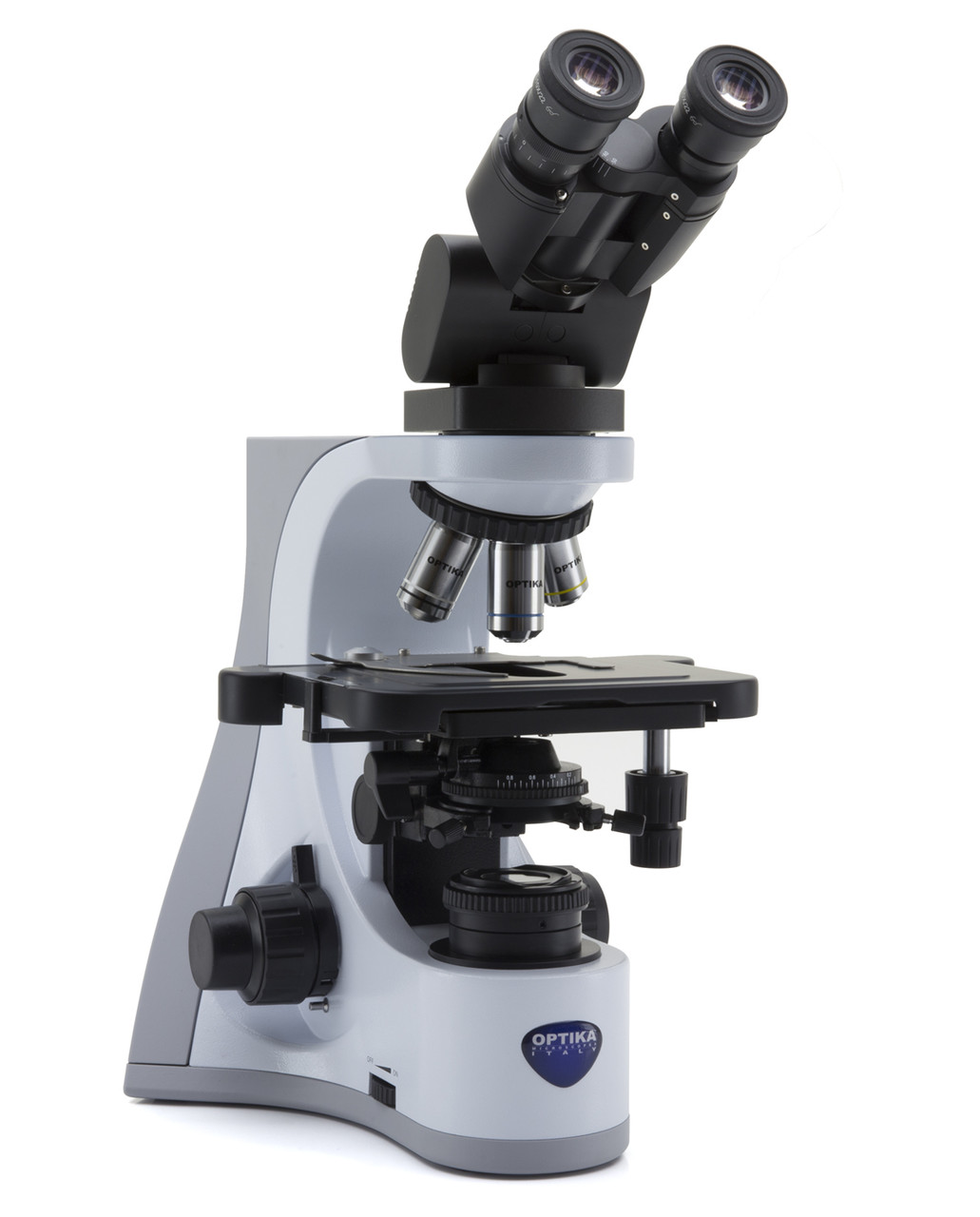

OPTIKA B-510ERGO
Ergonomic Binocular Microscope (IOS W-PLAN)
The OPTIKA B-510ERGO is a specialized model within the high-end B-500 series, specifically designed to maximize comfort during long working sessions. It features a versatile Ergonomic Binocular Head with adjustable inclination (30° - 60°), allowing the user to find the perfect posture and reduce neck and back fatigue. Combined with high-performance IOS W-PLAN objectives and a wide field of view (FN 22), it offers the ultimate observation experience for professionals.
Maximum Comfort & Full Koehler Illumination
Ideally suited for routine laboratory work where ergonomics is a priority, the B-510ERGO ensures a comfortable workflow without sacrificing performance. It includes the professional Full Koehler illumination system with the exclusive X-LED³ source for bright, uniform light. The rackless mechanical stage ensures safety, while the tilting head adapts to different user heights immediately.
| X-LED³ Exclusive Lighting System |
|  | ||
| OPTIKA is proud to introduce its exclusive X-LED³ lighting source. A special combination of high-efficiency LEDs and a special optical system allows OPTIKA to double the light intensity generated by a standard LED. The resulting light is comparable to the light generated by a 50W halogen lamp but with a color temperature of 6300K, representing sunlight. |
| |||
 |
| Mechanical Stage Rackless Stage for Safety and Durability The B-500 series is equipped with a large, modern rackless mechanical stage (233x147 mm). This design prevents the rack from protruding from the stage, avoiding potential scratches or injuries during use. The movement is smoother, more reliable, and provides a safer working environment. |
IOS W-PLAN Objectives & Wide Field of View
The B-510ERGO features premium IOS W-PLAN objectives, designed for improved image flatness and contrast. Coupled with WF10x/22mm eyepieces, this system offers a wide field number (FN 22), allowing users to observe a larger sample area at once.
|
| Ergonomic binocular microscope with IOS W-PLAN objectives, rackless stage and Full Koehler X-LED³ illumination. |
| Observation mode: Brightfield. | |
| Head: Ergonomic Binocular, 30° - 60° inclined, 360° rotating. Interpupillary distance: Adjustable between 50 and 75 mm. | |
| Dioptric adjustment: On the left eyepiece tube. | |
| Eyepieces: WF10x/22 mm, high eye-point and secured by screw. | |
| Nosepiece: Quintuple revolving nosepiece, rotation on ball bearings. | |
| Objectives: IOS W-PLAN 4x/0.10, 10x/0.25, 40x/0.65, 100x/1.25 (Oil/Water). All with anti-fungus treatment. | |
| Specimen stage: Double layer rackless mechanical stage, 233x147 mm, 78x54 mm X-Y range. | |
| Focusing: Coaxial coarse (adjustable tension) and fine focusing mechanism with limit stop. | |
| Condenser: Swing-out N.A. 0.2/0.9, with iris diaphragm, focusable and centerable. | |
| Illumination (Full Koehler): X-LED³ with white 3.6 W LED (6,300K) with brightness control. Field diaphragm. Multi-plug 100-240Vac/6Vdc external power supply. |
