Product Description
Strict anaerobes die on contact with oxygen. Not slowly — a Clostridium or a methanogen exposed to room air is finished before you have finished carrying the plate across the bench. Anaerobic jars and sachets work for short holds, but the moment the work involves inoculating, picking colonies, weighing, pipetting or reading a plate, the organism has to stay in the atmosphere while your hands do the work. That is what a glove box chamber is for.

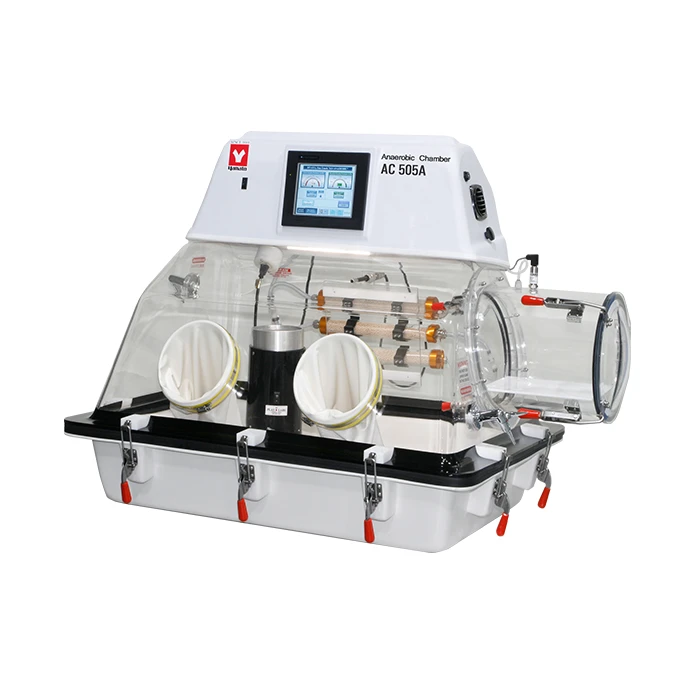

The Yamato AC-505A is a 55" two-glove chamber shipped as a complete, ready-to-use unit. Gloves, catalyst heater, drying train and molecular sieves are all included — no installation, no additional accessories to source, no integration project. You supply the gas and the bench space.
This is the automatic purge version. Bringing a manual chamber to a strict anaerobic state is a procedure: evacuate, backfill, repeat, watch the indicator, judge when it is done. On the AC-505A it is one button — press "Go Anaerobic" on the colour touchscreen and the purge sequence runs itself. The display shows the atmospheric oxygen condition continuously and switches to ppm once O₂ drops below 0.5 %, which is the resolution you actually need to know whether the chamber is fit for a strict anaerobe. There is also one-touch on-screen data logging.
The trade-off is money: the manual AC-505 is the same 55" chamber for $18,910 less. The automatic version earns that difference back in a busy shared laboratory where several people purge the chamber each week and consistency matters more than capital cost — and where the logged record of the purge is itself worth having.
Key Features
- 55" chamber with one (1) pair of white ambidextrous hypalon gloves — ambidextrous, so no left/right sorting and one spare fits either side
- Complete and ready to use — no installation required and no additional accessories needed
- Catalyst heater for removing residual oxygen
- Drying train with three (3) clear plastic canisters filled with molecular sieve
- One-touch "Go Anaerobic" purge on a large colour touchscreen
- Continuous O₂ display that switches to ppm below 0.5 %
- One-touch on-screen data logging
- "Easy Clean" corners top and bottom — no square internal corners for spills and contamination to sit in
- Formed one-piece clear plastic top with matched die-moulded white thermoset base
- 12" transfer chamber included in the outside dimensions
- 17.3 cu ft / 489 L working volume
- Made in the USA
Technical Specifications
| Model | AC-505A |
| Chamber size | 55", two glove |
| Purge | Automatic — one-touch "Go Anaerobic" sequence |
| Gloves | One (1) pair of white ambidextrous hypalon gloves |
| Drying train | Three (3) clear plastic canisters filled with molecular sieve |
| Top and bottom sections | Top: formed one-piece clear plastic with "Easy Clean" corners. Bottom: matched die-moulded white thermoset with "Easy Clean" corners |
| Inside dimensions (W × D × H) | 41" × 28" × 26" (1040 × 710 × 660 mm) |
| Outside dimensions (W × D × H) | 55" × 35" × 38" (1400 × 890 × 970 mm) — includes the 12" transfer chamber |
| Approximate volume | 17.3 cu ft / 489 L |
| O₂ monitoring | Continuous display, switches to ppm when O₂ < 0.5 % |
| Data logging | One-touch on-screen logging |
| Power source | AC 110–120 V |
| Approximate shipping weight (crated) | 315 lb (143 kg) |
| Country of origin | United States |
| Harmonized tariff code | 3926.90.3500 |
| GTIN | 797059929696 |
Typical Applications
- Microbiology — isolating and culturing strict anaerobes
- Biochemistry — oxygen-sensitive enzymes, cofactors and reduced compounds
- Plasma environment work
- Animal science — including regulating nitrous oxide emissions from manure storage systems
- Waste treatment research — anaerobic fermentation of organic waste
- Electronic sub-assembly in a controlled atmosphere
What's Included
- AC-505A anaerobic chamber with 12" transfer chamber
- One (1) pair of white ambidextrous hypalon gloves
- Catalyst heater
- Drying train with three (3) clear plastic molecular sieve canisters
- Colour touchscreen control with automatic purge
- Instruction manual
Gas is not included. An anaerobic chamber needs a mixed gas supply — typically nitrogen with a few percent hydrogen for the catalyst to scavenge residual oxygen, plus CO₂ where the culture requires it — with regulators. We can specify the gas package with you.
Choosing Between the Models
| Model | Size | Gloves | Purge | Voltage |
|---|---|---|---|---|
| AC-505 | 55" | 1 pair | Manual | 115–120 V |
| AC-515 | 55" | 1 pair | Manual | 220–240 V |
| AC-706 | 76" | 2 pairs | Manual | 115–120 V |
| AC-716 | 76" | 2 pairs | Manual | 220–240 V |
| AC-505A | 55" | 1 pair | Automatic | 110–120 V |
| AC-515A | 55" | 1 pair | Automatic | 220–240 V |
The 76" models are not just bigger — they carry two pairs of gloves, so two people can work in the chamber at once, and a six-canister drying train instead of three. If more than one person will use the chamber simultaneously, that is the deciding factor, not the volume.
Installation Requirements
- Electrical: AC 110–120 V. No special installation — the chamber ships complete.
- Gas supply: mixed anaerobic gas with regulators, not included.
- Floor space: 55" × 35" × 38" including the transfer chamber, plus room to stand and work at the gloves.
- Delivery: crated shipping weight 315 lb. Check door widths and the delivery path — a 55" chamber does not go through a standard doorway assembled.
Compliance
Country of origin: United States. Harmonized tariff code 3926.90.3500. One-year manufacturer warranty.
Pro Lab Supply Corp is an authorized Yamato Scientific distributor. Tell us what you are culturing and how many people will use the chamber, and we will help you choose between the 55" and 76" sizes and between manual and automatic purge — and quote the gas package with it.
