Product Description
Where the LT series ends, the LR-500 begins. It is a gearless direct-drive overhead stirrer — no gearbox between motor and shaft — which removes the backlash, the noise and the maintenance item, and delivers up to 1.96 N·m (20 kgf·cm) of torque on a ø10 mm shaft. That is roughly double the LT-500, and it is what a genuinely viscous batch, a large vessel or a settling slurry needs before the stirrer starts stalling instead of stirring.
Two models split the range. The LR-500A turns 34–340 rpm at up to 1.96 N·m from a 70 W brushless motor — slow and strong, for thick media and large propellers. The LR-500B turns 100–1000 rpm at up to 0.98 N·m from a 100 W motor — faster, for lower-viscosity work in bigger volumes. Both show speed on a 3-digit digital readout with a two-step green LED torque indicator and an overload display, and both stop automatically when overloaded rather than cooking the motor.
Choose your configuration above. LR-500A and LR-500B ship as main body with stainless steel shaft (ø10 × 500 mm), 75 mm 4-blade propeller and clamp — order this if you already have a stand and rod. LR-500AA and LR-500BA are the complete set, adding the stand and rod so the unit is ready to run on arrival.
Model Selection
| Model | Speed range | Maximum torque | Motor |
|---|---|---|---|
| LR-500A | 34–340 rpm | 1.96 N·m (20 kgf·cm) | Brushless DC 70 W |
| LR-500B | 100–1000 rpm | 0.98 N·m (10 kgf·cm) | Brushless DC 100 W |
Key Features
- Gearless direct drive — no gearbox, no backlash, no gear maintenance, markedly quieter
- Up to 1.96 N·m torque on a ø10 mm shaft — roughly twice the LT-500
- Speed feedback control holds the set rpm as the load changes
- 3-digit digital speed display plus a green LED torque indicator (2 steps) and overload display
- Automatic stop on overload — protects both the motor and the vessel
- Stainless steel shaft and 75 mm 4-blade propeller included on every configuration

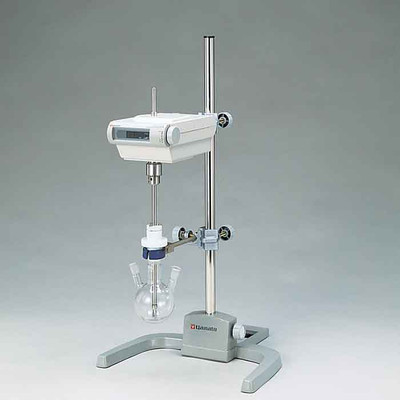

- Vacuum adapter available (part 231097) for stirring under reduced pressure
- Extra-long shaft available (ø10 × 800 mm, part LR41AY0002) for deep vessels
Technical Specifications
| Series | Yamato LR-500 laboratory overhead stirrer |
| Speed range | LR-500A: 34–340 rpm | LR-500B: 100–1000 rpm |
| Maximum torque | LR-500A: 1.96 N·m (20 kgf·cm) | LR-500B: 0.98 N·m (10 kgf·cm) |
| Motor | Brushless DC — LR-500A: 70 W | LR-500B: 100 W |
| Speed control | Speed feedback control |
| Display | Digital 3-digit speed; green LED torque, 2 steps, plus overload display |
| Drive type / shaft diameter | Gearless direct drive / ø10 mm |
| Safety device | Stops automatically when overloaded |
| Power source (50/60 Hz) | LR-500A: AC 100–125 V, 3 A | LR-500B: AC 100–125 V, 3.5 A |
| Country of origin | Japan |
What's Included
Main body configuration (LR-500A / LR-500B):
- LR-500 stirrer body
- Stainless steel stirring shaft, ø10 × 500 mm
- 75 mm 4-blade propeller
- Clamp
- Instruction manual
Complete set (LR-500AA / LR-500BA):
- Everything above, plus U stand and rod
Optional Accessories
- Propellers — turbine ø60 mm and ø100 mm, 2-stage turbine, 4-blade ø40/60/75 mm, 2-blade ø28/100 mm, folding 18/45 mm
- Extra-long stirring shaft, ø10 × 800 mm (LR41AY0002)
- Glass stirring shaft
- Vacuum adapter (231097)
- Stand and rod set (LR-41-124)
Installation Requirements
- Electrical: AC 100–125 V, 50/60 Hz. This series is 115 V only — there is no 220 V version.
- Stand: the main-body configurations require a stand and rod (LR-41-124, or YSA0000194 plus 2310030209).
- Vessel support: at 1.96 N·m the stirrer can move an unsecured vessel. Clamp the vessel as well as the stirrer.
Compliance
Country of origin: Japan. One-year manufacturer warranty.
Pro Lab Supply Corp is an authorized Yamato Scientific distributor. Tell us your batch volume and viscosity and we will specify the model, shaft and propeller.
