Product Description

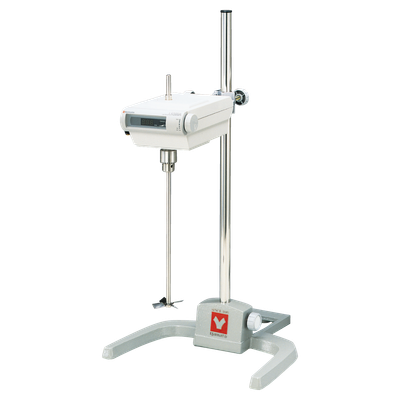

A magnetic stirrer stops working the moment the sample gets thick. The bar decouples, the vortex collapses, and mixing quietly ends — usually without anyone noticing. An overhead stirrer has no such limit: the shaft goes into the liquid and the motor turns it, whatever the viscosity. The Yamato LT-500 series is the bench-scale version of that idea, built around a 30 W DC brushless motor with speed feedback control, so the set rpm is held as the load changes rather than drifting down as the batch thickens.
The series is sold by viscosity, not by a single spec sheet. Two models share the same body and differ only in the gearing trade-off between speed and torque — more torque for thick media, more speed for thin ones. The panel shows the speed digitally alongside a torque indicator in 20 % gradations and an overload warning, which turns torque into something you can watch during a reaction instead of something you infer after it. The LT-500 is the higher-torque body of the LT family, for work the LT-400 would labour at.
Choose your configuration above. LT-500A and LT-500B are the main body only — order this if you already have a stand, rod, shaft and propeller. LT-500AA and LT-500BA are the complete set: main body, stand, rod, stainless steel shaft and 60 mm 4-blade propeller, ready to run out of the box.
Model Selection
| Model | Speed range | Maximum torque |
|---|---|---|
| LT-500A (high viscosity) | 15–600 rpm | 1.0 N·m (10.0 kgf·cm) |
| LT-500B (medium viscosity) | 25–1200 rpm | 0.6 N·m (6.0 kgf·cm) |
Higher torque means thicker media; higher speed means thinner media. If you are unsure which applies to your sample, tell us what you are stirring and we will specify it.
Key Features
- DC brushless motor, 30 W with speed feedback control — set rpm is held as viscosity and load change
- Digital speed display with torque indicator (20 % gradations) and overload warning
- ø8 mm drill chuck — accepts stainless steel and glass shafts
- Current limit circuit and thermal protector — the motor protects itself rather than burning out on a seized shaft
- Drill chuck cover as standard
- Compact 146 × 154 × 165 mm body, 2.4 kg — mounts on a standard lab stand without overloading it
- Wide accessory range — turbine, 4-blade, 2-blade and folding propellers from 28 mm to 100 mm, glass shafts, extra-long shafts
Technical Specifications
| Series | Yamato LT-500 laboratory overhead stirrer |
| Motor | DC brushless, 30 W |
| Speed control | Speed feedback control |
| Panel display | Digital speed display, overload display, torque indicator (20 % gradation) |
| Chuck | ø8 mm drill chuck |
| Safety devices | Current limit circuit, thermal protector, drill chuck cover |
| External dimensions (W × D × H) | 146 × 154 × 165 mm (5.7 × 6.1 × 6.5 in.) |
| Net weight | 2.4 kg (5.3 lb) |
| Power source | AC 100–125 V, 50/60 Hz |
| Power cord | 2 m, bipolar grounding-type plug |
| Country of origin | Japan |
What's Included
Main body only (LT-500A and LT-500B):
- LT-500 stirrer body
- Clamp
- Safety cover
- Chuck handle
- Instruction manual
Complete set (LT-500AA and LT-500BA):
- LT-500 stirrer body, clamp, safety cover, chuck handle
- U stand and rod
- Stainless steel stirring shaft
- 60 mm 4-blade propeller
- Instruction manual
Installation Requirements
- Electrical: AC 100–125 V, 50/60 Hz. This series is 115 V only — there is no 220 V version. For 220 V service, ask us about the LR series or a transformer.
- Stand: the main-body-only models require a stand and rod (available separately as LR-41-124, or as part number YSA0000194 plus 2310030209).
- Shaft and propeller: selected to match vessel geometry and sample viscosity — we can specify these with you.
Compliance
Country of origin: Japan. One-year manufacturer warranty.
Pro Lab Supply Corp is an authorized Yamato Scientific distributor. Tell us your vessel size, batch volume and sample viscosity and we will specify the right model, shaft and propeller.
