Product Description
Three shaking motions in one compact unit, selected by hand rather than by ordering a different instrument. The Yamato MK-161 converts between rotary, elliptical and reciprocating motion, each with a 30 mm stroke, anywhere from 20 to 200 rpm. Different samples want different paths: rotary for gas exchange in a culture, reciprocating for liquid–liquid extraction, elliptical as a compromise that keeps solids suspended without splashing. A laboratory that has to do all three normally buys two shakers.

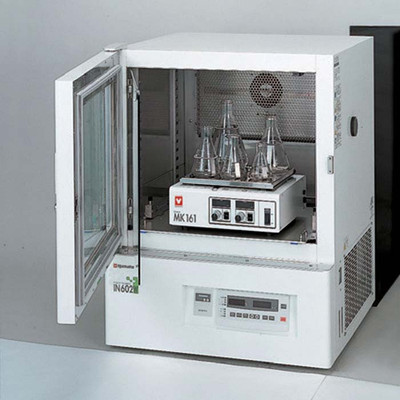

The MK-161 is also small enough — 350 × 300 × 150 mm — to sit inside an incubator, which is exactly what Yamato does with it: the IN-604WMK pairs this shaker with a 143 L refrigerated incubator for temperature-controlled shaking work. On its own bench it offers a digital speed display and a digital timer that runs from 0.1 minute (6 seconds) to 99.9 hours, so a six-second mix and a four-day agitation are set the same way.
Key Features
- Three shaking modes — rotary, elliptical and reciprocating, selected manually on the unit
- 30 mm shaking stroke (rotary and reciprocating)
- 20 to 200 rpm, dial set with digital display
- Digital timer 0.1 min (6 s) to 99.9 hours
- Compact 350 × 300 × 150 mm footprint — fits inside a laboratory incubator for temperature-controlled shaking
- W290 × D250 mm stage for holders, racks and clamps
- Low power draw — 0.5 A at 115 V, suitable for shared circuits
Technical Specifications
| Model | MK-161-220V |
| Shaking modes | Rotary, elliptical and reciprocating (manual selection) |
| Shaking range | Rotary 30 mm; reciprocating 30 mm |
| Shaking frequency | 20 to 200 rpm |
| Frequency control | Dial setting with digital display |
| Timer | Dial setting with digital display — 0.1 min (6 s) to 99.9 h |
| Shaking stage dimensions | Main unit W300 × D254 mm; stage W290 × D250 mm |
| External dimensions (W × D × H) | 350 × 300 × 150 mm (13.8 × 11.8 × 5.9 in.) |
| Net weight | approx. 15 kg (33 lb) |
| Power source (50/60 Hz) | AC 220 V, 0.3 A |
| Country of origin | Japan |
| GTIN | 797059931675 |
What's Included
- MK-161 compact shaker
- Instruction manual
Flask holders, test-tube racks, clamps and non-slip mats for the stage are ordered separately to match your vessels.
Installation Requirements
- Electrical: AC 220 V, 0.3 A, 50/60 Hz.
- Bench or incubator: a level surface with at least 350 × 300 mm of clear area, plus stroke clearance around the stage.
Compliance
Country of origin: Japan. One-year manufacturer warranty.
Pro Lab Supply Corp is an authorized Yamato Scientific distributor. Ask us about pairing the MK-161 with a Yamato incubator for temperature-controlled shaking.
