Yamato PLA-CGNS Series Clear Acrylic Desiccator Cabinets with Hygrometer — 12" to 24", 1 or 2 Cubicles

Product Description

Hygroscopic material picks up water from room air whether or not anyone is watching it. Desiccant tablets, lyophilized standards, reference powders, electronic components, cast films and anything weighed to four decimal places will all drift overnight in an open cabinet, and that drift shows up later as a result nobody can explain. A desiccator cabinet gives the material a sealed, low-humidity space to live in between uses — with a hygrometer on the door, so the humidity is something you read rather than something you assume.

This is the optically clear "jewelled" acrylic series, so you can find what you need without opening the door — and every door opening is a humidity excursion you then have to pump back down. If what you store is also light-sensitive, the amber (PLA-CGANS series) is the same cabinet in light-blocking acrylic.

Choose your size above. Six configurations share the same construction, and the shelves are interchangeable across all of them.

Choosing a Size

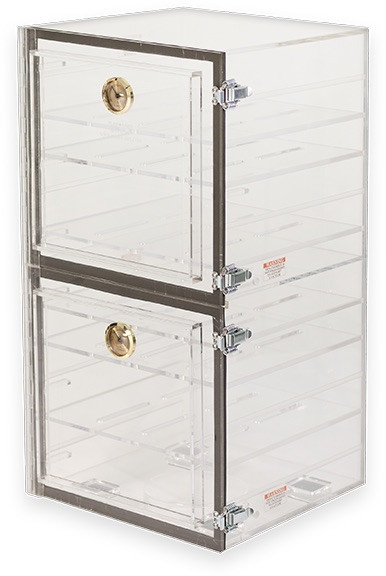

Note the two 12" × 12" × 24" options. The 861 splits that height into two sealed cubicles; the 8615 leaves it as one tall space with eleven shelf positions. Same footprint, different problem solved. Two cubicles also mean two independent atmospheres — purge one with nitrogen and leave the other on desiccant, or simply keep incompatible materials apart.

Key Features

• Built-in hygrometer (RH) gauge — read the humidity on the door instead of guessing at it
• ¼"-thick optically clear "jewelled" acrylic
• Two nylon gas nipples per cubicle — ⅛" and ¼", 90° elbows with hose barbs, for nitrogen or dry-gas purge
• Perforated shelves — slots let the dry atmosphere circulate instead of stratifying above and below each shelf
• Spring-loaded sealing clamps for uniform locking tension across the door
• Door guards prevent the door warping and losing the internal atmosphere
• "Gasket guard system" with closed-cell gasketing that does not take a set — a compressed gasket that quietly stops sealing after a year is the usual failure mode in acrylic desiccators
• Slip-apart hinges as standard — the door comes off for cleaning or for loading bulky items
• Stackable on non-slip "grip tight" feet
• Interchangeable shelves across the whole range — standardised construction, so a shelf bought for one cabinet fits another
• Built-in divider on every two-cubicle model, which also stiffens the cabinet

Technical Specifications

What's Included

• PLA-CGNS clear acrylic desiccator cabinet in the size selected
• Perforated shelves — two (2) or four (4) depending on model
• Built-in hygrometer gauge
• Two (2) nylon gas nipples per cubicle (⅛" and ¼")

Desiccant is ordered separately — indicating silica gel or a rechargeable cartridge, sized to the cabinet volume. A nitrogen purge needs your own regulated gas supply and tubing.

Compliance

Country of origin: United States. Harmonized tariff code 3926.90.9910. One-year manufacturer warranty.

Pro Lab Supply Corp is an authorized Yamato Scientific distributor. Tell us what you are storing and roughly how much of it, and we will help size the cabinet and specify the desiccant.
