Product Description

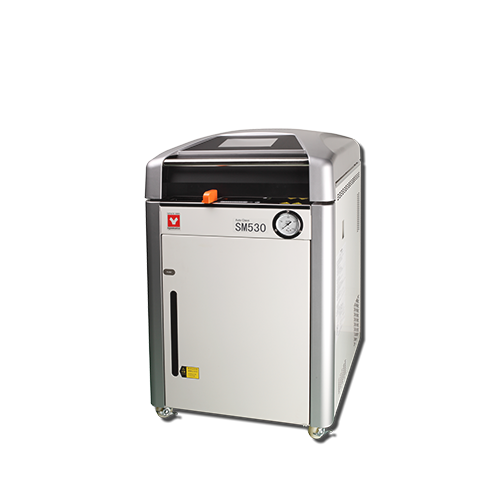

The Yamato SM-530 is a 50 L autoclave with integrated drying and a 7-inch touch screen. It reaches 135 °C at 0.255 MPa — the temperature required for protein denaturation, which a 121 °C cycle does not achieve.
Where a basic autoclave has one sterilizing setpoint, this one runs four named stages you configure independently: preheat, sterilize, liquefy and dry, plus a keep-warm retain mode that holds agar molten at 45 to 60 °C so a media prep batch does not set before it is poured. That is a full media workflow in one machine.
Key Features
- 7-inch interactive touch screen — no key-combination menus
- Sterilization to 135 °C at 0.255 MPa, suitable for protein denaturation
- Four configurable stages: preheat 45–80 °C, sterilize 105–135 °C, liquefy 60–110 °C, dry 135–150 °C
- Retain mode holds media molten at 45 to 60 °C
- Multiple lid locking mechanism
- Chamber over- and under-pressure control
- 50 L chamber
Technical Specifications
| Specification | SM-530 |
|---|---|
| System | Automatic high pressure steam sterilization with drying |
| Sterilization temperature range | 105 °C to 135 °C |
| Liquefy mode | 60 °C to 110 °C |
| Retain (keep-warm) mode | 45 °C to 60 °C |
| Preheat mode | 45 °C to 80 °C |
| Dry mode | 135 °C to 150 °C |
| Maximum pressure | 0.255 MPa |
| Ambient operating range | 5 °C to 35 °C |
| Internal capacity | 50 L |
| External dimensions (W × D × H) | 520 × 660 × 881 mm |
| Control interface | 7-inch interactive colour touch screen |
| Temperature controller | PID control by microprocessor |
| Timer | 0 or 1 min to 99 h 59 min, 1-minute resolution |
| Lid | Multiple safety locking mechanism |
| Power source | AC200-240V, 50/60 Hz |
| Unit weight | 113 kg (249 lb) |
| Shipping weight | 342 lb |
| Manufacturer part number | SM-530 |
| GTIN | 797059927326 |
| Country of origin | China |
Safety Features
- Multiple safety locking mechanism on the lid
- Sterilize sensor error and SSR short circuit detection
- Chamber overpressure and underpressure control
What’s Included
- Stainless steel mesh baskets
- Drain board, drain bottle and droplet tray
- Chemical indicator and filter
- Instruction manual
- One year manufacturer warranty
Compliance
- Manufactured under ISO 9001:2015, ISO 14001:2015 and ISO 45001:2018
For quotations, freight to your location, accessories and volume pricing, contact Pro Lab Supply.
