Product Description

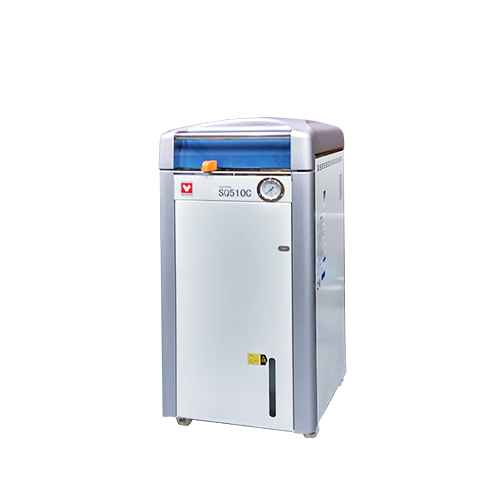

The Yamato SQ-510C is a 50 L top-loading autoclave built for labs that sterilize by the cartload — media prep, glassware batches and waste decontamination at 135 °C and 0.255 MPa.
The reason it is top-loading and low is ergonomic, and it is not a small point at this size: a full basket of media bottles is heavy, and lifting it down into a chamber at waist height beats sliding it into a front-loading door at arm’s length. The cabinet keeps the loading height low even in the 80 L version.
Key Features
- 50 L chamber, ø370 × D470 mm
- 45 to 135 °C at up to 0.255 MPa
- Separate exhaust and slow release valve — liquids vent without boiling over
- Axial cooling fan for faster turnaround
- Five operation modes with saveable custom programs
- Up to 20 error logs retained
- Ergonomic low top-loading design
Technical Specifications
| Specification | SQ-510C |
|---|---|
| System | Automatic high pressure steam sterilization, top loading |
| Operating temperature range | 45 °C to 135 °C |
| Maximum working pressure | 0.255 MPa |
| Ambient operating range | 5 °C to 35 °C |
| Internal capacity | 50 L |
| Chamber dimensions | ø370 × D470 mm |
| External dimensions (W × D × H) | 520 × 660 × 881 mm |
| Lid | Manual upward opening with safety interlock |
| Heater | 1000 W × 2 |
| Valves | One exhaust valve and one slow release valve |
| Cooling | Axial fan motor |
| Temperature controller | PID control by microprocessor |
| Timer | 0 or 1 min to 99 h 59 min, 1-minute resolution |
| Operation modes | Instrument sterilization, liquid sterilization, sterilization with keep-warm, melting with keep-warm, custom programs |
| Power source | AC200-240V, 50/60 Hz |
| Unit weight | 95 kg (209 lb) |
| Shipping weight | 308 lb |
| Manufacturer part number | SQ-510C |
| GTIN | 797059927210 |
| Country of origin | China |
Safety Features
- Lid interlock mechanism
- Drain bottle unset alarm
- Automatic shutdown on malfunction
- Sensor failure detection and pressure relief valve
What’s Included
- 2 stainless baskets (ø344 × D200 mm)
- Vapor cup, drain bottle, drain board and filter
- Chemical indicators (30)
- Instruction manual
- One year manufacturer warranty
Compliance
- Manufactured under ISO 9001:2015, ISO 14001:2015 and ISO 45001:2018
For quotations, freight to your location, accessories and volume pricing, contact Pro Lab Supply.
