Product Description
⚠ 220-230V only. This model is not available in a 110V version. Please confirm your facility’s power supply before ordering — call us at +1 305 600 0444.

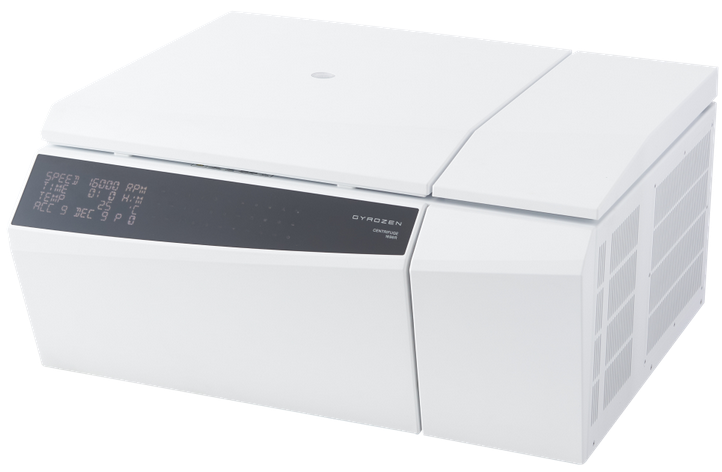

The Gyrozen 1696R II is a table-top high-speed refrigerated centrifuge with an unusually wide capacity range. It reaches 16,000 rpm (27,590 x g) with fixed-angle rotors and 5,000 rpm (5,394 x g) with swing-out rotors, holding up to 6 x 250 mL, 24 x 15 mL, 48 x 1.5/2.0 mL or 20 x 5.0 mL, and up to 4 x 1,000 mL in swing-out mode. Temperature control from −11 °C to 40 °C with fast-cool to 4 °C in five minutes. Supplied without rotor.
- Max. speed 16,000 rpm / 27,590 x g with fixed-angle rotors

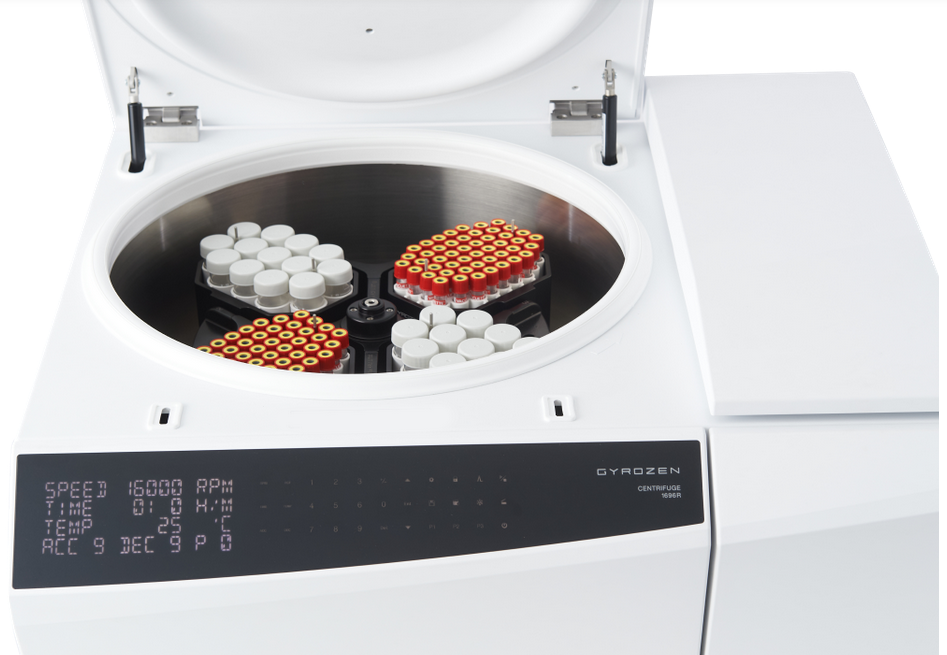

- Swing-out capacity up to 4 x 1,000 mL bottles
- Single-action fastening of the fixed-angle rotor to the motor shaft
- Temperature range −11 °C to 40 °C with fast-cool button
- Equipped with a side tool box
Eco-Friendly Technology
- Automatic compressor-off function when the lid is opened, reducing unnecessary cooling and frost build-up
- Fast-cooling function: temperature drop to 4 °C within 5 minutes for a quick start with cooled samples
- Anti-vibration and air-cooling system that minimises noise and heat dissipation
Fully-Functioning Safety Architecture
- Automatic rotor detection with warning for imbalance, excess speed and over-heating
- Imbalance detection with cut-off and imbalance error counting
- Lid drop protection and emergency lid-lock release for power blackout or sudden stoppage
- Autoclavable and corrosion-free rotors
- With motorized lid mechanics, only a gentle touch is sufficient to close and open the lid
- Key lock function keeps the set parameters secured during operation
Intuitive And Refined Control

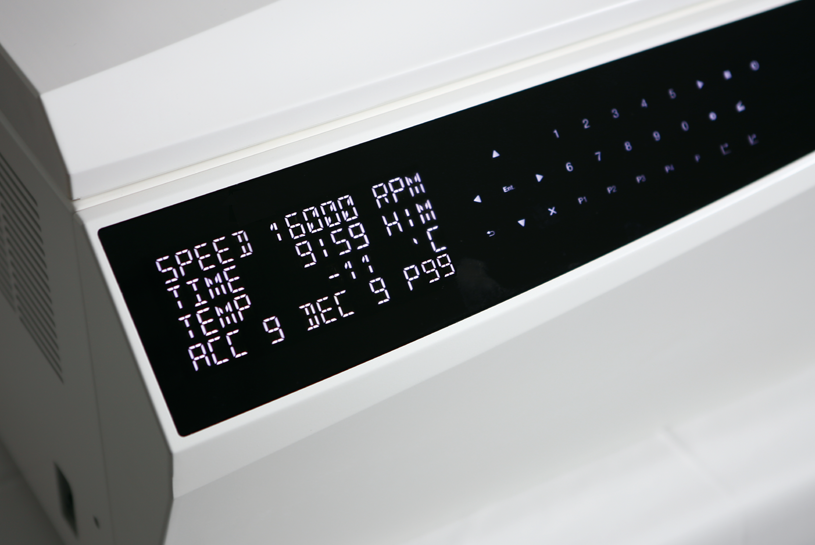

- Intuitive control interface with numeric input buttons and graphic pictograms
- Selectable time counting: “At Set Speed” or “From Starting”
- A separate “PULSE” key for quick spin
- Stores up to 100 user-defined programs, with 9 acceleration and 10 deceleration ramps
- Automatic RPM/RCF conversion; parameters can be changed during operation
What’s in the Box
- 1696R II centrifuge unit (220-230 V, 60/50 Hz)
- No rotor included. Rotors, buckets and adaptors are ordered separately — see the compatibility table below
Technical Specifications
| Max. RPM / RCF (Fixed angle) | 16,000 rpm / 27,590 x g | RPM/RCF conversion | Yes |
| Max. RPM / RCF (Swing-out) | 5,000 rpm / 5,394 x g | ACC / DEC ramps | 9 / 10 |
| Max. capacity (Fixed angle) | 6 x 250 mL, 24 x 15 mL, 48 x 1.5/2.0 mL, 20 x 5.0 mL | Program memory | 100, 4 easy program save/call |
| Max. capacity (Swing-out) | 4 x 1,000 mL, 4 x 2 x 250 mL, 4 x 29 x 15 mL | Power supply | AC 220-230 V, 60/50 Hz |
| Temp. range | −11 °C to 40 °C | Power requirement | 2.0 kVA |
| Fast cool button | Yes | Dimension (W x D x H) | 775 x 695 x 395 mm (30.5 x 27.4 x 15.6 in) |
| Time control | Pulse, timed < 10 hr or continuous | Net weight | 116 kg (255.7 lb) |
| Time counting range | Selectable, at set speed or from starting | CE mark | Yes |
| Noise level (rotor dependent) | ≤ 60 dB (GRS-B-750-4: ≤ 70 dB) | Cat. No. | GZ-1696R II |
Compatible Rotors & Accessories
Rotors marked BIO-SAFE feature a green sealing lid that provides bioaerosol containment — recommended for clinical diagnostics and BSL-2 laboratories.
| Rotor Type | Rotor Cat. No. | Rotor Capacity | Tube capacity | Max. RPM / RCF | Price |
|---|---|---|---|---|---|
| Fixed Angle Rotor | GRF-B-250-6 | 6 x (250 & 15 ㎖) | c25, c50, 85, 100 | 8,000 / 9,588 | $4,961 |
| Fixed Angle Rotor | GRF-B-50-8 | 8 x 50 ㎖ | 15, c15, c25, 30 | 15,000 / 25,910 | $2,378 |
| Fixed Angle Rotor | GRF-B-85-6 | 6 x 85 ㎖ | 15, c15, c25, 30, 50, c50 | 12,000 / 16,019 | $2,191 |
| Fixed Angle Rotor | GRF-B-c15-12 | 12 x 15 ㎖ conical | 5 ㎖ with adapters | 15,000 / 25,910 | $2,653 |
| Fixed Angle Rotor | GRF-B-c50-8 | 8 x 50 ㎖ conical | c15, c25, 30, 50 | 13,000 / 20,784 | $2,603 |
| Fixed Angle Rotor | GRF-B-m2.0-48 | 48 x 1.5 / 2.0 ㎖ | 0.2 / 0.5 ㎖ with adapters | 16,000 / 27,991 | $1,598 |
| Fixed Angle Rotor | GRF-B-m5.0-20 | 20 x 5.0 ㎖ | — | 13,500 / 22,209 | $1,598 |
| Swing-out Rotor | GRS-B-100-6 | — | GLBB-b100-100 / GLB-dc50-100 / GLB-15-8-100 / GLBB-bd15-100 / GLBB-bdc15-100 | — | $986 |
| Swing-out Rotor | GRS-B-1000-4 | — | GLB-h1000-1000 / GLBB-b1000-1000 / GLBB-br1000-1000 | — | $1,386 |
| Swing-out Rotor | GRS-B-250-4 | — | GLB-250-250 | — | $1,100 |

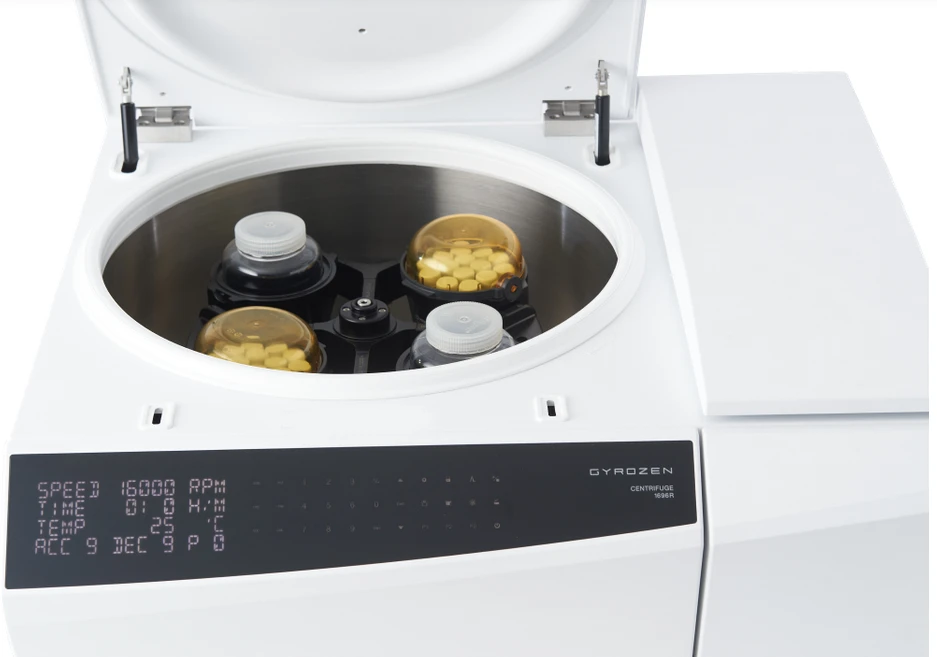

| Swing-out Rotor | GRS-B-750-4 | — | GLBB-b750-750B / GLBB-mw-750B | — | $1,386 |
| Swing-out Rotor | GRS-B-r750-4 | — | GLB-r750-r750 / GLP-mw-r750(D) | — | $1,386 |
All rotors sold separately. Contact us at +1 305 600 0444 for configuration assistance.
